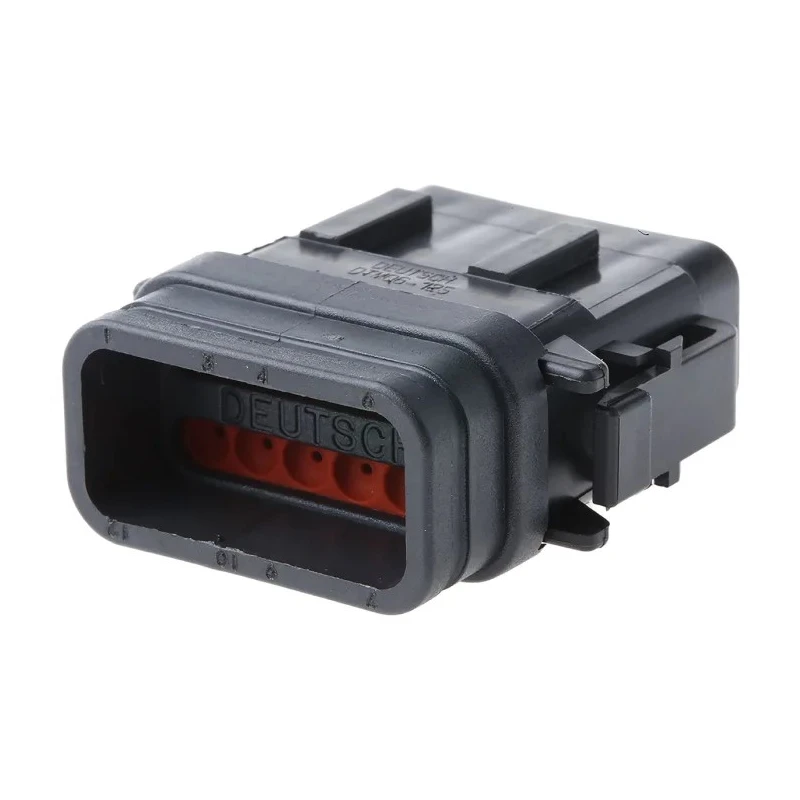

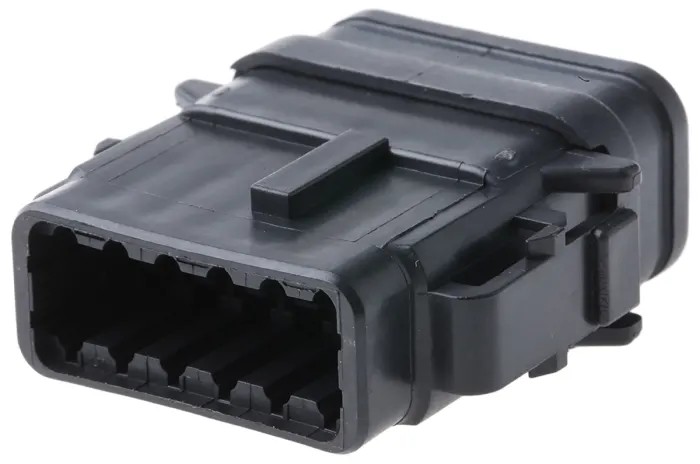

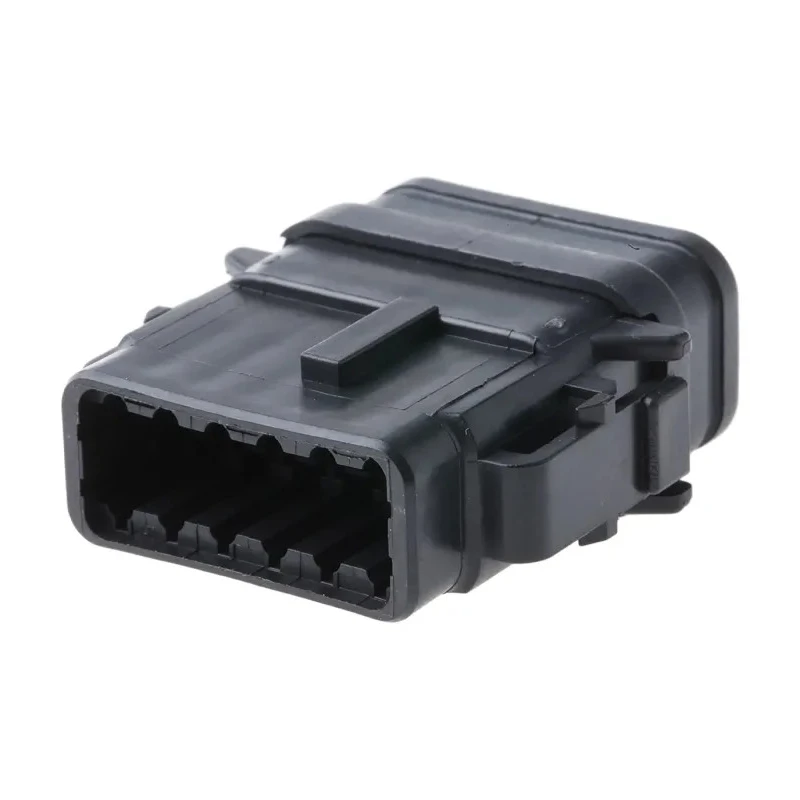

Deutsch DTM Automotive Connector Male Black Panel Mount 12 Contact Crimp Termination DTM06-12SB-E007
Specifications
| Country of Origin | Mexico |
|---|---|
| Brand | Deutsch |
| Colour | Black |
| Current | 7.5A |
| Height | 20.22mm |
| Operating Temperature Range | -55 → +125 °C |
| Model | DTM06-12SB-E007 |
| Depth | 43.69mm |
| IP Rating | IP68, IP6K9K |
| Width | 40.01mm |
| Gender | Male |
| Mount Type | Panel |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Series | DTM |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Standards/Approvals | ISO/CD 11783-2, J1939 |
| Contact Plating | Nickel |
| Number of Contacts | 12 |
Key Features
- Designed for harsh environmental conditions with IP68 and IP6K9K ratings.
- Constructed with a rugged thermoplastic housing and nickel-plated copper alloy contacts.
- Operates efficiently in temperature ranges from minus 55 to 125 degrees Celsius.
- Features tactile and audible mating to ensure secure connections.
- Supports a maximum current rating of 7.5 amps per contact.
- Includes B-keyed connector design to prevent mis-mating.
- Suitable for panel mounting with 2 rows of 12 contacts total.
- Conforms to standards ISO/CD 11783-2 and J1939.
Product Description
The Deutsch DTM06-12SB-E007 automotive connector is a 12-contact male panel mount connector designed for demanding automotive and industrial applications requiring rugged and reliable connections.
The connector features a durable thermoplastic housing resistant to harsh environmental effects and corrosion resistant nickel-plated copper alloy contacts that withstand high current loads up to 7.5 A. Its design supports tactile and audible mating, providing secure contact engagement while preventing accidental disconnections.
This connector is rated for extreme operating temperatures ranging from -55°C to +125°C, suitable for engine compartments, transmission tunnels, and harsh climate conditions. The B-keyed configuration ensures proper orientation and prevents mismating with other connector series.
Black thermoplastic housing provides mechanical strength and environmental protection. Contact plating of nickel enhances corrosion resistance and conductivity. IP68 and IP6K9K ingress protection ratings guarantee dirt and water resistance.
Allows hand insertion and removal of contacts for easy assembly and maintenance. Complies with industry standards including ISO/CD 11783-2 and J1939 for automotive electrical systems.
The compact dimensions (40.01 mm width, 20.22 mm height, 43.69 mm depth) make it ideal for space-constrained panel applications. Manufactured in Mexico, it ensures high-quality assurance with durability in challenging conditions.
Deutsch's DTM series connectors are ideally used in transport, industrial machinery, agricultural equipment, and other harsh environment electrical systems requiring reliable power and signal connections.
Explore more from the Automotive Electrical Connector category at EnvMart for compatible connectors and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum current rating of 7.5 amps per contact.
The dimensions are 40.01 mm in width, 20.22 mm in height, and 43.69 mm in depth.
It operates efficiently in temperature ranges from -55°C to +125°C.
This unit features crimp termination for secure connections.
It has IP68 and IP6K9K ratings, ensuring protection against dust and water.
This model includes a total of 12 contacts arranged in 2 rows.
It is constructed with a thermoplastic housing and nickel-plated copper alloy contacts.
It conforms to ISO/CD 11783-2 and J1939 standards for automotive electrical systems.
The B-keyed design prevents mis-mating with other connector series, ensuring proper orientation.
Yes, it is designed for panel mounting applications.
This connector is manufactured in Mexico.
It is ideal for transport, industrial machinery, and agricultural equipment in harsh environments.
