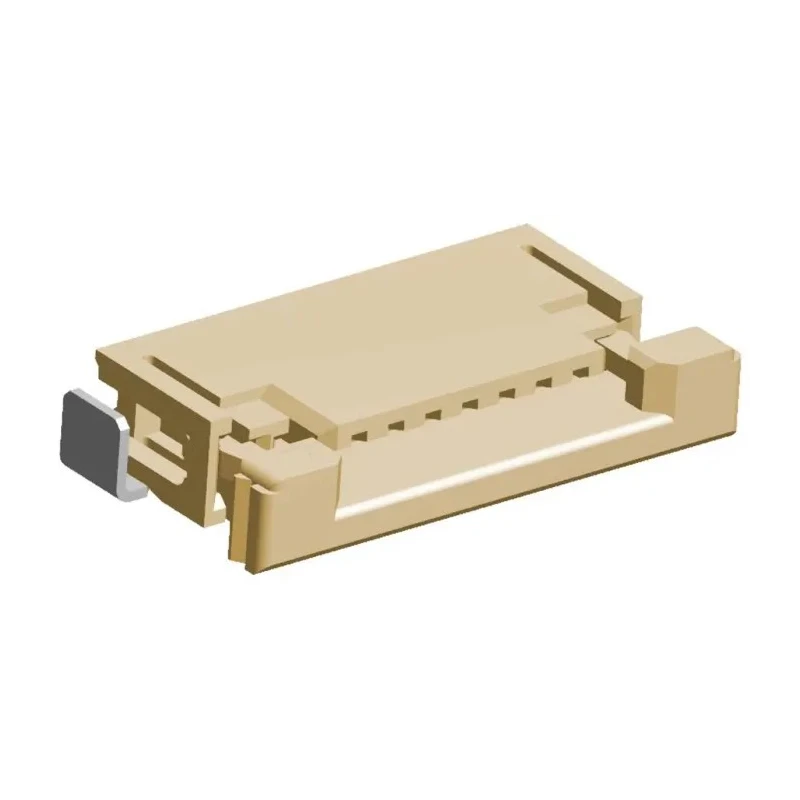

Molex 1 mm Pitch 7 Way Right Angle Female FPC Connector, Solder 52207-0760

Molex 52207-0760 is a 1 mm pitch 7 way right angle female FPC connector, designed for surface mount (SMT) solder termination providing a robust and space-saving connection solution.

This connector features a slide type actuator that ensures a zero insertion force (ZIF) design which aids in secure and easy FPC cable insertion and retention. The right angle orientation with top contacts facilitates compact PCB layout in various electronic assemblies.

The contacts are made of phosphor bronze and plated with gold over nickel to enhance electrical conductivity and protect against corrosion. The nylon housing adds mechanical strength and insulation.

Electrical ratings include a voltage of 125 volts and a current rating of 1 amp, suitable for many low power electronic applications. It operates reliably within a temperature range of -20°C to 85°C, meeting demanding environmental conditions.

This connector series includes solder tabs for secure PCB retention and strain relief which enhances durability in applications involving vibration or mechanical stress. 7 female contacts with phosphor bronze material for strength and conductivity.

Slide type actuator provides easy insertion and secure FPC connection. Right angle orientation with top contacts for optimal PCB layout. Gold over nickel plating offers corrosion resistance and reliable conductivity. Nylon housing ensures mechanical durability and insulation.

Operates in temperatures from -20°C to 85°C for industrial reliability. Solder termination with strain relief tabs for robust mounting on PCB.

This Molex 52207-0760 connector is ideal for use in automotive navigation systems, digital cameras, mobile phones, medical devices, and consumer electronics where space optimization and reliable signal integrity are critical.
