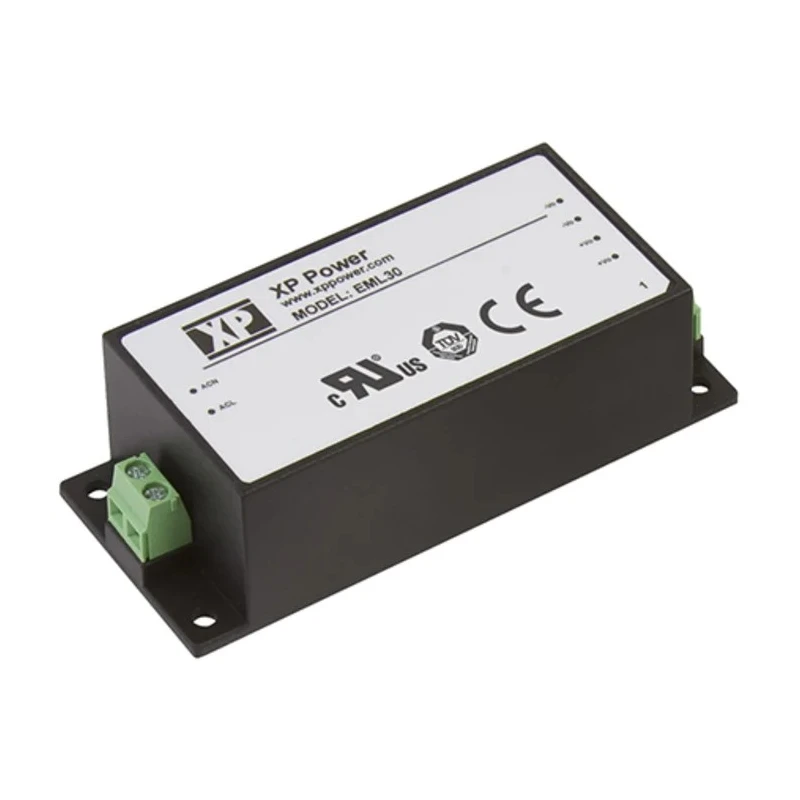

XP Power Switching Power Supply 5V 30W Chassis Mount Medical Grade EML30US05-S
Specifications
| Country of Origin | China |
|---|---|
| Brand | XP Power |
| Power | 30W |
| Efficiency | 88% |
| Length | 96mm |
| Model | EML30US05-S |
| Depth | 28.5mm |
| Gross Weight | 170g |
| Width | 40mm |
| Mount Type | Chassis |
| Series | EML |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -20°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 264V |
| Maximum Output Voltage | 5V |
| SMPS Output Current | 6A |
| Minimum Input Voltage | 85V ac |
Key Features
- Single output power supply with 5V maximum output voltage.
- 6A output current supporting a peak load capacity.
- Chassis mount type suitable for secure installation.
- Operates efficiently with 88% efficiency and medical standard compliance.
- Wide operating temperature range from -20°C to 70°C.
- Designed with Class II insulation for safety.
- Compliance with EN 60601-1/A12, ANSI/AAMI ES 60601-1, IEC 60601-1 medical safety standards.
- Supports input voltage range from 85V AC to 264V AC.
Product Description
XP Power EML30US05-S switching power supply is a compact and reliable 30W single output power supply unit. With a maximum output voltage of 5V and 6A output current, this chassis mount power supply is designed mainly for medical applications requiring compliance with rigorous international medical safety standards such as EN 60601-1/A12, ANSI/AAMI ES 60601-1, and IEC 60601-1.
The unit operates within a wide input voltage range of 85V to 264V AC, ensuring flexibility for diverse industrial and commercial uses. Its design features Class II insulation techniques, making it safe and suitable for medical environments needing electromagnetic emission control, as it meets conducted and radiated emissions Class B requirements.
Operating efficiently with an 88% efficiency rating, it works reliably in ambient temperatures ranging from -20°C to 70°C. The compact chassis mount form factor with dimensions of 96mm length, 40mm width, and 28.5mm depth allows for easy integration into control panels or embedded systems.
This power supply series by XP Power offers a peak load capability of 130% for 30 seconds, providing robust performance under transient conditions commonly experienced in medical and industrial environments.
Single output with 5V max voltage and 6A current. Medical safety standard approvals ensured. Wide input voltage compatibility from 85V to 264V AC. Chassis mount mechanical form factor. Compact size facilitates space-saving applications.
Reliable operation from -20°C to +70°C ambient temperature. High efficiency at 88% supports energy conservation. Peak load handling capability enhances durability. Country of origin: China.
This XP Power EML30US05-S switching power supply is suitable for industrial, medical equipment, laboratory instrumentation, and other critical applications requiring safe, efficient, and stable DC power conversion. For more reliable power supply solutions and to explore additional XP Power products, browse the relevant category on EnvMart.
Explore more products in our Switching Power Supplies category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output voltage of this power supply is 5V.
This model has an output current rating of 6A.
It operates with an efficiency rating of 88%.
The power supply supports an input voltage range from 85V AC to 264V AC.
The dimensions are 96mm in length, 40mm in width, and 28.5mm in depth.
It operates efficiently within a temperature range of -20°C to 70°C.
This model utilizes a chassis mount type for secure installation.
Yes, it complies with EN 60601-1/A12, ANSI/AAMI ES 60601-1, and IEC 60601-1 medical safety standards.
It has a peak load capability of 130% for 30 seconds.
The gross weight of this power supply is 170g.
It is suitable for industrial, medical equipment, laboratory instrumentation, and other critical applications requiring stable DC power.
The country of origin for this power supply is China.
