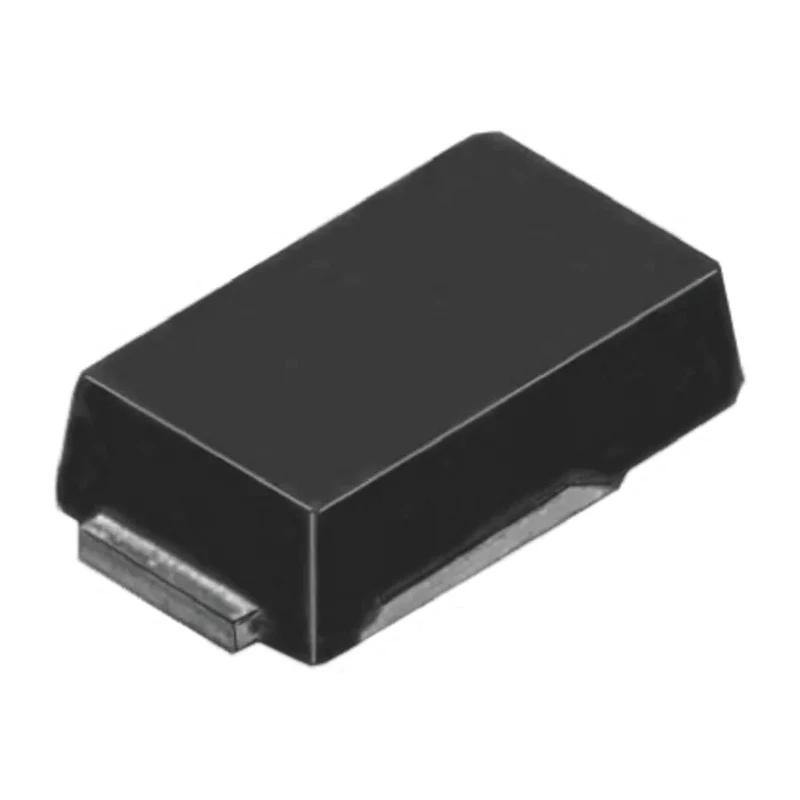

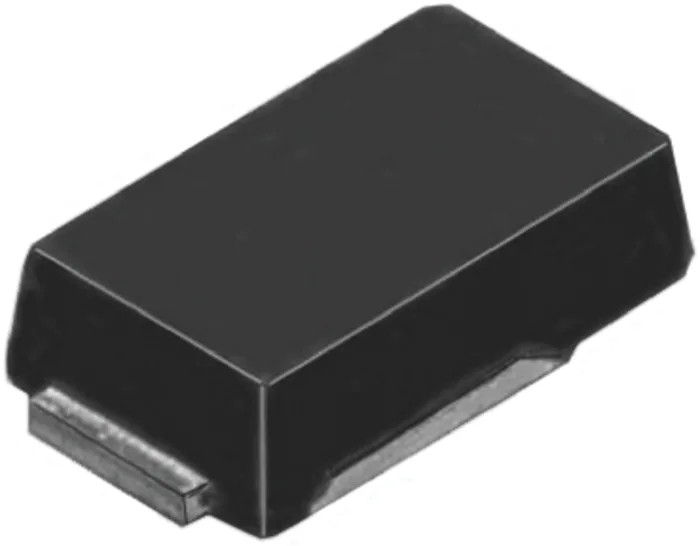

Vishay Switching Diode, Single Silicon Junction 1 A 400 V 250ns Peak Reverse Recovery Time SMP RS1PG-M3/84A

Name: Vishay Switching Diode, Single Silicon Junction 1 A 400 V 250ns Peak Reverse Recovery Time SMP RS1PG-M3/84A
Brand: Vishay
SKU: 217947
Price: 0.27 USD
Availability: InStock



Category Switching Diode Brand Vishay Condition New

Specifications

Country of Origin	China
Brand	Vishay
Height	1.15mm
Length	3.61mm
Model	RS1PG-M3/84A
Width	2.18mm
Mount Type	Surface
Maximum Operating Temperature	150°C
Package Type	SMP
Sub Type	Silicon Junction
Minimum Operating Temperature	-55°C
Pin Count	2
Diode Configuration	Single
Peak Non-Repetitive Forward Surge Current Ifsm	30A
Maximum Forward Voltage Vf	1.3V
Peak Reverse Recovery Time trr	250ns
Maximum Forward Current If	1A
Maximum Peak Reverse Repetitive Voltage Vrrm	400V

Key Features

Designed for fast recovery with a peak reverse recovery time of 250 nanoseconds.
Compact surface mount package with dimensions 3.61 mm length, 2.18 mm width, and 1.15 mm height.
Operates reliably between -55°C and 150°C temperature range.
Supports a peak non-repetitive forward surge current of 30 A for transient conditions.
Maximum forward voltage drop of 1.3 V ensuring efficient conduction.
Provides robust switching performance suitable for industrial and electronic applications.
Manufactured in China under Vishay brand quality standards.
Package contains a single diode with 2 pins for surface mount assembly.

Product Description

Vishay RS1PG-M3/84A switching diode is a single silicon junction diode designed for fast recovery applications. Rated at 1 ampere forward current and 400 volts peak reverse voltage, this diode is housed in an SMP surface mount package measuring 3.61 mm by 2.18 mm by 1.15 mm, making it ideal for compact electronic assembly.

The diode features a low peak reverse recovery time of 250 nanoseconds, which contributes to efficient switching and reduced power loss. Its maximum forward voltage drop of 1.3 volts provides excellent conduction characteristics, suitable for rectification and switching circuits.

With operating temperature ranging from -55°C to 150°C, it can withstand harsh industrial and environmental conditions, supporting reliable performance in power management and control systems. The diode also supports a peak non-repetitive forward surge current of 30 amps, ensuring durability during transient switch events.

This component is engineered as a fast recovery rectifier diode and is well-suited for use in electronics manufacturing, industrial automation, and power supply design. Its 2-pin SMP package type supports efficient surface mounting processes, enhancing production efficiency.

Fast recovery time enhances switching efficiency and reduces heat generation. Compact surface mount design suitable for high-density PCB layouts. Wide operating temperature range for diverse industrial applications. High surge current capability for transient load resilience.

Reliable forward voltage drop characteristics for efficient power usage. Ideal for applications in power supplies, inverter circuits, and motor drives. Meets the needs of electronic components, power and connectors sectors.
