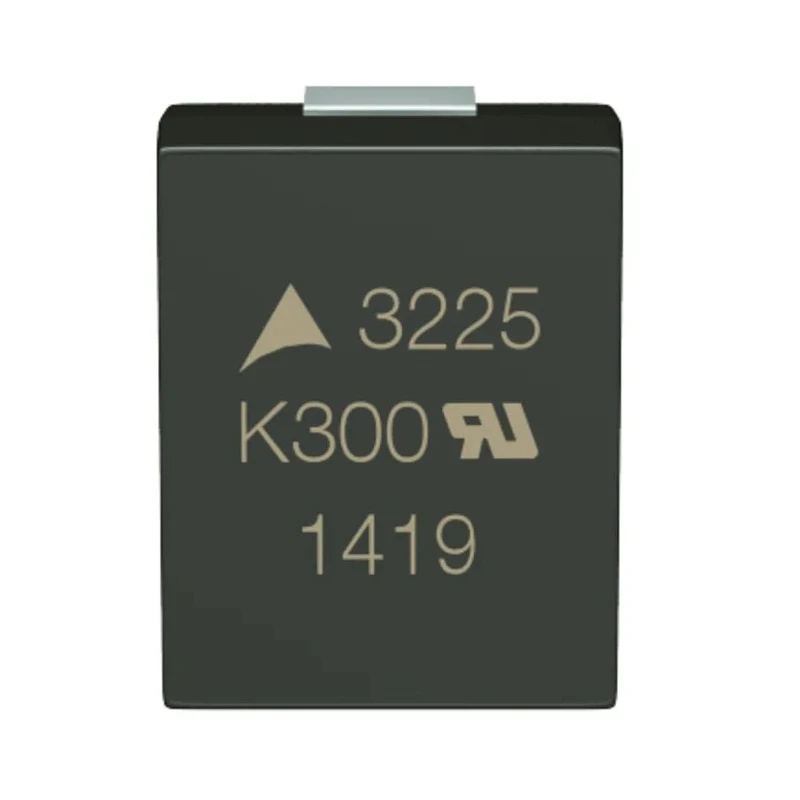

TDK Standard 1.75nF Ceramic Surface Mount Varistor 18V Clamping Voltage 775V, Clamping Current 36A B72650M0110K072
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Material | Ceramic |
| THICKNESS | 4.5mm |
| Length | 8mm |
| Model | B72650M0110K072 |
| Depth | 6.3mm |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | Standard |
| Energy Rating | 23J |
| Maximum Operating Temperature | 85°C |
| Capacitance | 1.75nF |
| Minimum Operating Temperature | -40°C |
| Maximum dc Voltage | 385V dc |
| Standards/Approvals | UL, RoHS, CSA |
| Package/Case | 1210 |
| Termination Style | Tinned Copper Alloy |
| Maximum AC Voltage | 11V ac |
| Clamping Voltage VC | 775V |
| Clamping Current | 36A |
| Maximum Surge Current | 100A |
| Varistor Voltage | 18 V |
Key Features
- Capacitance of 1.75nF ensures effective transient voltage suppression.
- Clamping voltage of 775V allows protection in high voltage surge conditions.
- Clamping current rating of 36A supports moderate surge currents safely.
- Surface mount package type 1210 facilitates automated PCB assembly.
- Constructed from flame-retardant ceramic material for durability and safety.
- Operating temperature range from -40°C to 85°C suits diverse environments.
- RoHS, UL, and CSA compliant ensuring worldwide regulatory adherence.
- Energy rating of 23J supports energy absorption during surge events.
Product Description
TDK B72650M0110K072 is a Standard Series surface mount varistor designed for reliable surge protection in electronic circuits. It features a capacitance of 1.75nF and a varistor voltage of 18V, making it suitable for transient voltage suppression in sensitive electronics.
With a clamping voltage of 775V and a clamping current capacity of 36A, this varistor is effective at protecting equipment from voltage spikes and surges. The 1210 package size with ceramic construction provides robust and flame-retardant protection while maintaining a compact footprint for surface mounting on PCBs.
The varistor is terminated with tinned copper alloy, ensuring excellent solderability and mechanical stability. It operates across a temperature range from -40°C to 85°C, making it versatile for industrial, commercial, and consumer electronic applications.
It conforms to UL, RoHS, and CSA standards for quality and environmental compliance. With an energy rating of 23J, it can absorb moderate surge energies, making it ideal for use in surge protection components, power connectors, and various electronic assemblies.
Capacitance of 1.75nF ensures effective transient voltage suppression. Clamping voltage of 775V allows protection in high voltage surge conditions. Clamping current rating of 36A supports moderate surge currents safely. Surface mount package type 1210 facilitates automated PCB assembly.
Constructed from flame-retardant ceramic material for durability and safety. Operating temperature range from -40°C to 85°C suits diverse environments. RoHS, UL, and CSA compliant ensuring worldwide regulatory adherence.
Energy rating of 23J supports energy absorption during surge events. Tinned copper alloy termination style improves solderability and connectivity. Designed for applications in electronic components and surge protection circuits.
This Varistor is commonly used in industrial electronics, power supply units, telecommunications, consumer electronics, and automotive electronic protection circuits. The tape & reel packaging facilitates high-volume, automated manufacturing processes.
Explore additional electronic components and surge protection parts on EnvMart for optimal integration in your design and manufacturing projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance of this model is 1.75nF, which ensures effective transient voltage suppression.
The clamping voltage of this varistor is 775V, allowing it to protect against high voltage surge conditions.
This unit has a clamping current rating of 36A, which supports moderate surge currents safely.
It has an energy rating of 23J, which supports energy absorption during surge events.
The dimensions of this varistor are 8mm in length, 6.3mm in depth, and 4.5mm in thickness.
This varistor operates within a temperature range of -40°C to 85°C, making it suitable for diverse environments.
It is packaged in tape and reel format, facilitating high-volume, automated manufacturing processes.
This model is constructed from ceramic material, which is flame-retardant for added safety.
It complies with UL, RoHS, and CSA standards, ensuring adherence to worldwide regulatory requirements.
The maximum DC voltage for this model is 385V.
It features a tinned copper alloy termination style, which improves solderability and mechanical stability.
This varistor is commonly used in industrial electronics, power supply units, telecommunications, consumer electronics, and automotive electronic protection circuits.
