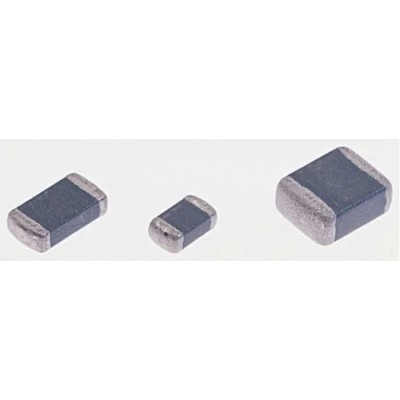

KYOCERA AVX VC Varistor 1 A Clamping 12 V Surface Mount Ceramic Multilayer ZnO Suppressor VC080503A100DP

Free Delivery in India | Lowest Global Shipping Charges

KYOCERA AVX VC Varistor 1 A Clamping 12 V Surface Mount Ceramic Multilayer ZnO Suppressor VC080503A100DP

Name: KYOCERA AVX VC Varistor 1 A Clamping 12 V Surface Mount Ceramic Multilayer ZnO Suppressor VC080503A100DP
Brand: KYOCERA AVX
SKU: 187892
Price: 0.19 USD
Availability: InStock



Category Varistor Brand KYOCERA AVX Condition New

Specifications

Country of Origin	India
Brand	KYOCERA AVX
Material	Ceramic
Height	1.02mm
Length	2.01mm
Model	VC080503A100DP
Depth	1.25mm
Mount Type	Surface
Series	VC
Energy Rating	0.1J
Maximum Operating Temperature	125°C
Maximum dc Voltage	3.3V dc
Maximum AC Voltage	2.3V ac
Clamping Voltage VC	12V
Clamping Current	1A
Maximum Surge Current	40A

Key Features

Clamping voltage of 12 volts provides effective overvoltage protection.
Capable of handling a maximum surge current of 40 A.
Compact dimensions of 2.01 mm length, 1.25 mm depth, and 1.02 mm height for space-saving SMT applications.
Constructed from ceramic material ensuring durability and reliable performance.
Maximum operating temperature of 125°C suitable for high-temperature environments.
Designed as part of the VC series with copper clad steel solder-coated leads.
Energy rating of 0.1 joule for transient energy absorption.
Complies with no specific automotive standards or approvals.

Product Description

KYOCERA AVX VC080503A100DP is a high-performance VC series varistor designed to provide transient voltage suppression in electronic circuits. With a clamping voltage of 12 V and clamping current of 1 A, this surface mount varistor is ideal for protecting sensitive components from voltage spikes and surges. Its multilayer ZnO ceramic composition ensures effective suppression with fast response times.

The device features compact dimensions, measuring just 2.01 mm in length, 1.02 mm in height, and 1.25 mm in depth, making it suitable for space-constrained PCB layouts and SMT manufacturing processes. It can withstand surge currents up to 40 A and operates reliably at temperatures up to 125°C, offering robustness in demanding industrial and consumer electronics applications.

Manufactured using copper-clad steel with a solder-coated lead finish, the varistor ensures excellent solderability and mechanical stability. Its 0.1 J energy rating allows it to absorb short transient energy effectively, contributing to circuit longevity.

Clamping voltage of 12 V ensures effective surge protection. Handles maximum surge current of 40 A for transient robustness. Compact surface mount design for modern PCB applications. Ceramic multilayer ZnO suppressor material ensures durability and performance.

Maximum operating temperature rated at 125°C for high thermal tolerance. Part of the reliable VC series from KYOCERA AVX. Copper clad steel solder coated leads enhance solder joint strength and reliability. Energy absorption rating of 0.1 J supports transient spike mitigation.

Applicable in electronics, power supply, automotive, and industrial surge suppression.

This Varistor is optimally used in industrial electronics protection, power distribution circuits, consumer electronic devices, and automotive electronics. Its compact SMT package facilitates automated assembly and integration into high-density circuit designs.

Explore a wide range of KYOCERA AVX surge protection components at EnvMart for efficient and reliable transient voltage suppression solutions.
