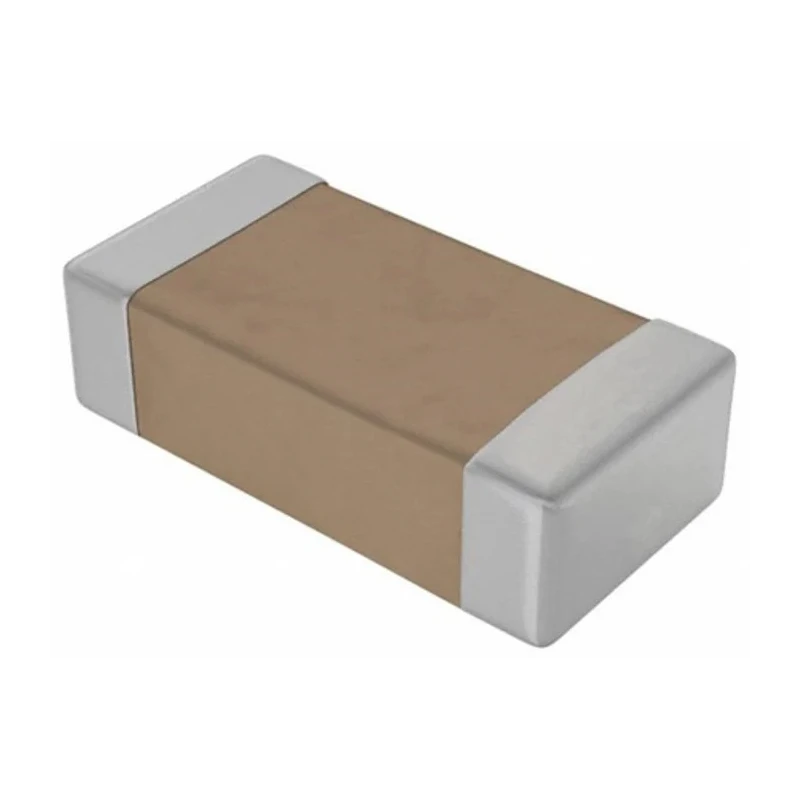

KYOCERA AVX 1 nF 100V dc ±1% Multilayer Ceramic Capacitor Surface Mount 12061A102FAT2A

KYOCERA AVX 12061A102FAT2A is a high-quality 1 nF Multilayer Ceramic Capacitor designed for surface mount technology applications. It offers a nominal voltage rating of 100V dc with a tight tolerance of ±1%, making it ideal for precision circuits requiring stable capacitance.

The capacitor is built with a C0G (NPO) dielectric, classified as Class I, which provides one of the most stable capacitor dielectrics available, ensuring very low capacitance change with temperature (0 ±30ppm/°C). This results in capacitance variation less than ±0.3% from -55°C to +125°C, suitable for industrial and automotive environments.

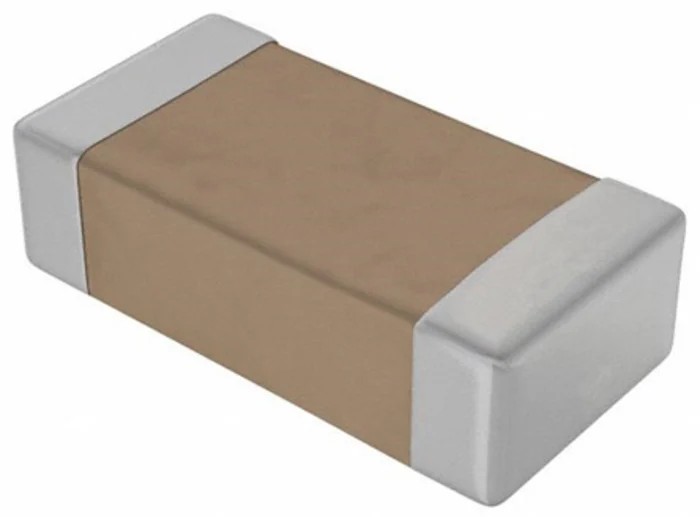

The package type is 1206, featuring dimensions of 3.2mm length, 1.6mm width, and 0.94mm height, compatible with automated surface mount assembly processes. Its termination type is surface mount, and packaging on reels supports efficient manufacturing workflows.

This product belongs to the KGM series by AVX, which is known for consistent quality and reliability. The capacitor is designed to operate reliably within a temperature range of -55°C to 125°C. Although it does not hold specific automotive standards, its robust specifications make it suitable for various electronic applications including industrial controls, instrumentation, and telecommunications.

Class I C0G capacitors like this are essential in circuits where capacitance stability and low losses are paramount. This product suits a range of uses including precision filtering, timing circuits, and resonant circuits in industrial, laboratory, and commercial electronic equipment.

Package includes the capacitor on a reel, facilitating high-speed SMT assembly processes. KYOCERA AVX capacitors are known for their quality and performance in electronic component applications.

Capacitance value of 1 nF suitable for precision electronics. Voltage rating of 100V dc ensures reliable operation under DC conditions. C0G dielectric provides high stability and low losses. Package size is 1206, compatible with standard surface mount technology.

Temperature tolerance from -55°C to 125°C for wide operating conditions. Class I suppression for minimal capacitance variation over temperature. Surface mount termination type enables automated assembly. Packaging on reel facilitates high volume manufacturing.

Height, length, and width dimensions are 0.94mm, 3.2mm, and 1.6mm respectively. Series KGM denotes the specific family of AVX capacitors with C0G dielectric. Explore more high-quality Multilayer Ceramic Capacitors and advanced electronic components on EnvMart to meet your industrial and commercial requirements.
