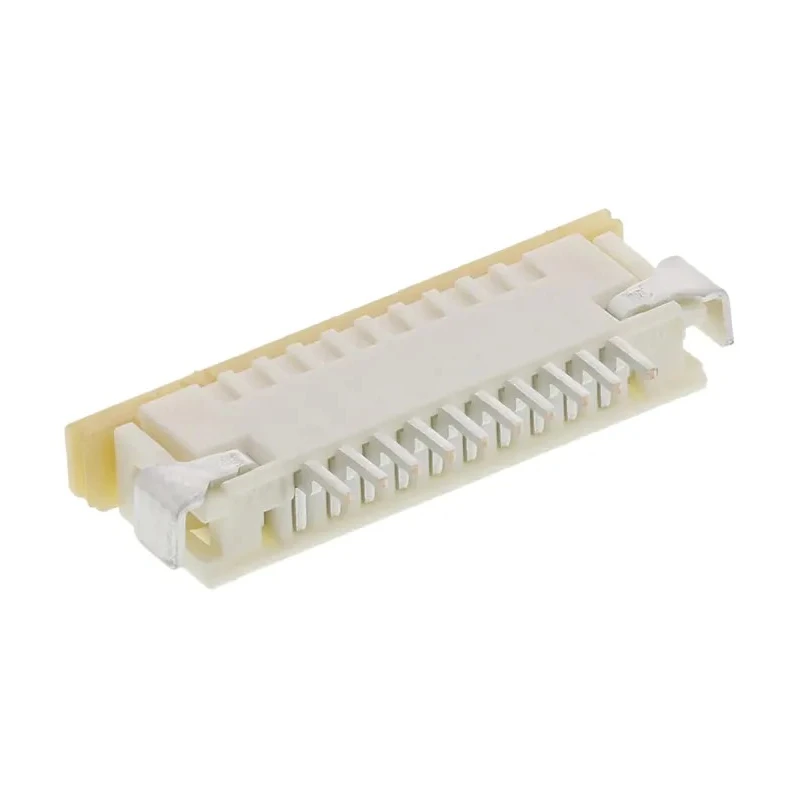

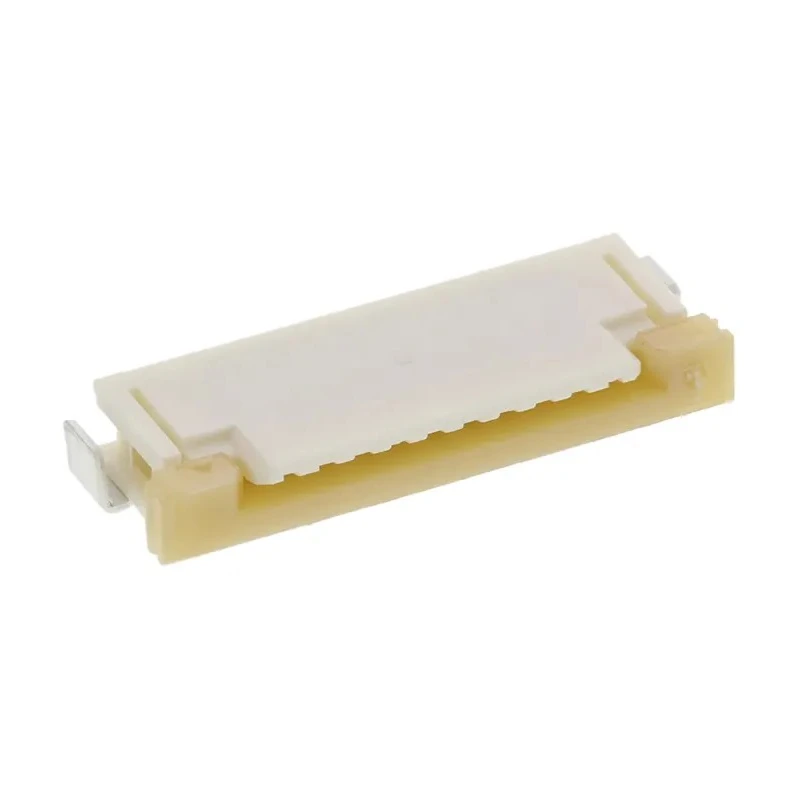

Molex 1 mm Pitch 10 Way Right Angle Female FPC Connector, Solder 52207-1060

The Molex brand model 52207-1060 is a 1 mm pitch 10 way right angle female FPC connector designed for secure and reliable electronic connections. It supports solder termination and has surface mount capability, providing great flexibility for PCB assembly.

This Easy-On FPC connector series features a slide type actuator that allows Zero Insertion Force (ZIF), reducing wear and enhancing reliability across repeated cycles. The connector contacts are made from phosphor bronze with gold plating over nickel ensuring high conductivity and corrosion resistance while the housing is manufactured from nylon for durability and insulating properties. The right angle orientation and solder tabs offer stable PCB retention and strain relief.

Operating voltage is rated at 125 V with a current carrying capacity of 1 A, suitable for a wide range of low power electronics applications. It includes a locking mechanism to maintain secure connections under vibration or mechanical stress. The product supports operation within temperature ranges from -30°C to 85°C.

This connector is suitable for integration in automotive electronics such as navigation and audio systems, consumer products including digital cameras and mobile phones, medical devices like patient monitors, and telecommunications equipment. It enables space-saving and efficient circuit layouts in constrained packaging environments.

Space saving 1 mm pitch design with 10 contacts. Right angle female connector with top contact position. Solder termination and surface mount type for PCB mounting. Durable nylon housing with phosphor bronze contacts plated gold over nickel.

Zero Insertion Force slide actuator for easy FPC insertion and secure contact retention. Locking mechanism for reliable connections under stress. Voltage 125 V and current rating 1 A. Operating temperature range from -30°C to 85°C.

Ideal for automotive, consumer, medical, and telecom applications. Secure PCB retention and strain relief with solder tabs. Explore more FPC Connectors by Molex and other electronics components available on EnvMart for your industrial and commercial applications.
