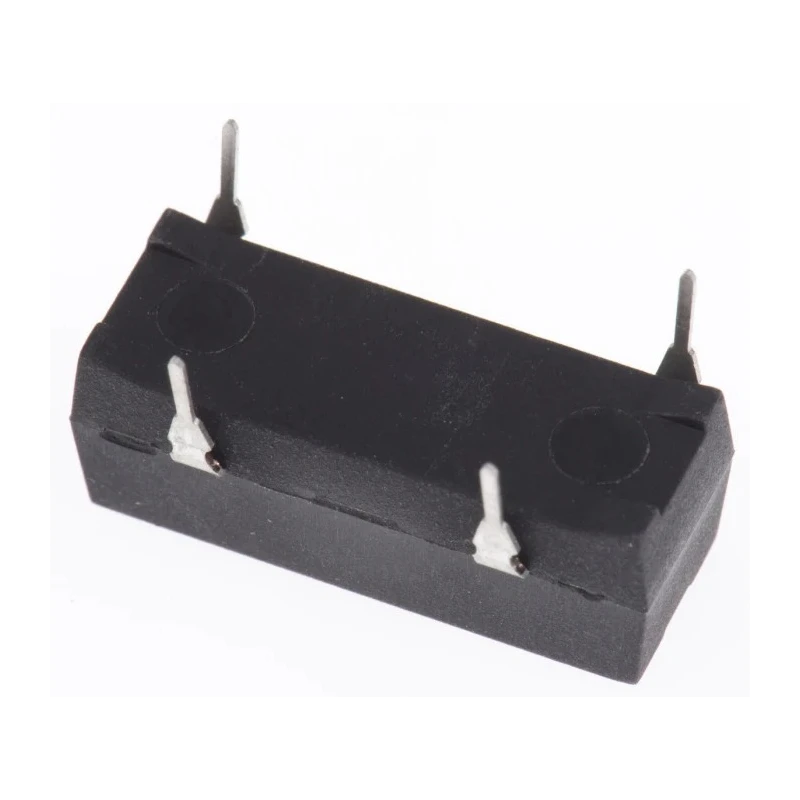

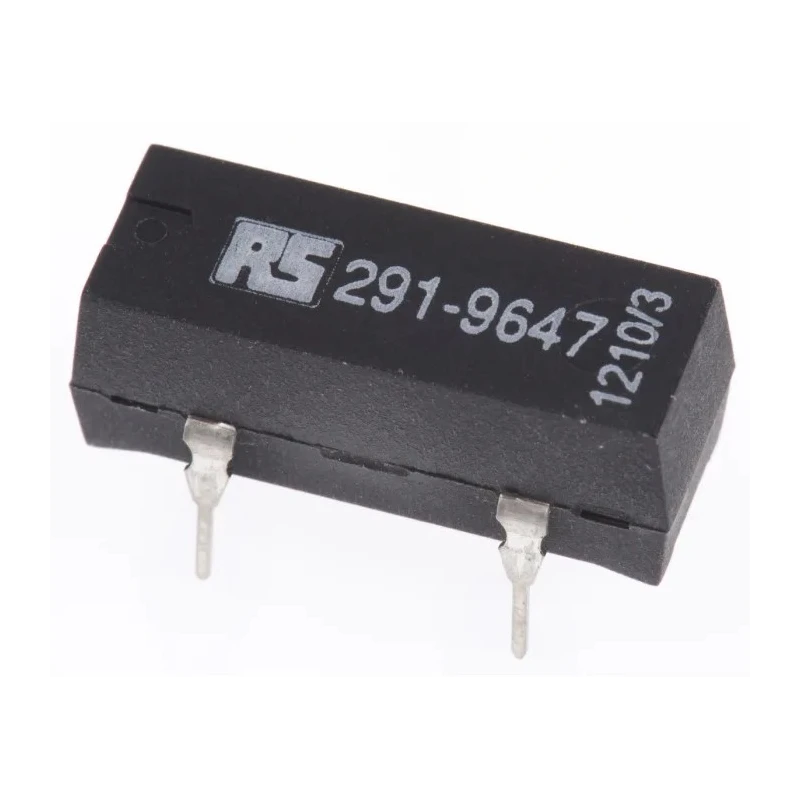

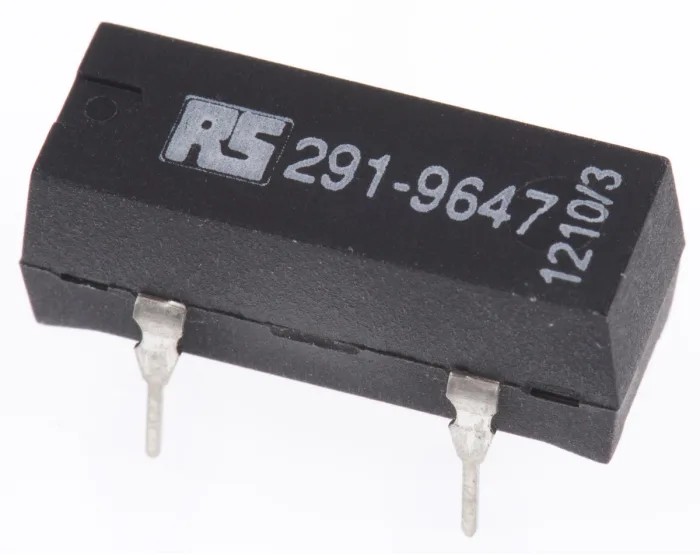

RS PRO PCB Reed Relay, 24V DC Coil, SPNO Contact, 300V DC Max, 0.5A Max, 2150 Ω 291-9647

RS PRO 291-9647 PCB Reed Relay is engineered for reliable electromagnetic switching with a 24V DC coil voltage and SPNO contact arrangement, effectively suitable for industrial and electronics applications requiring high precision and durability.

This fast-acting reed relay offers an operating time of just 2 ms including bounce time, minimizing delay in switching circuits. Its tin-plated copper alloy contacts ensure durability by resisting corrosion while maintaining excellent conductivity.

The component is designed to integrate seamlessly onto printed circuit boards with a height of 7.5 mm, length of 19.3 mm, and a depth of 7 mm, using industry-standard through-hole solder pin terminals for secure mounting.

It sustains operation within a wide temperature range from -20°C up to +70°C, making it adaptable to diverse industrial and laboratory settings. The relay features an isolation voltage of 2.5 kV coil to contact, providing strong protection against electrical interference and enhancing reliability.

The device supports maximum switching parameters of 0.5 A current and 15 W power, accommodating various low-power switching needs in automation, signal conditioning, and control engineering contexts.

Engineered and manufactured to meet high standards, this reed relay is RoHS compliant and originates from Germany, underscoring premium quality and environmental responsibility. Equipped with a coil power of 290 mW for efficient operation.

Features a coil resistance of 2150 ohms ensuring stability. Provides low contact resistance of 200 milliohms for reliable signal transmission. Designed with a length of 19.3 mm and height of 7.5 mm for compact PCB integration.

Operates within a temperature range of -20°C to +70°C to withstand various environments. Delivers a rapid operating time of 2 ms including bounce time for swift response. Utilizes tin-plated copper alloy contacts to prevent corrosion and prolong relay life.

Offers isolation voltage of 2.5 kV between coil and contacts ensuring safety. Constructed for through-hole PCB mounting using solder pin terminals. Supports a maximum switching current of 0.5 A and power handling up to 15 W.

This RS PRO Reed Relay is ideal for use in industrial automation, control circuits, signal conditioning, and electronic equipment where precise, low-power switching is critical. Its compact size and reliable performance make it suitable for both prototype and production printed circuit board assemblies.
