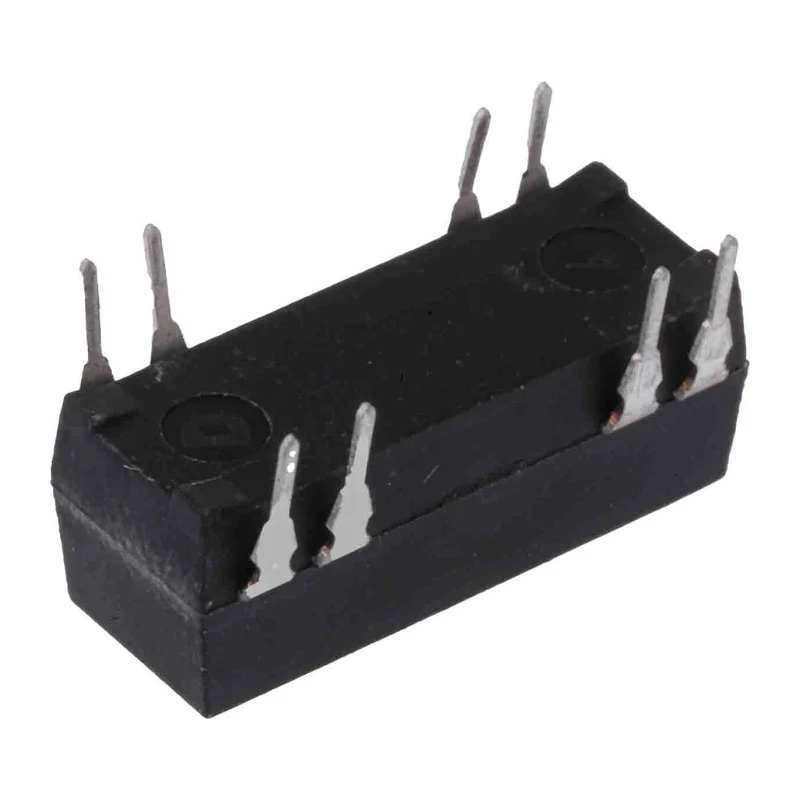

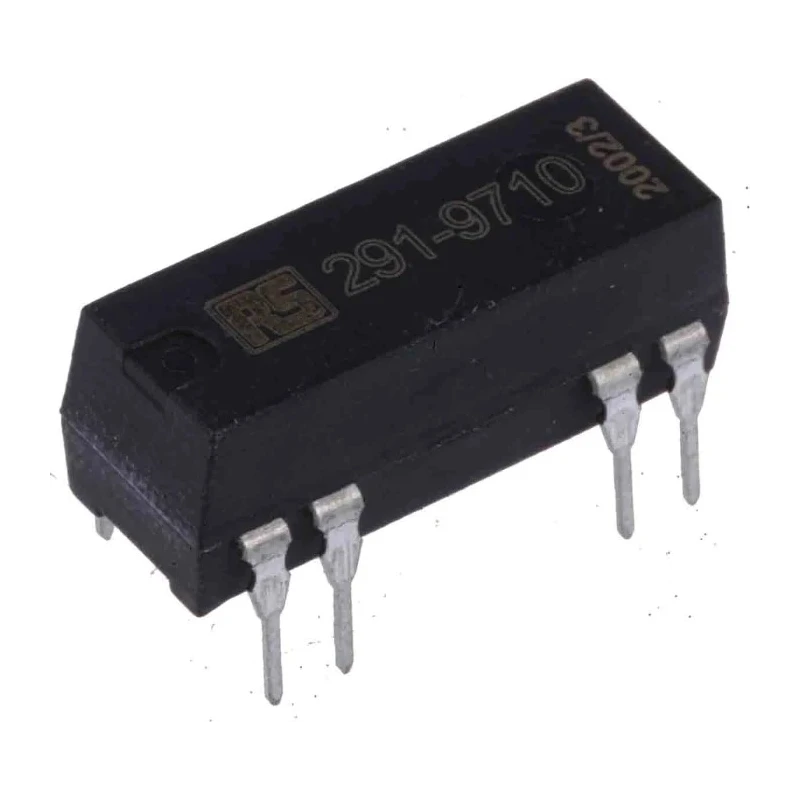

RS PRO PCB Reed Relay, 5V DC Coil, SPST Contact Configuration, 200V DC Max, 1A Max, 500Ω Coil Resistance 291-9710

RS PRO 291-9710 PCB Reed Relay is a high-quality electrical component designed for PCB-based applications requiring reliable and fast switching. Featuring a 5V DC coil voltage and SPST contact configuration, this relay supports switching currents up to 1A AC/DC and a maximum switching voltage of 200V DC, making it suitable for a wide range of electronic circuits.

The relay boasts a compact form factor with dimensions of 19.3 mm length by 6.4 mm width and 5.1 mm height, facilitating low-profile PCB mounting. Its mineral-filled casing along with copper alloy pins provide enhanced durability and electrical performance. The coil resistance of 500 Ω consumes minimal power at 50 mW, optimizing efficiency.

This model features a fast operating time of 0.5 milliseconds and a coil to contact isolation voltage rating of 1.5 kV DC, ensuring electrical isolation and preventing interference. Contact resistance is maintained at 200 mΩ to guarantee stable switching reliability. The relay’s operating temperature range of -20°C to +70°C enables use in diverse environmental conditions.

The relay is supplied with through-hole terminals and includes a coil suppression diode across pins two and six for added protection, making it suitable for sensitive electronic applications. Manufactured in Germany, the RS PRO 291-9710 meets stringent industry safety standards including UL approval.

Typical industrial applications include electronics manufacturing, automation controls, signal conditioning, and electrical switching in commercial and laboratory devices. Its performance and reliability make it a preferred choice for engineers and technicians requiring compact and efficient PCB reed relays.

The relay has a compact, low-profile design with dimensions of 19.3 mm length and 5.1 mm height. Coil power consumption is 50 mW ensuring low power draw. Contact resistance is 200 mΩ for high switching reliability. Operating temperature range is from -20°C to +70°C for versatile use.

Through-hole terminals and mineral-filled casing enhance durability. Fast operating time of 0.5 ms allows rapid switching. Isolation voltage between coil and contact is 1.5 kV DC. Includes a coil suppression diode for coil protection and longevity.
