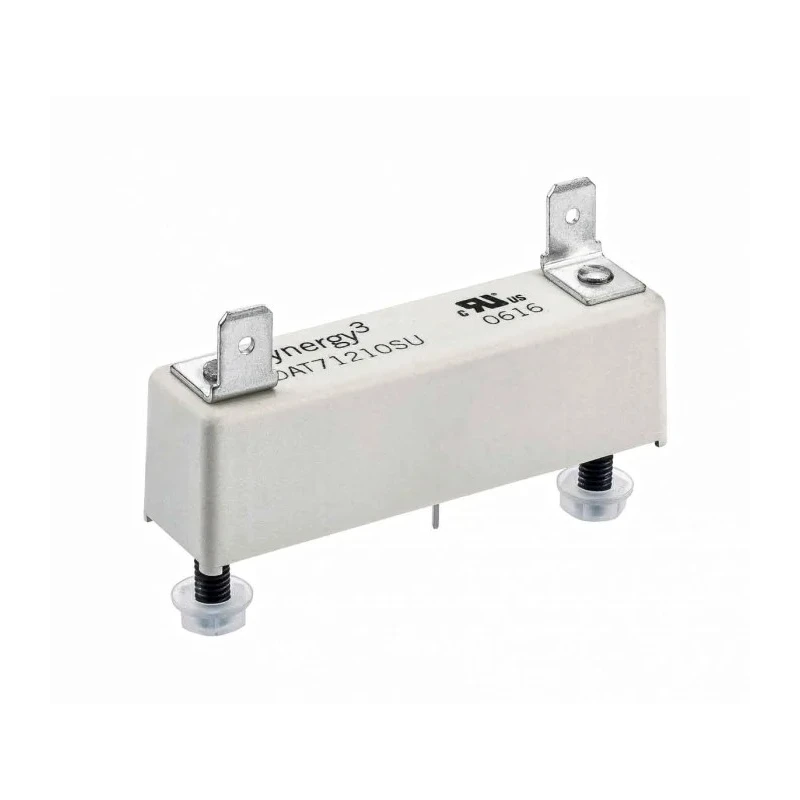

Cynergy3 PCB Reed Relay, 24V DC Coil, SPST Contact, 7000V DC Maximum, 2A Maximum, 780 Ω Coil Resistance
Specifications
| Country of Origin | China |
|---|---|
| Brand | Cynergy3 |
| Height | 18.5mm |
| Length | 60mm |
| Model | Cynergy3 |
| Operating Time | 3ms |
| Mount Type | PCB |
| Series | DAT |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -20°C |
| Terminal type | Stud Fixing |
| Contact Resistance | 250mΩ |
| Standards/Approvals | UL |
| Coil Resistance | 780Ω |
| Coil Power | 50W |
| Switching Power | 50W |
| Isolation Coil To Contact | 17kV |
Key Features
- High isolation voltage up to 17kV ensures excellent electrical separation.
- Quick operating time of 3 milliseconds for fast switching performance.
- Designed for PCB mount with stud fixing terminal type.
- Operating temperature range from -20°C to 70°C enables versatility in environments.
- Low contact resistance of 250 milliohms improves signal fidelity.
- Coil power and switching power rated at 50W for robust applications.
- UL Standard approved ensuring compliance with quality and safety standards.
- Non-latching relay with high vacuum reed switch contacts for reliability.
Product Description
Cynergy3 DAT72475SU PCB Reed Relay is an industrial-grade electrical relay designed for high-reliability applications requiring excellent isolation and fast response. It features a 24V DC coil with a Single Pole Single Throw (SPST) contact configuration, suitable for precise switching needs in Electronics and Electrical automation.
The relay achieves a maximum coil-to-contact isolation voltage of 17kV and a maximum DC switching voltage of 7000V. With a maximum current carrying capacity of 2A, and coil resistance of 780 Ω, it supports switching power and coil power ratings of 50W each. The low contact resistance of 250 milliohms ensures minimal power loss and high signal integrity.
Operating time is rapid at 3 milliseconds, making it optimal for applications requiring quick actuation. The relay is designed for PCB mounting via stud fixing terminals, with compact dimensions measuring 60mm in length and 18.5mm in height, facilitating integration into dense electronic assemblies.
Operating temperature range from -20°C to 70°C allows use in various demanding environments. It complies with UL standards confirming its build quality and safety. The relay utilizes high vacuum reed switch contacts, available with Rhodium or Tungsten contacts, offering excellent AC characteristics and durability for demanding tasks.
These relays are particularly suitable for high reliability industrial, medical devices like cardiac defibrillators, high voltage power supplies, test equipment, and automated instrumentation. Choice of contact materials (Rhodium or Tungsten) allows application-specific optimization for contact resistance or switching higher voltages.
High isolation voltage up to 17kV ensures excellent electrical separation. Quick operating time of 3 milliseconds for fast switching performance. Designed for PCB mount with stud fixing terminal type. Operating temperature range from -20°C to 70°C enables versatility in environments.
Low contact resistance of 250 milliohms improves signal fidelity. Coil power and switching power rated at 50W for robust applications. Compact dimensions of 60mm length and 18.5mm height. UL standard approved ensuring compliance with quality and safety.
Non-latching, high vacuum reed contact design for reliability. Manufactured in China with consistent quality standards. Explore Cynergy3 relays for specialized industrial and automation needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum isolation voltage of this relay is 17kV, ensuring excellent electrical separation.
This model has an operating time of 3 milliseconds, allowing for fast switching performance.
It features a Single Pole Single Throw (SPST) contact configuration.
The coil resistance is 780 Ω.
The maximum current carrying capacity is 2A.
The relay measures 60mm in length and 18.5mm in height.
The operating temperature range is from -20°C to 70°C.
It is designed for PCB mounting with stud fixing terminals.
The contact resistance is 250 milliohms, which helps improve signal fidelity.
This relay is UL standard approved, ensuring compliance with quality and safety standards.
Both the coil power and switching power are rated at 50W.
This relay is suitable for high reliability industrial applications, including medical devices and automated instrumentation.
