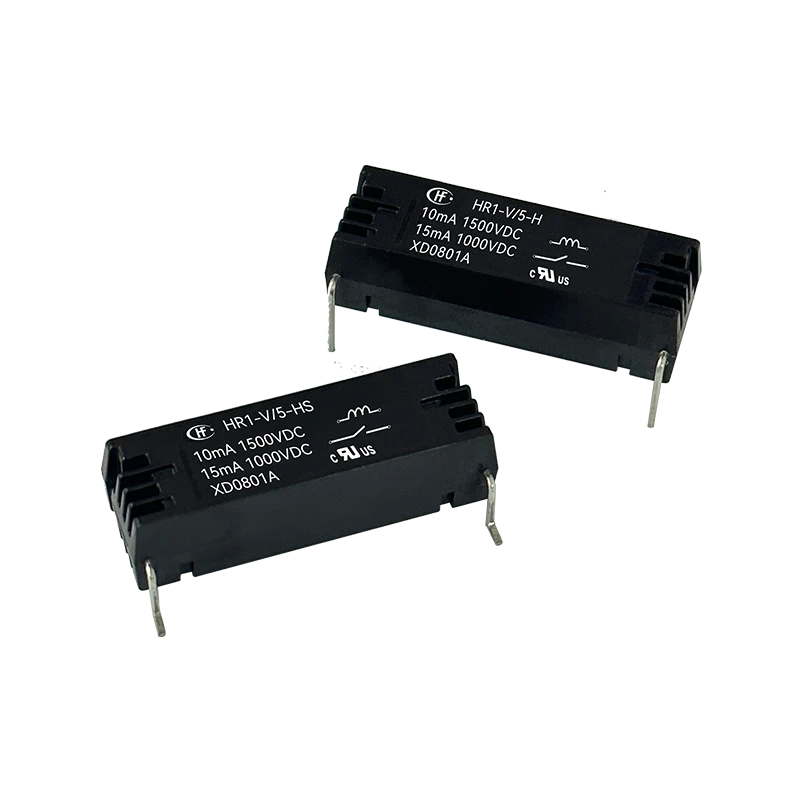

High-Voltage Reed Relay HR1-V

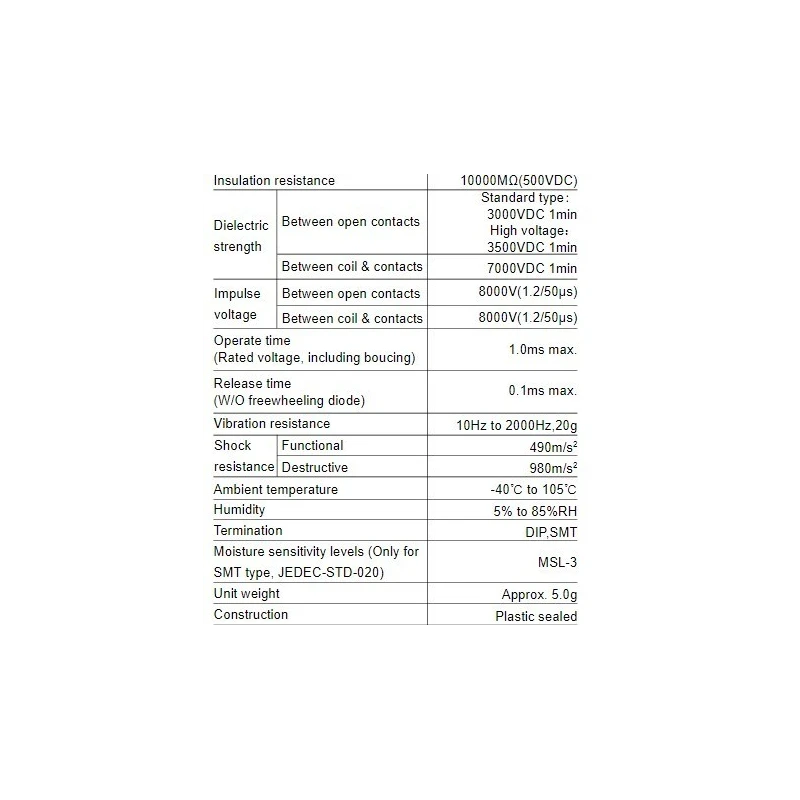

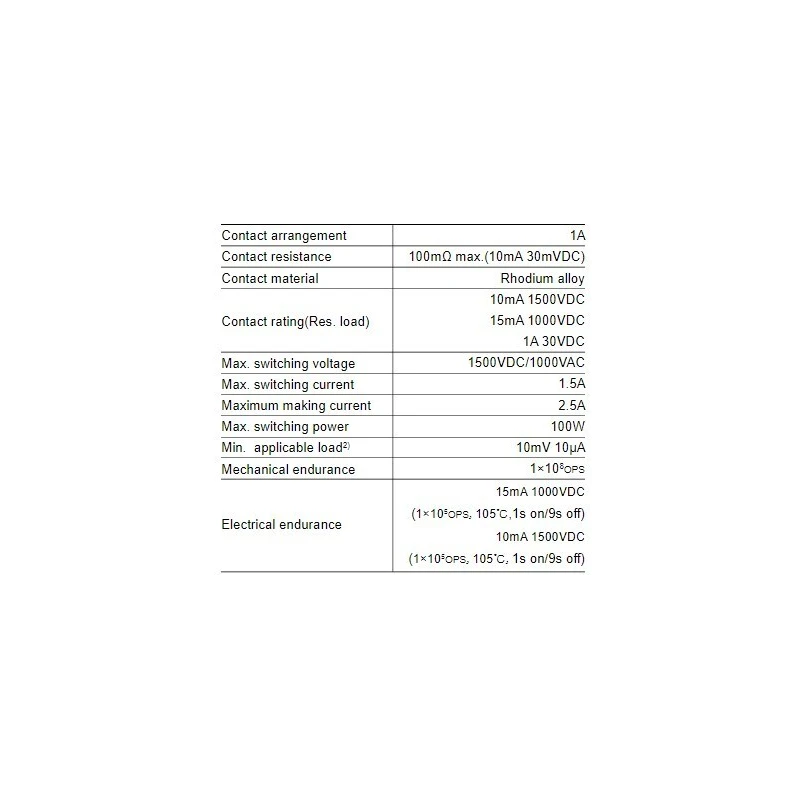

Specifications
| Humidity | 5% ~ 85% RH |
|---|---|
| Ambient Temperature (ºC) | -40 ºC to 70 ºC |
| Max. Switching Voltage (V) | 250VAC/30VDC |
| Contact arrangement | 1A |
Key Features
- High insulation with 800V reinforced insulation level
- SMT type available forconvenient installation
Product Description
High-Voltage Reed Relay, HR1-V are used for switching applications that require stable & low contact resistance, high insulation resistance, low capacitance, small size & long life. This relay is used to control single or more reed switches by using an electromagnet. A type of relay that operates one or equal to eight reed switches by using an electromagnetic coil is called a reed relay
- UL insulation system: Class F
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching voltage for this relay is 250VAC or 30VDC.
The ambient temperature range for the HR1-V is from -40 ºC to 70 ºC.
This relay can operate in humidity levels ranging from 5% to 85% RH.
The contact arrangement for this model is 1A.
It is available in an SMT type for convenient installation.
This relay can control one or up to eight reed switches using an electromagnetic coil.
It features an 800V reinforced insulation level.
It is used for switching applications that require stable and low contact resistance, high insulation resistance, and low capacitance.
The specific dimensions and weight are not provided in the specifications.
The relay is designed for long life, but specific lifespan details are not provided.
The relay is designed with a UL insulation system classified as Class F, but other certifications are not specified.
Key features include high insulation, low contact resistance, low capacitance, and small size.
