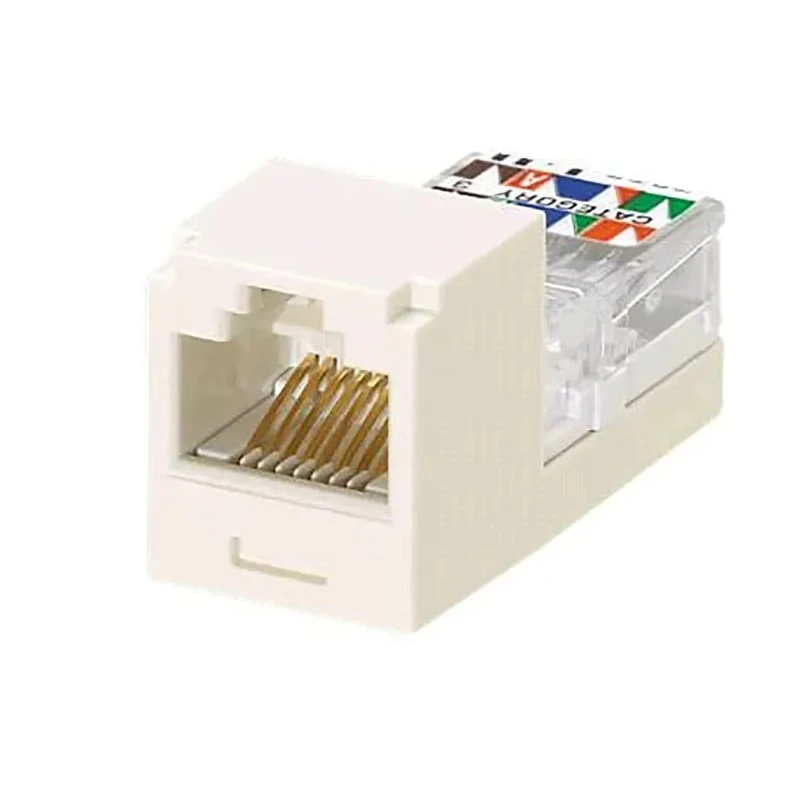

Panduit CJ Series RJ45 Connector Female Cable Cat5e Unshielded 1 Port
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panduit |
| Length | 34.8mm |
| Model | RJ45 |
| Depth | 34.8mm |
| Connector Type | Modular Jack |
| Width | 34.8mm |
| Mount Type | Cable |
| Contact Material | Phosphor Bronze |
| Series | CJ |
| Number Of Ports | 1 |
| Termination Type | Leadframe |
| Maximum Operating Temperature | 65°C |
| Minimum Operating Temperature | -10°C |
| Shield Type | Unshielded |
| Contact Plating | Gold |
| Connector Gender | Female |
| LAN Category | Cat5e |
| Ethernet Connector Type | RJ45 |
Key Features
- Supports Cat5e LAN category for fast and secure data transmission.
- Female modular jack with cable mount for flexible installation.
- Unshielded design suitable for standard networking applications.
- Quality phosphor bronze contacts with gold plating for enhanced conductivity.
- Compatible with single-wire cables from 20 AWG to 24 AWG.
- Leadframe termination for easy and efficient connection.
- Color-coded sheet placed on cap simplifies installation process.
- Operates within a temperature range of -10°C to 65°C.
Product Description
Panduit CJ Series RJ45 Connector Female Cable Cat5e Unshielded 1 Port, model CJ588IWY, offers robust and dependable connectivity for Ethernet networks in commercial and industrial environments. Designed by Panduit, this connector is engineered to deliver reliable performance for Cat5e applications where high transmission speeds and secure connections are essential.
The CJ588IWY connector features a female modular jack, allowing easy integration into cable installations. Its unshielded design is suited for standard LAN usage, including offices, data centers, and networking closets. The cable-mount configuration ensures flexibility during installation.
Quality and durability are central to this product's construction. Phosphor bronze contacts plated with gold provide low-contact resistance and exceptional conductivity, ensuring optimal signal integrity. The use of leadframe termination improves connection reliability and simplifies cable handling.
Installation is streamlined thanks to a color-coded sheet placed on the cap, making it simpler to match cables and minimize installation errors. The connector accepts single-wire cables ranging from 20 to 24 AWG, accommodating various cable types used in modern networks.
Designed for operation in challenging environments, the Panduit CJ588IWY works reliably within a temperature range of -10°C to 65°C. Its compact dimensions (34.8mm length, width, and depth) make it suitable for installations with space constraints.
Satisfying requirements across industrial, commercial, IT, and telecom sectors, this connector helps ensure high-performance network operation and compatibility with a wide array of Ethernet components.
Supports Cat5e LAN standard and transmission speeds up to 100 Mbps. Female RJ45 modular jack with cable mount for easy installation. Phosphor bronze contacts with gold plating enhance electrical performance. Leadframe termination simplifies cable connection and improves reliability.
Color-coded sheet facilitates accurate and error-free installation. Works with single-wire cables (20 AWG - 24 AWG). Compact and robust, ideal for professional networking setups. Operating temperature: -10°C to 65°C for wide environmental adaptability.
Typical applications include office networks, manufacturing facilities, telecom infrastructure, and IT server installations. The Panduit CJ Series is recognized for its quality, ease of use, and reliability under demanding conditions.
Browse more Ethernet Connector options from Panduit and explore the industrial networking components available on EnvMart to optimize your system’s performance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this connector is 65°C.
This model is compatible with single-wire cables ranging from 20 AWG to 24 AWG.
The length of this connector is 34.8mm.
It supports the Cat5e LAN category for data transmission.
The leadframe termination simplifies cable connection and improves reliability during installation.
The contacts are made of phosphor bronze, plated with gold for enhanced conductivity.
Both the width and depth of this connector are 34.8mm.
This connector utilizes a cable mount type for flexible installation.
The minimum operating temperature for this connector is -10°C.
Typical applications include office networks, manufacturing facilities, telecom infrastructure, and IT server installations.
The color-coded sheet placed on the cap simplifies the installation process by helping to match cables accurately, reducing installation errors.
It is a female modular jack designed for Ethernet connections.
