Panasonic PCB Force Guided Relay, 12V DC Coil Voltage, 4-Pole, 4 NO/4 NC SF4D12D

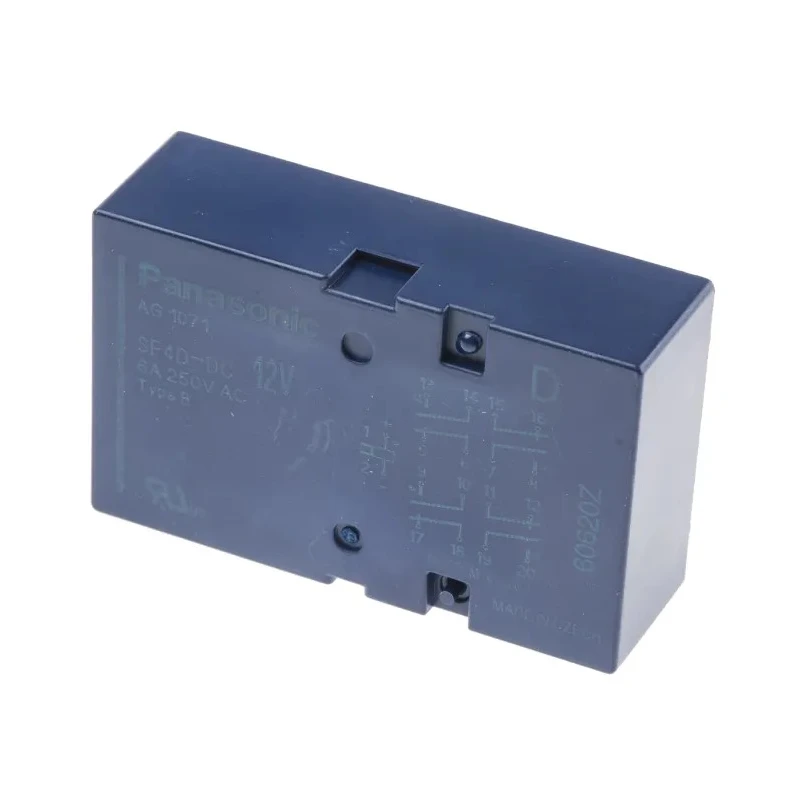

Panasonic SF4D12D PCB Force Guided Relay is a specialized polarized, monostable relay designed for PCB mounting with forcibly guided contacts. It operates with a 12V DC coil voltage, providing 4 poles with a contact configuration of 4 normally open (NO) and 4 normally closed (NC) contacts, making it ideal for safety and industrial automation applications.

This relay features a coil resistance of 288 ohms and low coil power consumption of 500mW, enhancing energy efficiency. It supports a maximum switching voltage of up to 400V, with a minimum switching voltage and current rating of 10V at 10mA, ensuring compatibility with a broad range of electrical loads.

The contacts are gold-plated to provide reliable electrical conductivity and minimize wear and resistance over time, enhancing long-term performance even in demanding environments. The relay is rated for operation within a temperature range from -40°C to 70°C, suitable for a wide variety of industrial, control, and automation systems.

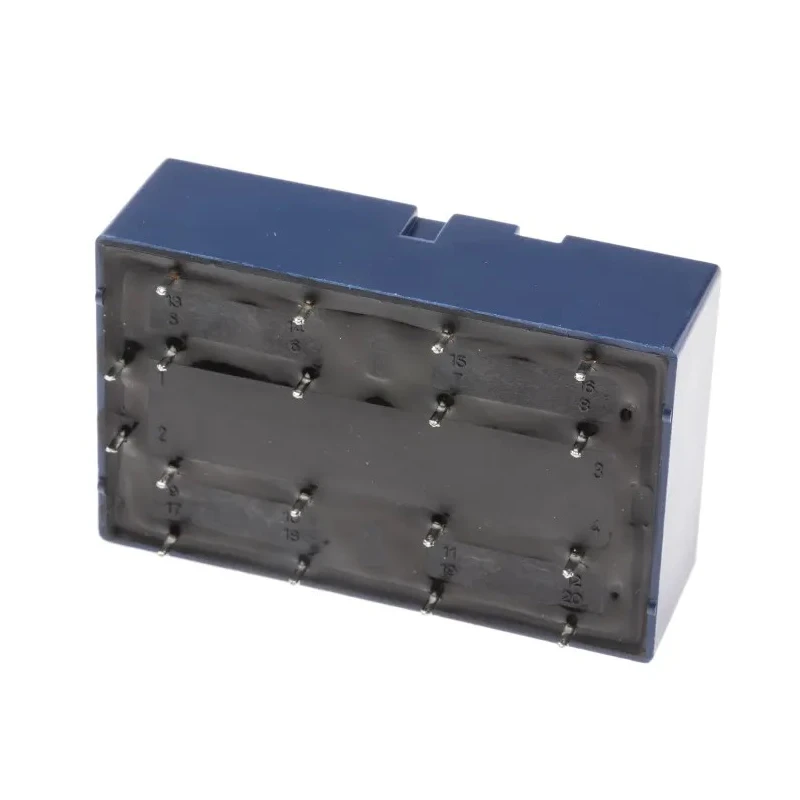

Designed with solder terminals, the relay mounts securely onto PCBs, guaranteeing stable electrical connections. Its compact physical dimensions of 53.3 mm length, 16.5 mm height, and 33 mm depth allow integration into dense electronic assemblies. The coil-to-contact isolation withstands 2.5 kVrms, protecting sensitive components through effective electrical separation.

With a maximum switching frequency of 10 Hz without load, the relay supports moderate-speed switching applications, balancing responsiveness with durability. This product is manufactured in the Czech Republic, reflecting high-quality engineering and manufacturing standards.

Polarized, monostable relay with forcibly guided contacts for safety compliance. Low power coil with 288Ω resistance and 500mW power consumption. Contact configuration of 4 NO and 4 NC contacts with gold plating for enhanced conductivity.

Operating temperature range from -40°C to 70°C accommodates various industrial environments. Solder terminal type for secure PCB mounting. Compact form factor: 53.3mm length, 16.5mm height, 33mm depth. Isolation coil-to-contact withstands 2.5kVrms ensuring electrical safety.

Maximum switching voltage of 400V and minimum switching voltage/current of 10V/10mA. Maximum switching frequency of 10 Hz without load.

This Panasonic Force Guided Relay is suitable for industrial automation, control systems, and safety-related electrical applications. Browse more relays and contactors from Panasonic and other trusted brands at EnvMart to find the optimal component for your control panel and automation projects.
