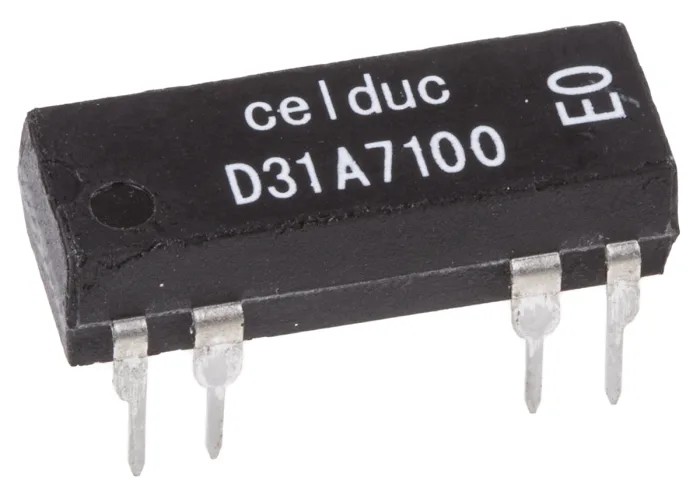

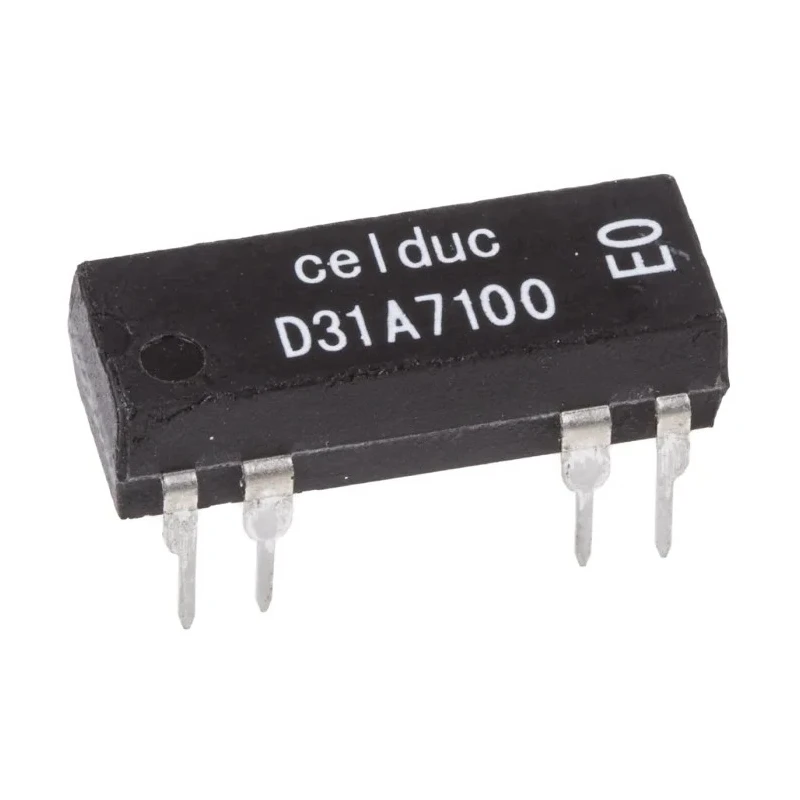

Celduc Reed Relay SPST 24V DC Coil 10W Power 2150Ω Resistance 100V DC Max 0.5A Max D31A7100
Specifications
| Country of Origin | France |
|---|---|
| Brand | Celduc |
| Height | 6.8mm |
| Length | 19.1mm |
| Model | D31A7100 |
| Operating Time | 1ms |
| Series | D31 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Terminal type | Solder |
| Contact Resistance | 150mΩ |
| Coil Resistance | 2150Ω |
| Coil Power | 10W |
| Isolation Coil To Contact | 1.4kV dc |
Key Features
- Coil power rating is 10 watts ensuring efficient operation.
- Coil resistance measures 2150 ohms for stable electrical characteristics.
- Maximum switching voltage of 100V DC and current up to 0.5 amperes.
- Compact design with dimensions of 19.1 mm length and 6.8 mm height.
- Operating temperature range from -40°C to 70°C suitable for varied environments.
- Isolation between coil and contact up to 1.4 kV DC providing electrical safety.
- Fast operating time of 1 millisecond for rapid switching applications.
- Non-latching relay type offering simple and reliable operation.
Product Description
Celduc D31A7100 Reed Relay is a high-quality single-pole single-throw (SPST) Reed Relay designed for precise and reliable switching in industrial and electronic control applications. Featuring a 24V DC coil with a power consumption of 10 watts and coil resistance of 2150 ohms, this relay is optimized for low power consumption while delivering effective signal switching.
The relay supports a maximum switching voltage of 100V DC and can handle currents up to 0.5 amperes, making it ideal for control circuits, automation systems, and instrumentation requiring small to moderate loads. Its over-moulded DIP package ensures robust mechanical protection and ease of PCB mounting via solder terminals.
With a compact profile of 19.1 mm length and 6.8 mm height, the Celduc D31A7100 fits in space-constrained applications while providing an excellent isolation voltage of 1.4 kV DC between coil and contact, improving system safety and performance. The device operates within a temperature range from -40°C to 70°C, suitable for industrial environments with temperature fluctuations.
The relay provides fast switching with an operating time of just 1 millisecond, beneficial in applications demanding rapid signal changes. It is a non-latching relay, simplifying control without the need for reset mechanisms.
Manufactured in France, the D31A7100 meets stringent quality requirements though it bears no specific certifications or approvals. It is a reliable choice for electronic controls, measurement instrumentation, HVAC automation, industrial machinery interfaces, and various signal conditioning systems.
Coil power rating of 10 watts ensures efficient operation. Coil resistance of 2150 ohms stabilizes coil electrical parameters. SPST contact configuration suitable for simple switching tasks. Solder terminal type facilitates secure PCB mounting.
High isolation voltage of 1.4 kV DC between coil and contacts. Operating temperature from -40°C to 70°C for durability in harsh conditions. Compact design with length 19.1 mm and height 6.8 mm. Non-latching relay provides straightforward on-off control.
Fast operating time of 1 ms for dynamic switching needs. Explore more precision relays and electrical components at EnvMart to find the suitable products for your industrial and electronic applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil power rating of this relay is 10 watts, ensuring efficient operation.
This model supports a maximum switching voltage of 100V DC and can handle currents up to 0.5 amperes.
The relay has a compact design with dimensions of 19.1 mm in length and 6.8 mm in height.
The coil resistance measures 2150 ohms, providing stable electrical characteristics.
The operating temperature range for this relay is from -40°C to 70°C, suitable for varied environments.
The D31A7100 is a non-latching single-pole single-throw (SPST) relay, providing straightforward on-off control.
This relay has a fast operating time of just 1 millisecond, making it suitable for rapid switching applications.
The relay features solder terminals, facilitating secure PCB mounting.
The isolation voltage between the coil and contact is up to 1.4 kV DC, providing improved electrical safety.
This relay is manufactured in France, adhering to stringent quality requirements.
The relay is suitable for control circuits, automation systems, instrumentation, and various signal conditioning systems.
The contact resistance of this relay is 150 mΩ, ensuring efficient signal transmission.
