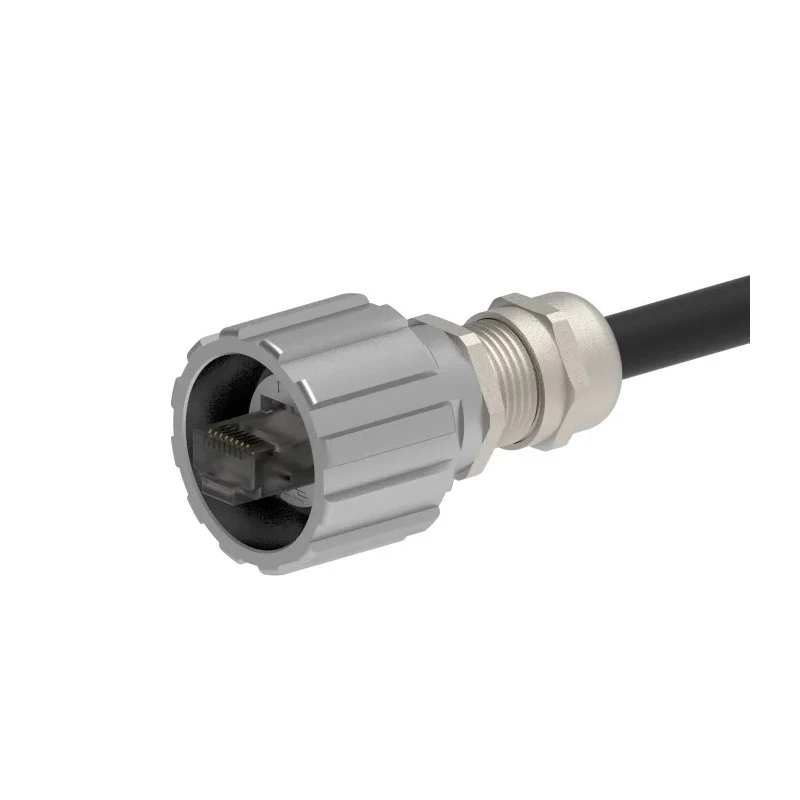

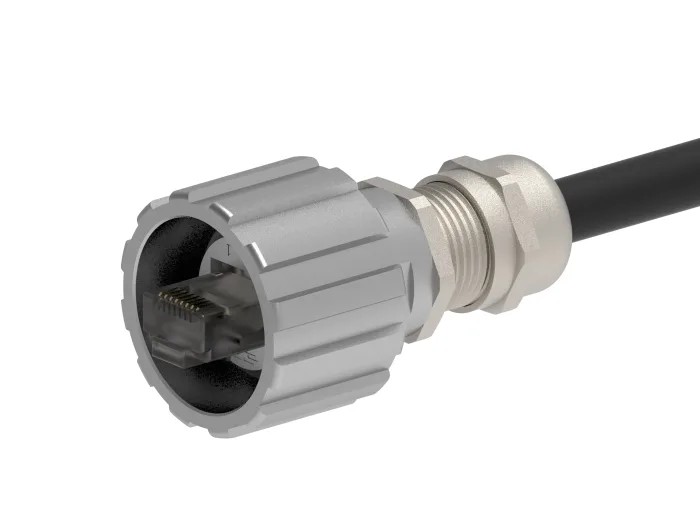

TE Connectivity 2362760 Series RJ45 Male Cable Connector Cat5e Shielded IP67 RJ45
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Model | RJ45 |
| IP Rating | IP67 |
| Mount Type | Cable |
| Contact Material | Phosphor Bronze |
| Series | 2362760 |
| Number Of Ports | 1 |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -40°C |
| Shield Type | Shielded |
| Standards/Approvals | UL NO. E81956, RoHS Compliant, EIA/TIA-568-B.2 Cat 5e specification |
| Contact Plating | Gold over Nickel |
| Connector Gender | Male |
| LAN Category | Cat5e |
| Ethernet Connector Type | RJ45 |
Key Features
- Compatible with Cat5e Ethernet cable category.
- Features single port RJ45 connector with male cable mount.
- Shielded design offers robust EMI and environmental protection.
- Rated for IP67 protection ensuring dust and water resistance.
- Contact material made of phosphor bronze with gold over nickel plating for corrosion resistance.
- Operating temperature range from -40°C to 80°C for versatile applications.
- Certified to UL and EIA/TIA-568-B.2 Cat5e standards with RoHS compliance.
- Double-bayonet locking mechanism for secure mating and mechanical reliability.
Product Description
TE Connectivity RJ45 2362760 Series male cable connector is designed for industrial and commercial Ethernet network applications requiring Cat5e cabling performance. This shielded RJ45 connector features a single-port male cable mount, providing a reliable Cat5e Ethernet connection with excellent environmental protection.
The connector carries an IP67 rating ensuring protection against dust ingress and water immersion, making it suitable for harsh indoor and outdoor environments. It supports operating temperatures from -40°C to 80°C, allowing usage in a wide range of environmental conditions.
Constructed with phosphor bronze contacts plated with gold over nickel, this connector offers superior electrical conductivity and corrosion resistance. The rugged housing is available in flame-resistant, glass-reinforced PBT plastic or die-cast nickel-plated zinc, both resistant to chemicals and UV exposure.
The double-bayonet locking system ensures secure mating and maintains an environmental seal, vital for industrial automation, manufacturing, HVAC, telecommunications, and water treatment industries.
Compatible with Cat5e Ethernet cable category. Features single port RJ45 connector with male cable mount. Shielded design offers robust EMI and environmental protection. Rated for IP67 protection ensuring dust and water resistance.
Contact material made of phosphor bronze with gold over nickel plating for corrosion resistance. Operating temperature range from -40°C to 80°C for versatile applications. Certified to UL and EIA/TIA-568-B.2 Cat5e standards with RoHS compliance.
Double-bayonet locking mechanism for secure mating and mechanical reliability. Rugged housing available in flame-resistant glass reinforced PBT or nickel-plated zinc die-cast. Suitable for harsh industrial environments requiring high durability and UV resistance.
This connector is ideal for Ethernet network installations requiring high reliability and environmental protection in industries such as industrial automation, manufacturing plants, HVAC systems, telecommunications infrastructure, and water treatment facilities. TE Connectivity offers a trusted solution for network cabling where ruggedization and secure connectivity are essential.
Explore the wide range of TE Connectivity connectors and the full category of Ethernet Connectors at EnvMart for robust networking solutions.
