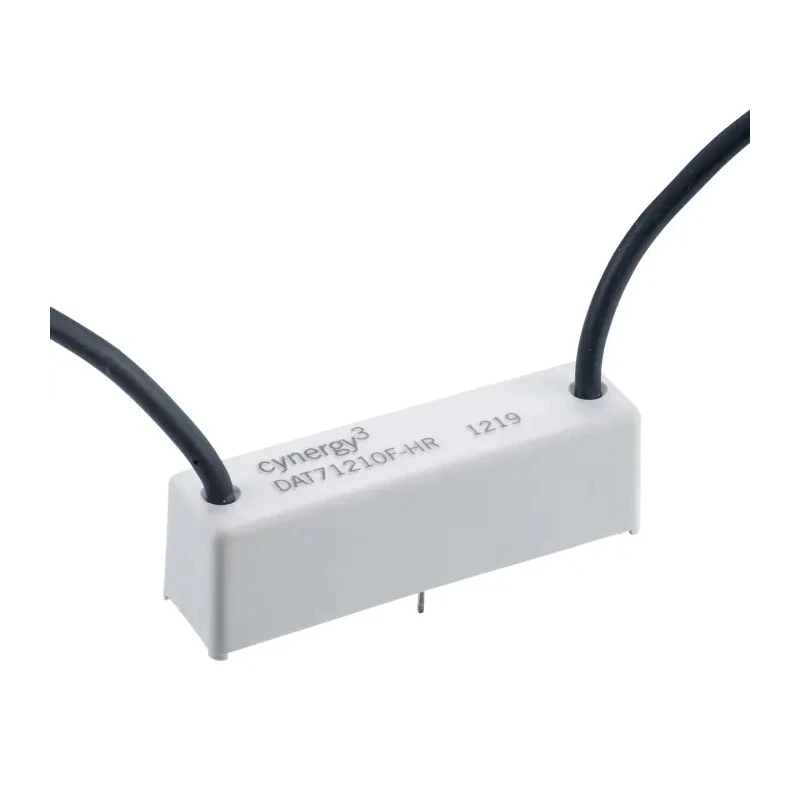

Cynergy3 PCB Reed Relay 5V DC Coil SPST, 10000V DC Max, 2A Max, 16 Ω
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Cynergy3 |
| Height | 18.5mm |
| Length | 60mm |
| Model | Cynergy3 |
| Operating Time | 3ms |
| Mount Type | PCB |
| Series | DAT |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -20°C |
| Contact Resistance | 250mΩ |
| Standards/Approvals | UL |
| Coil Resistance | 16Ω |
| Coil Power | 50W |
| Switching Power | 50W |
| Isolation Coil To Contact | 17kV |
Key Features
- SPST contact configuration ensures reliable switching performance.
- Supports maximum isolation voltage up to 10,000V DC for high voltage safety.
- Coil operates at 5V DC, with coil resistance of 16 Ω for efficient control.
- Handles up to 2A current, making it ideal for demanding environments.
- Low contact resistance (250mΩ) for precise signal transmission.
- PCB mount design allows for easy integration in circuit boards.
- Operating time of 3ms for fast switching response.
- Wide operating temperature range from -20°C to 70°C for robust performance.
Product Description
Cynergy3 DAT70515F-HR/RS PCB Reed Relay offers exceptional electrical isolation for sensitive electronic applications. Featuring a SPST contact configuration, this relay is designed to reliably switch signals and power in high-voltage environments, with maximum isolation voltage rated up to 10,000V DC. The device operates with a 5V DC coil and a 16 Ω coil resistance, enabling stable and efficient activation.
With a maximum current capacity of 2A and low contact resistance of 250mΩ, the relay provides both versatility and accuracy for signal switching. The PCB mounting form factor ensures straightforward incorporation into a wide range of circuit boards and systems. Fast operational response (3 ms operating time) allows for rapid switching while maintaining reliability in industrial and laboratory equipment.
SPST contact configuration for reliable circuit control. High isolation voltage: 10,000V DC, ideal for cardiac defibrillators, test equipment and high voltage power supplies. Low contact resistance and fast response time enhance performance in critical applications.
Easy PCB mounting and compatibility with a broad range of designs. Wide operating temperature range (-20°C to +70°C) ensures performance in varied environments. Meets UL standards for safety and quality assurance. Series: DAT; Model: DAT70515F-HR/RS; Origin: United Kingdom.
Typical applications include industrial automation, laboratory and test equipment, power supplies, and medical electronics where reliable electronic isolation and signal control are necessary. The relay is also suitable for use in automotive testing, advanced electronic designs, and robust circuit protection.
For additional details and to browse the full Cynergy3 relay range or other Reed Relays, explore the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay supports a maximum isolation voltage of up to 10,000V DC, ensuring high voltage safety for sensitive applications.
The coil resistance is 16 Ω, which allows for efficient control and activation of the relay.
It can handle a maximum current of 2A, making it suitable for demanding environments.
The operating time is 3ms, allowing for fast switching response in various applications.
This relay features an SPST (Single Pole Single Throw) contact configuration for reliable circuit control.
The relay has a length of 60mm and a height of 18.5mm, making it suitable for PCB mounting.
It operates within a wide temperature range from -20°C to 70°C, ensuring robust performance in varied environments.
The contact resistance is 250mΩ, which contributes to precise signal transmission.
This model meets UL standards for safety and quality assurance, ensuring compliance in various applications.
It is designed for PCB mounting, allowing for easy integration into circuit boards.
Typical applications include industrial automation, laboratory equipment, power supplies, and medical electronics where reliable electronic isolation is necessary.
The relay has a switching power rating of 50W, suitable for various electronic applications.
