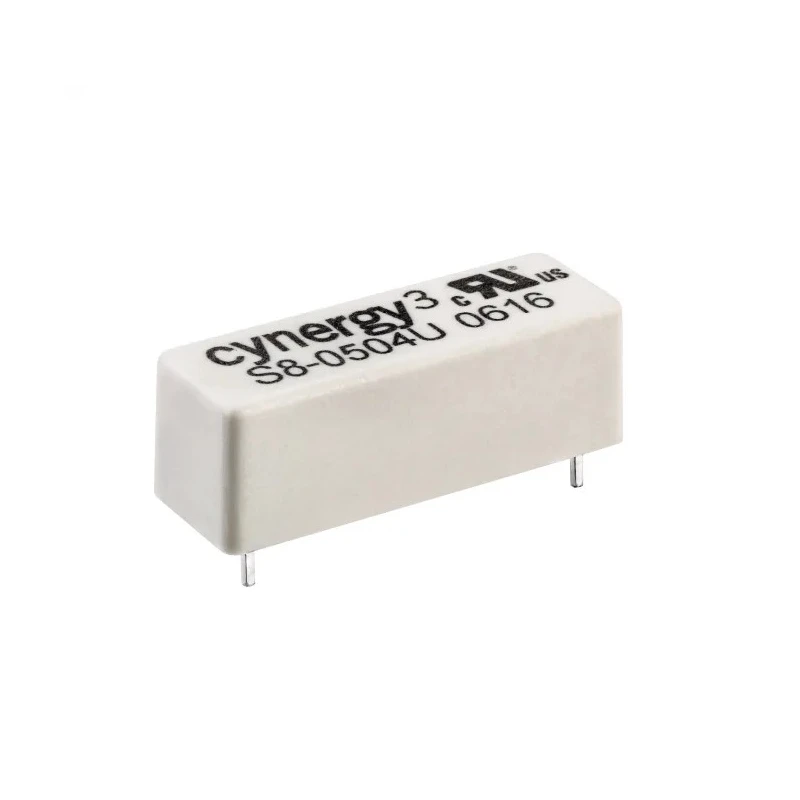

Cynergy3 PCB Reed Relay, 5V DC Coil, SPST, 350V DC Max, 1A, 120Ω, Miniature High Voltage,
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Cynergy3 |
| Height | 12mm |
| Length | 30mm |
| Model | Cynergy3 |
| Operating Time | 1ms |
| Mount Type | PCB |
| Series | S8 (UL) |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Terminal type | PCB Terminal |
| Contact Resistance | 150mΩ |
| Standards/Approvals | UR |
| Coil Resistance | 120Ω |
| Isolation Coil To Contact | 7kV |
| Carry Current | 2.5 A |
Key Features
- Miniature relay design enables space saving within PCB layouts.
- Coil to contact isolation voltage rated at 7kV for enhanced safety.
- SPST contacts provide reliable switching for single circuit paths.
- Coil resistance of 120Ω ensures efficient energy usage.
- Maximum switching voltage capability of 350V DC broadens application scope.
- Fast operating time of 1ms supports precise and rapid switching operations.
- PCB terminal configuration allows straightforward integration with circuit boards.
- Rated switching power of 100VA and carry current up to 2.5A.
Product Description
The Cynergy3 S8-0504U/RS PCB Reed Relay is engineered for demanding industrial and electronic applications requiring precise, high voltage switching capabilities in compact form factors. With its 5V DC coil and SPST (Single Pole Single Throw) contact configuration, this relay enables reliable control of circuit paths in automation, signal conditioning, and protection systems.
Featuring a maximum switching voltage of 350V DC and a rated switching power of 100VA, the relay ensures robust performance even in high voltage scenarios. Its coil resistance of 120Ω is designed for efficient coil operation, contributing to controlled energy consumption and dependable actuation. The integration of PCB terminals simplifies mounting, making it ideal for modern electronic circuit boards and control panels.
High isolation voltages are key highlights: the coil to contact isolation is rated at 7kV, providing enhanced safety and signal integrity by separating high voltage contacts from low voltage drives. The 1ms operating time delivers rapid response to switching commands, suitable for precision industrial control systems, laboratory instrumentation, and signal routing applications.
The compact package (length 30mm, height 12mm) addresses space-saving requirements in equipment design. Its capability to withstand extreme ambient conditions is marked by a minimum operating temperature of -40°C and a maximum of 85°C, supporting deployment across industrial, laboratory, and commercial environments.
Approved under UR standards and designed as part of Cynergy3's S8 (UL) relay series, the S8-0504U/RS does not feature a latching mechanism and maintains contact resistance at 150mΩ. With a carry current of up to 2.5A, it is suitable for signal relays, high voltage switching, and sensitive automation modules.
Typical industrial use cases include electronics manufacturing, signal conditioning equipment, laboratory automation, power isolation systems, and advanced control panels for HVAC and automation. Its miniature footprint and robust technical ratings make it a preferred choice in PCB design, relay modules, and high voltage signal routing.
For more Reed Relays from Cynergy3 and other precision relay solutions, explore the EnvMart electronics and relay components range.
