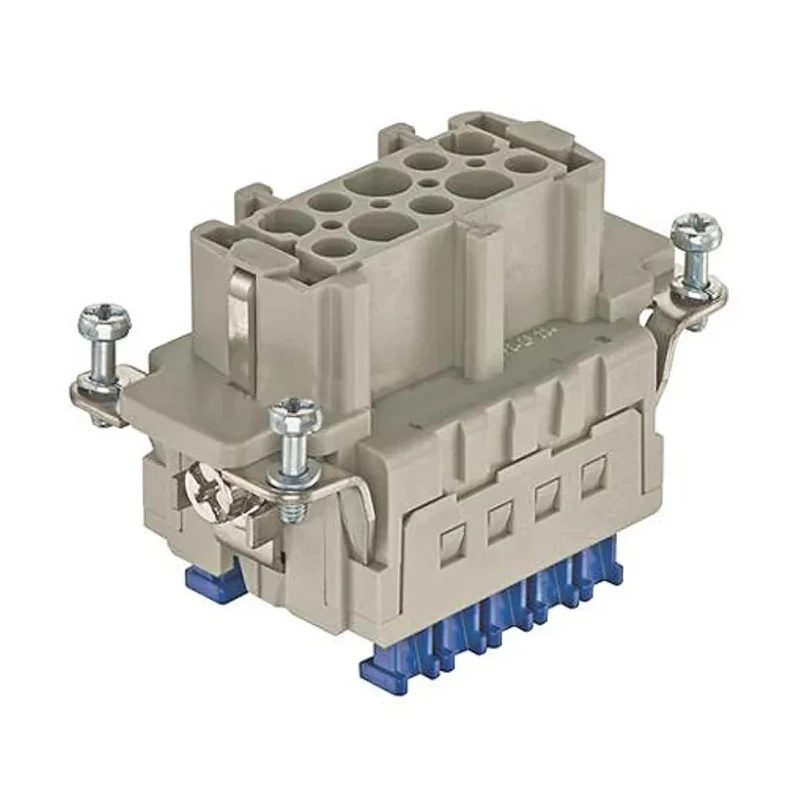

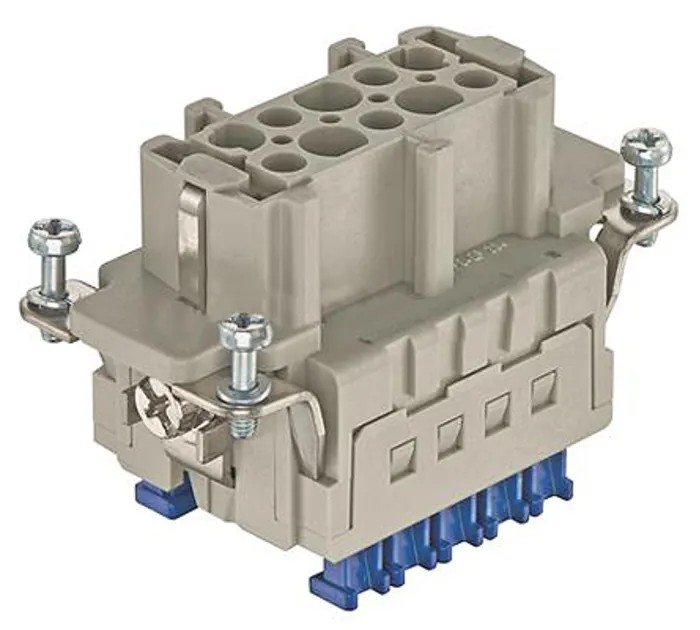

HARTING Heavy Duty Power Connector Insert, Female, 16A, 10 Contacts, Han ES Press Series 09330102748

Free Delivery in India | Lowest Global Shipping Charges

HARTING Heavy Duty Power Connector Insert, Female, 16A, 10 Contacts, Han ES Press Series 09330102748

Name: HARTING Heavy Duty Power Connector Insert, Female, 16A, 10 Contacts, Han ES Press Series 09330102748
Brand: HARTING
SKU: 185588
Price: 32.15 USD
Availability: InStock



Category Heavy Duty Power Connector Insert Brand HARTING Condition New

Specifications

Country of Origin	Germany
Voltage	500V
Brand	HARTING
Orientation	Straight
Mount Type	Panel Mount
Contact Material	Copper Alloy
Current Rating	16A
Series	Han ES Press
Thread Size	M3 x 10
Sub Type	Connector Insert
Number of Rows	2
For Use With	Heavy Duty Power Connector
Pole Format	10
Contact Plating	Silver
Number of Contacts	10
Connector Gender	Female
Minimum Wire Size mm²	0.14mm²
Maximum Wire Size mm²	2.5mm²

Key Features

Features a robust cage clamp termination for quick and easy wiring.
Vibration proof design ensures reliable connection in industrial environments.
Accepts wire sizes ranging from 0.14 mm² to 2.5 mm² for versatile applications.
Compatible with a wide range of housings including Han B, M, EMC, Easy Hood, and HPR series.
Silver plated copper alloy contacts provide excellent conductivity and corrosion resistance.
Designed for panel mount with M3 x 10 thread size for secure installation.
Operates at a voltage rating of 500V suitable for heavy-duty power transmission.
Includes 10 contact poles arranged in 2 rows for compact and efficient connectivity.

Product Description

HARTING 09330102748 Heavy Duty Power Connector Insert is a female connector insert designed for industrial and commercial power connection applications. Rated for 16 amperes and operating up to 500 volts, this connector offers a secure and reliable connection with a vibration proof design that suits harsh environments.

The connector features cage clamp terminations which allow quick and tool-free wiring, accommodating wire sizes from 0.14 mm² up to 2.5 mm². It utilizes silver plated copper alloy contacts that deliver superior electrical conductivity and resistance to corrosion for durable performance.

This model is part of the Han ES Press Series and includes 10 contacts arranged in 2 rows. Its panel mount configuration with an M3 x 10 thread size ensures stable installation in electrical panels or enclosures. The straight orientation of the contacts facilitates easy integration with appropriate mating components.

The insert is compatible with a wide range of HARTING housings including Han B, Han M, Han EMC, Han Easy Hood, and Han HPR, enabling multiple connection possibilities for diverse industrial setups. Optional ES Press plug-in jumpers allow for rapid bridging of contacts and implementation of Star and Delta motor connections.

Manufactured in Germany with a focus on quality and precision, this connector is suited for electrical distribution, industrial automation, machinery, and manufacturing applications requiring robust power connectors with efficient wiring solutions.

Features cage clamp terminations for efficient and tool-free wiring. Vibration proof construction enhances durability and connection reliability. Silver plated copper alloy contacts ensure excellent electrical performance.

Supports wire sizes from 0.14 mm² to 2.5 mm² enabling flexible wiring options. 10 contact poles organized in 2 rows for compact design. Panel mount design with M3 x 10 thread size for secure fixing. Compatible with various Han series housings for system versatility.

Optional plug-in jumpers enable motor connection configurations. Ideal for industrial, manufacturing, and commercial electrical systems. Explore more high-quality power connectors and accessories in the Heavy Duty Power Connector Insert category at EnvMart.
