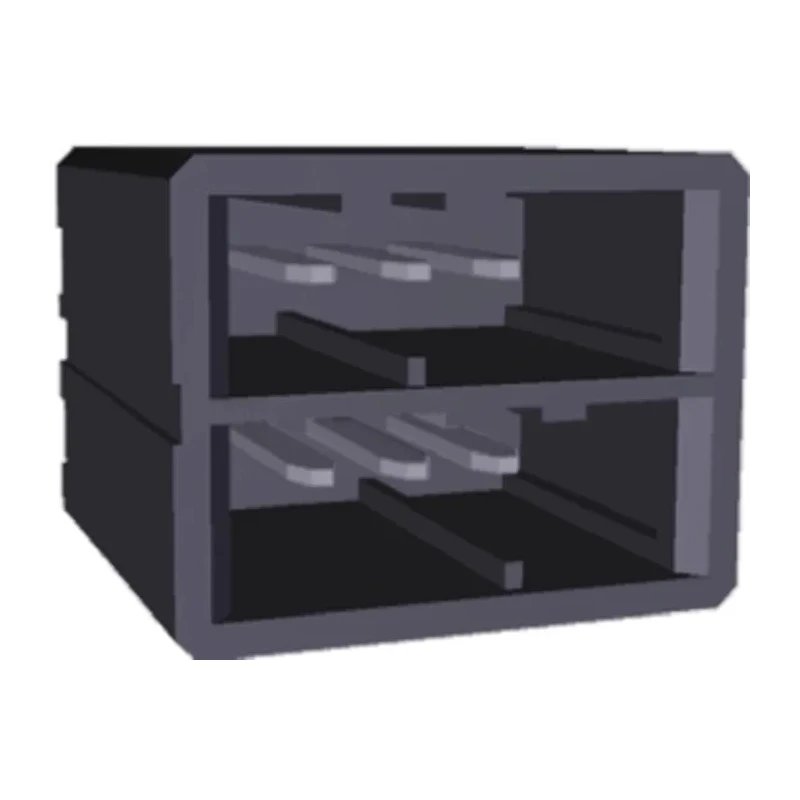

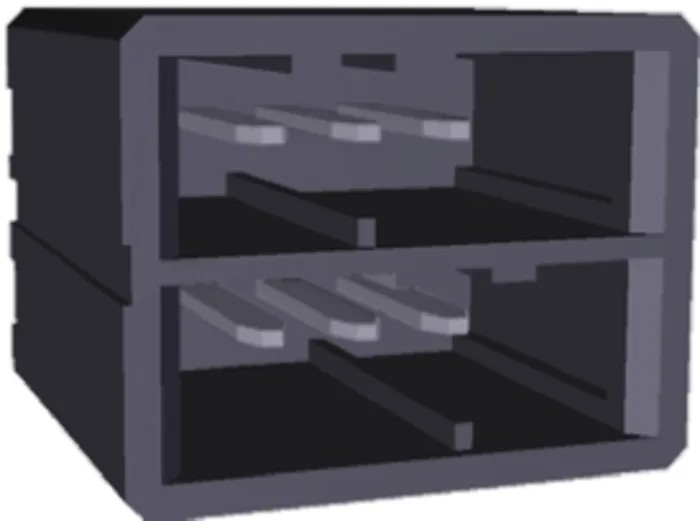

TE Connectivity Dynamic 3000 Series Straight Through Hole PCB Header 6 Contacts 3.81 mm Pitch 2 Row Shrouded 3-178141-5
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 10A |
| Mount Type | Through Hole |
| Housing Material | Polyester |
| Contact Material | Copper Alloy |
| Series | Dynamic 3000 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 3.81mm |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 719-5795Brand: TE ConnectivityManufacturers Part No.: 3-178141-5 |
| Contact Plating | Tin |
| Number of Contacts | 6 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- This PCB header series belongs to the Dynamic 3000 family ensuring quality and reliability.
- Made with polyester housing and copper alloy contact material with tin plating.
- Supports a current rating of 10A and voltage up to 250V suitable for demanding applications.
- The connector features 2 rows with a straight orientation and male contact gender.
- Designed for operation between -55°C and 105°C, ensuring durability across temperature ranges.
- Utilizes solder termination type for secure and durable PCB connections.
- Recommended for use with PCB thickness between 1.0 to 1.6 mm for optimal fit.
- This product is manufactured in Japan and adheres to industrial standards without specific certifications.
Product Description
TE Connectivity 3-178141-5 Dynamic 3000 Series Straight Through Hole PCB Header with 6 contacts and 3.81 mm pitch is engineered for reliable wire-to-board connections in industrial and electronic applications. Its polyester housing and copper alloy contacts with tin plating offer durability and stable electrical connections. This shrouded connector features two rows and a straight orientation designed for through hole mounting on PCBs with recommended thickness between 1.0 to 1.6 mm.
Rated for a current capacity of 10A and operating voltage of 250V, this PCB header withstands operating temperatures from -55°C to 105°C, making it suitable for harsh environments and electronic manufacturing, industrial control systems, and power distribution boards.
The Dynamic 3000 Series includes a tin plated retention leg for increased mechanical stability. Contact tabs are gold plated for enhanced conductivity, while the solder termination type ensures secure PCB integration. This connector is male contact gender with a shrouded design, enhancing mating and protection against damage or accidentals.
These PCB headers cater to various industrial sectors including manufacturing, electronic component assembly, automation, and instrumentation. The product reflects high manufacturing quality from Japan with steady performance in demanding operational conditions.
This PCB Header series belongs to the Dynamic 3000 family ensuring quality and reliability. Made with polyester housing and copper alloy contact material with tin plating. Supports a current rating of 10A and voltage up to 250V suitable for demanding applications.
The connector features 2 rows with a straight orientation and male contact gender. Designed for operation between -55°C and 105°C, ensuring durability across temperature ranges. Utilizes solder termination type for secure and durable PCB connections.
Recommended for use with PCB thickness between 1.0 to 1.6 mm for optimal fit. This product is manufactured in Japan and adheres to industrial standards without specific certifications.
Explore the TE Connectivity Dynamic 3000 Series range to find compatible connectors and related components for professional electronic board assembly and industrial use at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB header supports a current rating of 10A.
It can handle a maximum voltage of 250V.
The recommended PCB thickness for optimal fit is between 1.0 to 1.6 mm.
The housing is made of polyester, and the contact material is a copper alloy with tin plating.
This unit is designed to operate between -55°C and 105°C.
This model features 6 contacts.
It utilizes a solder termination type for secure PCB connections.
The connector has a straight orientation.
This connector is shrouded, enhancing mating and protection.
The contact gender of this PCB header is male.
This product is manufactured in Japan.
This header belongs to the Dynamic 3000 series.
