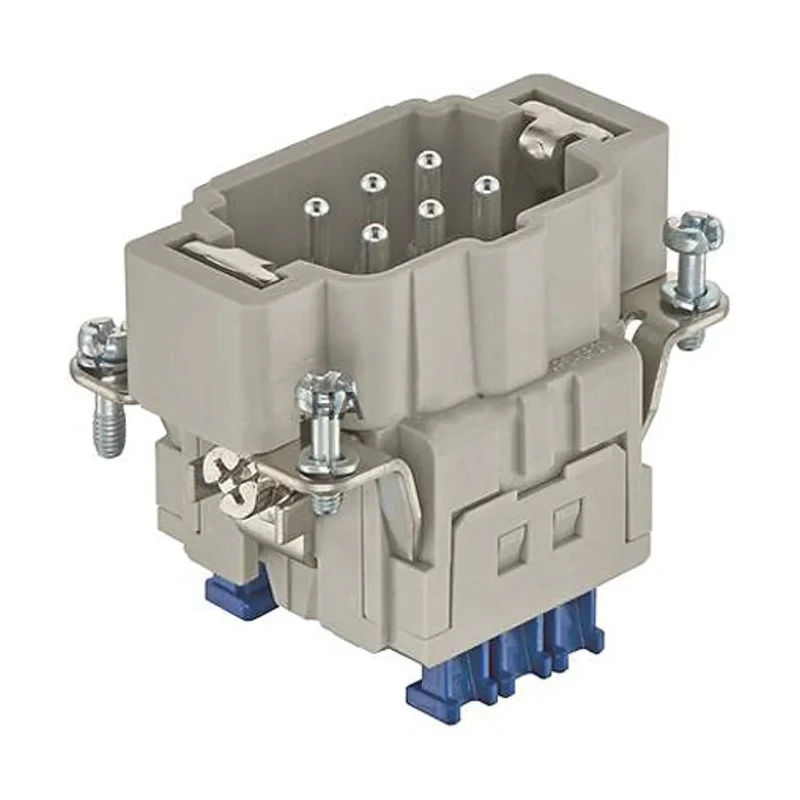

HARTING Heavy Duty Power Connector Insert 16A Han ES Press Series Male 6 Contacts 09330062648
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 500V |
| Brand | HARTING |
| Orientation | Straight |
| Mount Type | Panel Mount |
| Contact Material | Copper Alloy |
| Current Rating | 16A |
| Series | Han ES Press |
| Thread Size | M3 x 10 |
| Sub Type | Connector Insert |
| Number of Rows | 2 |
| For Use With | Heavy Duty Power Connector |
| Pole Format | 6 |
| Contact Plating | Silver |
| Number of Contacts | 6 |
| Connector Gender | Male |
| Minimum Wire Size mm² | 0.14mm² |
| Maximum Wire Size mm² | 2.5mm² |
Key Features
- Rated for 16A current with 500V voltage capacity.
- Cage clamp terminations enable quick and easy wiring without additional tooling.
- Features vibration proof design and silver plated copper alloy contacts.
- Accepts wire sizes from 0.14mm² up to 2.5mm².
- Includes 6 contacts arranged in a 2-row, 6-pole format.
- Mounts easily on panels using M3 x 10 thread size.
- Orientation is straight for direct connector alignment.
- Compatible with Han B, Han M, Han EMC, Han Easy Hood, and Han HPR hoods and housings.
Product Description
HARTING 09330062648 Heavy Duty Power Connector Insert is engineered for rigorous industrial and electronic applications requiring robust and reliable connections. Rated at 16A with a voltage limit of 500V, this Han ES Press Series male connector supports efficient power distribution in panel-mounted setups.
This connector insert features a vibration proof design to maintain secure connections under challenging environmental conditions. The silver plated copper alloy contacts ensure excellent conductivity and corrosion resistance, enhancing performance and longevity.
Wiring is facilitated by cage clamp terminations, which enable quick and secure wire fastening without the need for additional tools. It supports wire sizes from 0.14 mm² to 2.5 mm², accommodating a variety of wiring gauges for flexibility in installation. The connector is structured with 6 contacts arranged in two rows, fitting into a 6-pole format configuration.
Installation is straightforward using panel mount with an M3 x 10 thread size, and the straight orientation aids in alignment with mating components. Compatibility extends across multiple Harting hoods and housings including Han B, Han M, Han EMC, Han Easy Hood, and Han HPR.
Optional ES Press plug-in jumpers can be employed directly within the connector to bridge contacts or configure Star and Delta motor connections, thus expanding its application scope in industrial motor control scenarios.
Constructed in Germany, this product guarantees premium manufacturing standards and reliability for heavy duty power connector needs in industrial, manufacturing, electronic manufacturing, and electrical distribution sectors.
Rated for 16A current with 500V voltage capacity. Cage clamp terminations enable quick and easy wiring without additional tooling. Features vibration proof design and silver plated copper alloy contacts. Accepts wire sizes from 0.14mm² up to 2.5mm².
Includes 6 contacts arranged in a 2-row, 6-pole format. Mounts easily on panels using M3 x 10 thread size. Orientation is straight for direct connector alignment. Compatible with Han B, Han M, Han EMC, Han Easy Hood, and Han HPR hoods and housings.
Allows optional ES Press plug-in jumpers for contact bridging and motor connection configurations. Manufactured in Germany ensuring high reliability and quality. Explore the complete range of Heavy Duty Power Connector Inserts at EnvMart for industrial success and assured electrical connectivity.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It is rated for a current of 16A.
This model can handle a voltage of up to 500V.
It includes 6 contacts arranged in a 2-row, 6-pole format.
It accepts wire sizes ranging from 0.14 mm² to 2.5 mm².
It features cage clamp terminations for quick and easy wiring without additional tooling.
It is designed for panel mount using an M3 x 10 thread size.
The orientation is straight for direct alignment with mating components.
The contacts are made from silver plated copper alloy, ensuring good conductivity and corrosion resistance.
Yes, it is compatible with Han B, Han M, Han EMC, Han Easy Hood, and Han HPR hoods and housings.
Yes, optional ES Press plug-in jumpers can be used within the connector for bridging contacts or configuring motor connections.
This connector insert is manufactured in Germany.
It belongs to the Han ES Press Series.
