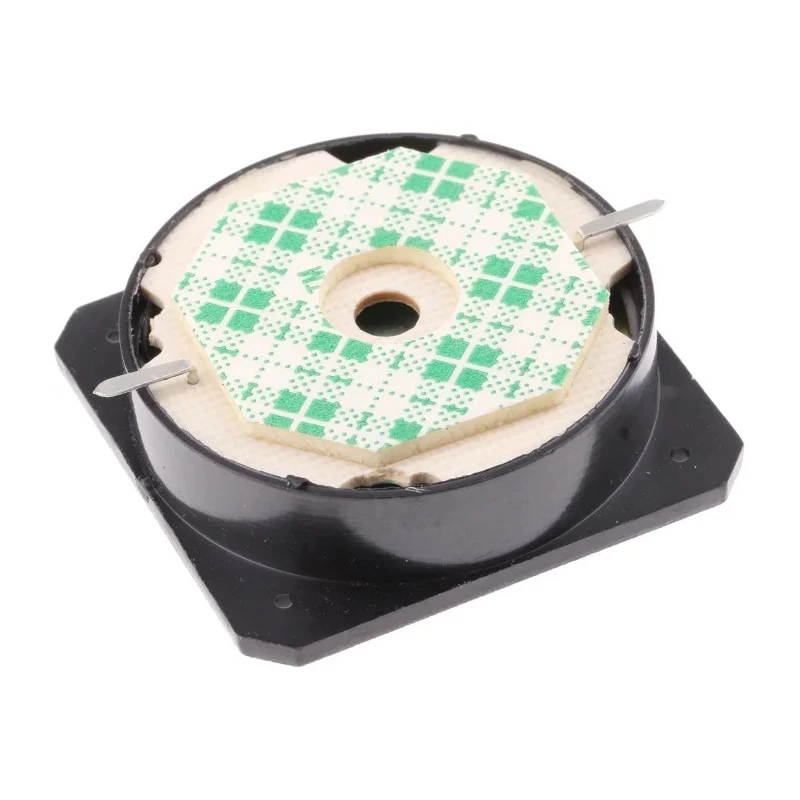

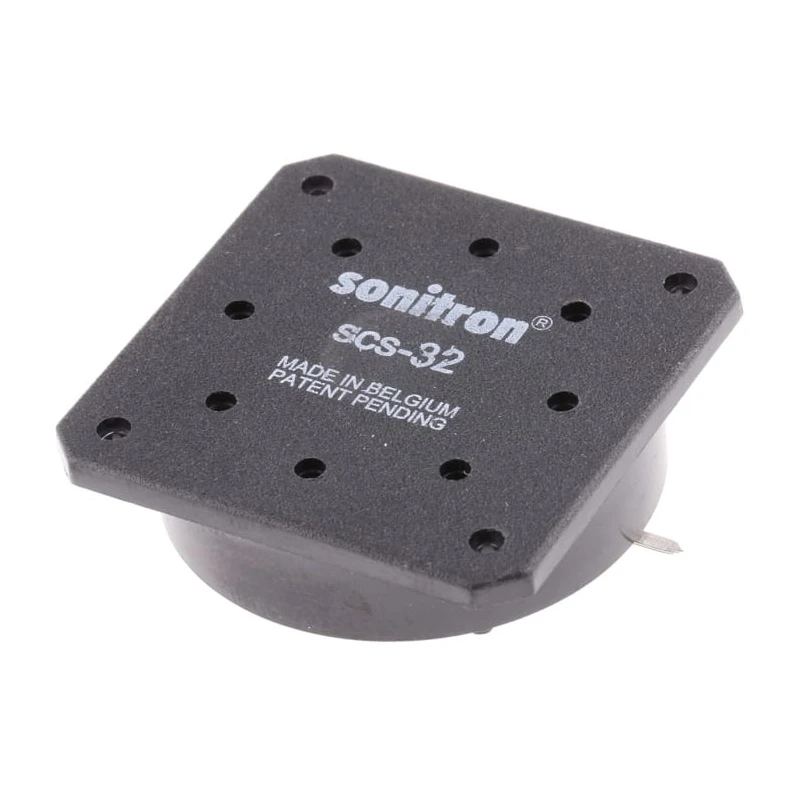

Sonitron Piezoelectric Miniature Speaker, 80 dB Sound Level, 500 Hz - 8 kHz Frequency Range, 66 nF SCS-32-S SP02 FP

Sonitron's SCS-32-S SP02 FP is a piezoelectric miniature speaker designed to provide high sound output with low current consumption. Featuring a square piezoceramic SMT mount construction, this speaker operates efficiently within the frequency range of 500 Hz to 8 kHz, producing an 80 dB sound level, making it ideal for compact electronic applications.

It utilizes solder pads and pin connection methods for secure panel mounting and requires external circuitry to function, offering versatility in integration. The speaker performs reliably within an operating temperature range of -40°C to 85°C, suitable for demanding industrial and commercial environments.

The speaker features a capacitance of 66 nF and supports operating voltages from a minimum of 5 V Pk-Pk up to a maximum of 30 V Pk-Pk, catering to diverse power requirements. Its compact height of 9.7 mm allows seamless incorporation into limited-space designs, further enhanced by RoHS compliance for environmental safety standards.

This piezoelectric speaker is widely applicable across electronics manufacturing, signal generation, power and connector modules, and general electronic component assemblies. Users will appreciate the durable construction and consistent performance in audio signaling applications.

Features SMT mount design with solder pads and pin connections for panel mounting. Operates within a temperature range from -40°C to 85°C for reliable performance. Requires external circuitry to operate effectively. Offers a minimum operating voltage of 5 V Pk-Pk and maximum voltage of 30 V Pk-Pk.

The compact height of 9.7 mm allows integration in space-constrained applications. Complies with RoHS standards ensuring environmental safety. Ideal for use in electronic components, power and connectors modules, and passive component assemblies.
