JST SH Female Connector Housing 1 mm Pitch 2 Way 1 Row Straight SHR-02V-S-B

Free Delivery in India | Lowest Global Shipping Charges

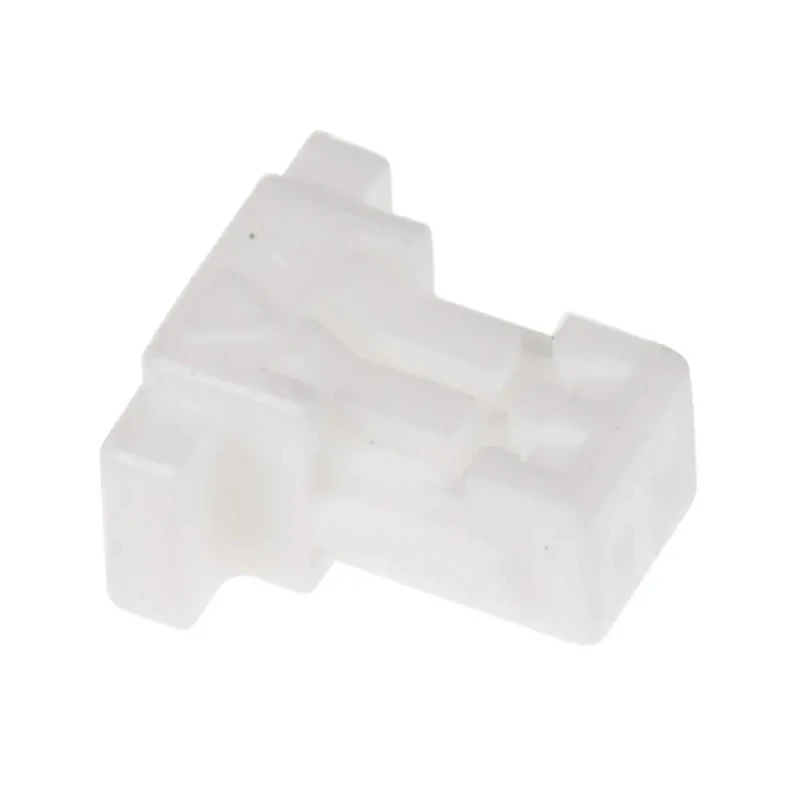

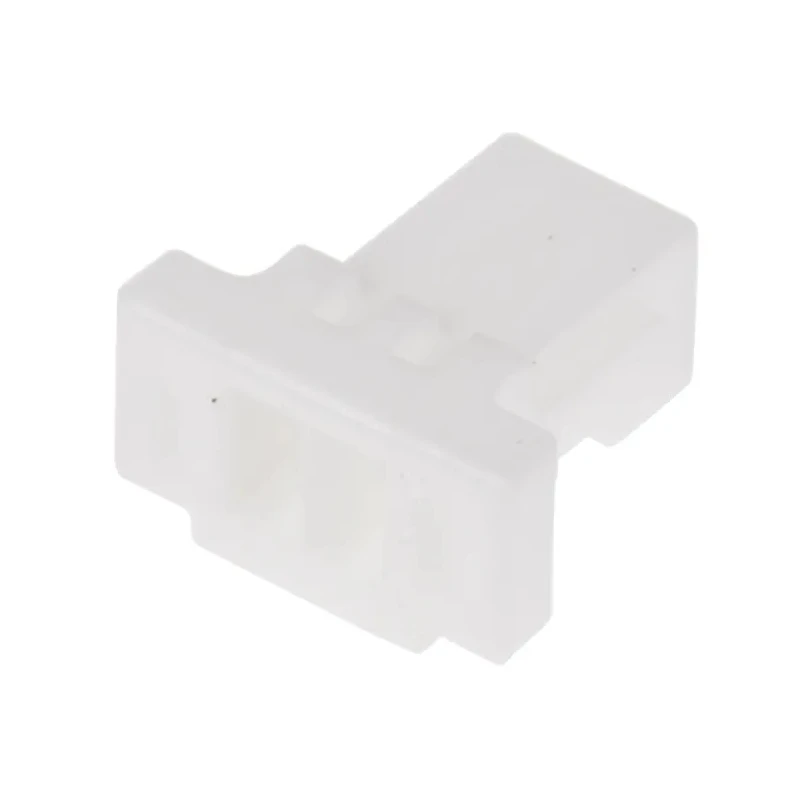

JST SH Female Connector Housing 1 mm Pitch 2 Way 1 Row Straight SHR-02V-S-B



Category PCB Connector & Wire Housing Brand JST Condition New

Specifications

Country of Origin	India
Brand	JST
Orientation	Straight
Length	5mm
Model	SHR-02V-S-B
Width	2.8mm
Mount Type	Cable
Housing Material	Polybutylene Terephthalate
Series	SH
Number of Rows	1
Pitch	1mm
For Use With	JST SH Connector
Number of Contacts	2
Connector Gender	Female

Key Features

This connector housing is designed for use with JST SH connectors.
Constructed from durable polybutylene terephthalate housing material.
Features a low profile and polarised design to prevent incorrect mating.
Suitable for wire-to-board applications with a 5 mm length and 2.8 mm width.
Provides reliable connection with crimp socket housings suitable for pre-terminated crimped leads.
Housings mate with top or side entry headers available in the same series.
This product is RoHS compliant and designed for electronic and electrical component applications.

Product Description

The JST SHR-02V-S-B is a high-quality SH Female Connector Housing featuring a 1 mm pitch with 2 contacts in a single row, designed specifically for cable mount applications. Manufactured using robust polybutylene terephthalate material, it ensures both durability and reliability in various electronic and electrical assemblies.

This straight orientation connector housing is part of the versatile JST SH series, well-suited for compact wire-to-board interconnection systems where space constraints are critical. With a length of 5 mm and a width of 2.8 mm, it offers a low profile that facilitates efficient PCB layout designs.

To achieve secure connections, this housing mates effectively with JST SH connectors, including top or side entry headers, enabling flexibility in design and assembly processes. The polarised housing ensures correct orientation, minimizing the risk of misconnection during installation.

Its crimp socket housing accepts pre-terminated crimped leads, making it ideal for applications requiring time and cost savings in assembly, while maintaining electrical performance integrity. Although it does not come with specific standards or approvals listed, it complies with RoHS directives.

This connector housing offers compact, low-profile cable mounting for PCB integration. Made from durable polybutylene terephthalate plastic for enhanced mechanical performance. 1 mm pitch with 2 contacts arranged in a single row provides reliable electrical connectivity.

Suitable for use with JST SH connectors for wire-to-board applications. Polarised design prevents mis-mating ensuring proper assembly. Compatible with top and side entry headers, offering assembly flexibility. Ideal for electronic components, power connectors, and wire housing applications.

Industries such as consumer electronics, communications equipment manufacturing, and other electronic assemblies benefit from this connector housing’s proven design and functionality. Its compact size helps conserve precious board space, catering to modern electronics' miniaturization trend.

Explore the comprehensive range of PCB connector and wire housings at EnvMart to find compatible components, accessories, and design tools that complement the JST SH series connectors for reliable and efficient electronic device fabrication.

Explore more products in our PCB Connector & Wire Housing category.
