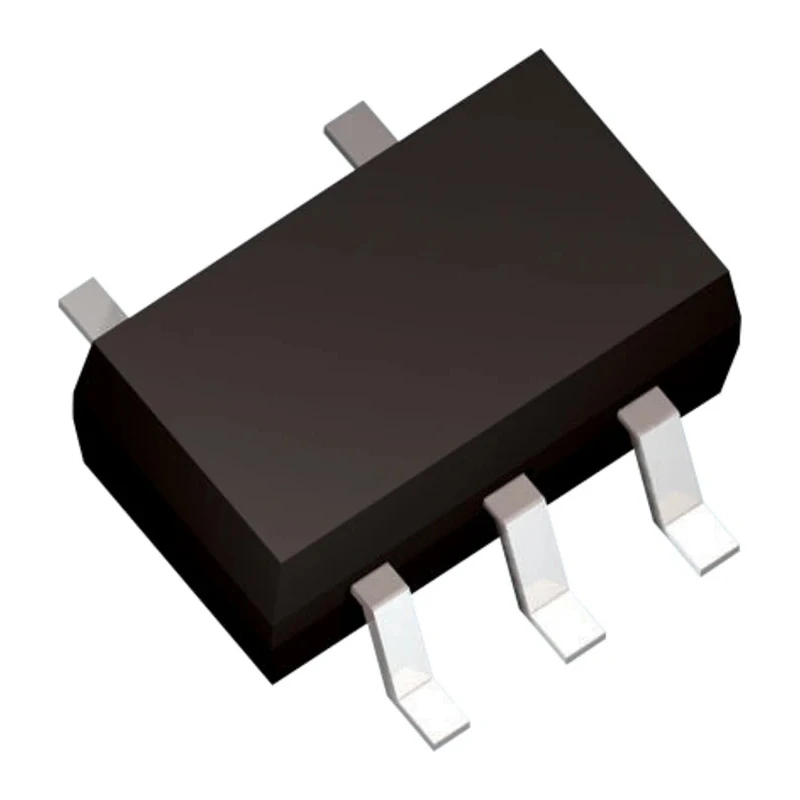

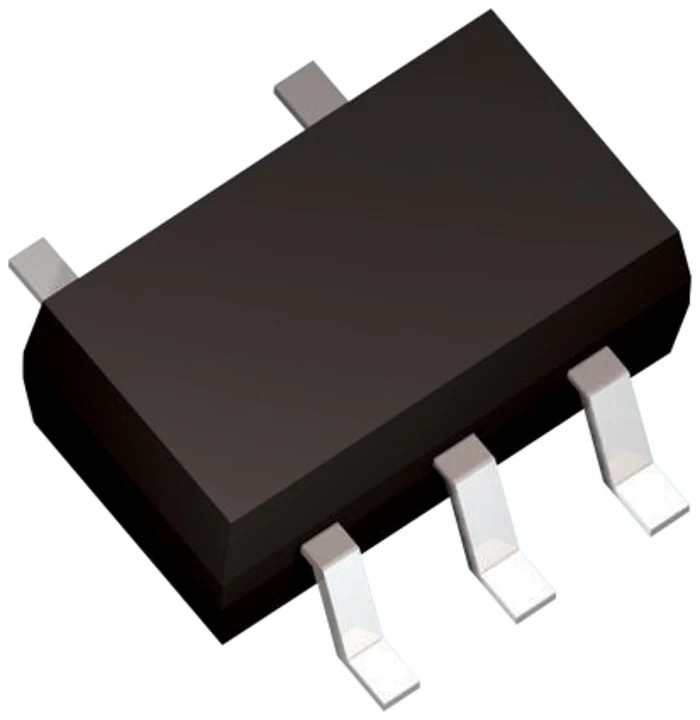

DiodesZetex General Purpose Comparator Open Collector Output 5-Pin SOT-25 Package 2.7-5.5V 400ns LMV331W5-7
Specifications
| Country of Origin | China |
|---|---|
| Brand | DiodesZetex |
| Height | 1.3mm |
| Length | 3.1mm |
| Model | LMV331W5-7 |
| Width | 1.7mm |
| Mount Type | Surface |
| Output type | Open Collector |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-25 |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Comparator Type | General Purpose |
| Pin Count | 5 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.7V |
| Supply Current | 150μA |
| Typical Response Time | 400ns |
Key Features
- Operates over a supply voltage range of 2.7 to 5.5 volts.
- Features an open collector output type for flexible interfacing.
- Compact 5-pin SOT-25 surface mount package measuring 3.1mm x 1.7mm x 1.3mm.
- Typical response time of 400 nanoseconds for fast switching.
- Supply current is low at 150 microamperes for power-efficient operation.
- Designed for single channel comparator applications.
- Wide operating temperature range from -40°C to 125°C.
- Manufactured in China with new product condition.
Product Description
DiodesZetex LMV331W5-7 is a high-performance general purpose comparator designed for use in electronic circuits requiring precise voltage comparison. Housed in a compact 5-pin SOT-25 surface mount package, it supports supply voltages between 2.7V and 5.5V, suitable for modern low voltage digital and analog systems.
The device features an open collector output, enabling wired-AND configurations or interfacing with different voltage levels. Its typical response time of 400 nanoseconds allows quick detection of changing input signals, making it suitable for timing-sensitive applications.
The low supply current of 150 microamperes ensures minimal power consumption, ideal for battery-powered or energy-efficient designs. The device supports operation over a wide temperature range from -40°C to 125°C, ensuring reliability in harsh environments common in automotive and industrial electronics.
Physical dimensions of 3.1 mm in length, 1.7 mm in width, and 1.3 mm in height enable integration into compact circuit boards. This single channel comparator is manufactured in China and is provided as a new product.
Operates from 2.7 V to 5.5 V supply voltage. Open collector output for compatibility with various logic levels. Compact 5-pin SOT-25 surface mount package. Fast typical response time of 400 ns. Low supply current of 150 µA.
Single channel comparator device. Wide operating temperature range from -40°C to 125°C. Suitable for industrial, automotive, and consumer electronics applications.
This comparator is ideally suited for electronic, industrial, and instrumentation applications requiring accurate voltage comparison and fast switching. It is commonly used in power management circuits, signal conditioning, and sensor interface designs.
Explore more Semiconductor Comparators and other electronic components in the Electronics & Electricals category at EnvMart for your design and manufacturing requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This comparator operates over a supply voltage range of 2.7V to 5.5V.
The typical response time of the LMV331W5-7 is 400 nanoseconds, allowing for fast switching.
The dimensions of the SOT-25 package are 3.1 mm in length, 1.7 mm in width, and 1.3 mm in height.
It features an open collector output type, which allows for flexible interfacing and wired-AND configurations.
The supply current for this model is low at 150 microamperes, making it suitable for power-efficient applications.
The LMV331W5-7 operates over a wide temperature range from -40°C to 125°C.
This model is designed as a single channel comparator.
It is designed for surface mounting, specifically in a SOT-25 package.
This comparator is suitable for industrial, automotive, and consumer electronics applications requiring accurate voltage comparison and fast switching.
This comparator is manufactured in China.
It is classified as a general purpose comparator, suitable for various electronic applications.
The open collector output allows for compatibility with various logic levels and enables wired-AND configurations, enhancing flexibility in circuit design.
