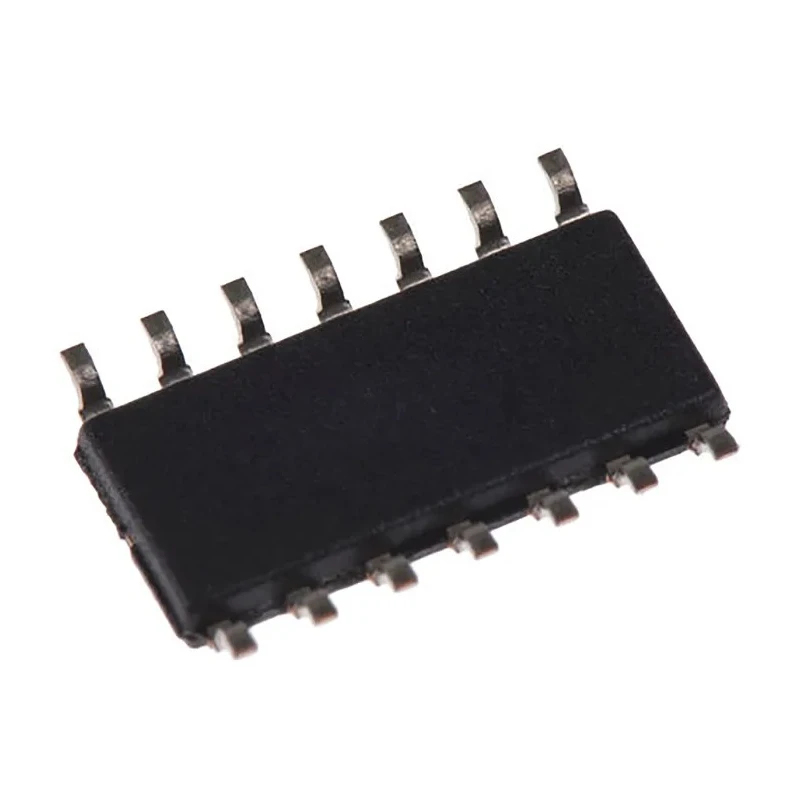

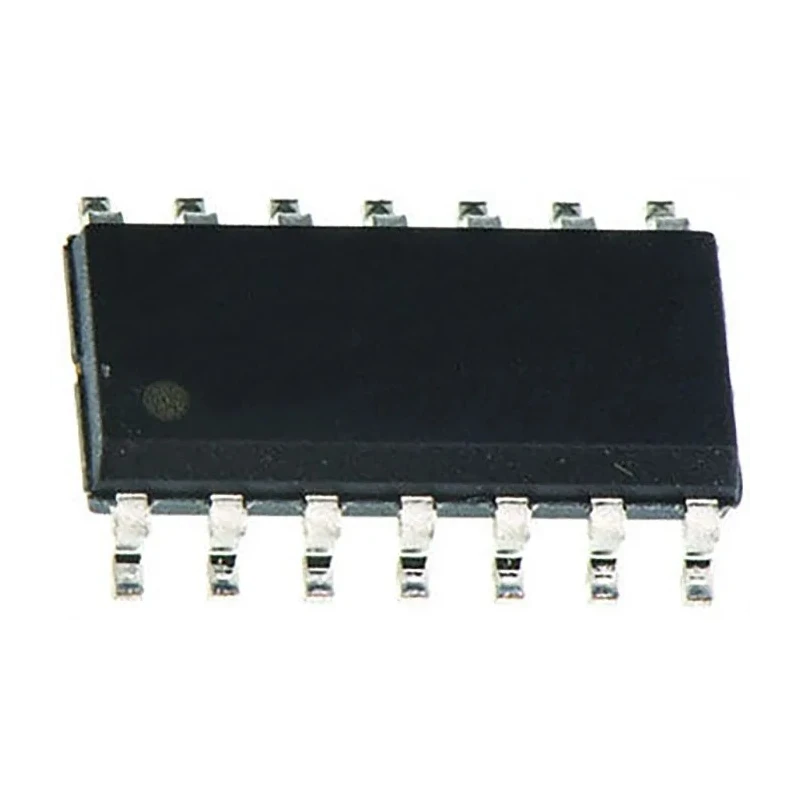

DiodesZetex 4-Channel Comparator TTL, CMOS, MOS Output 14-Pin SO-8 2V to 36V LM2901AQS14-13

DiodesZetex LM2901AQS14-13 is a high-performance 4-channel comparator designed for applications requiring precise voltage level detection and rapid response times. This quad differential comparator operates over a wide supply voltage range starting from a minimum of 2V to a maximum of 36V, making it suitable for diverse electronic and industrial uses.

The device features a typical response time of 300 nanoseconds, supporting rapid switching and fast processing in circuits. Its outputs are compatible with TTL, CMOS, and MOS technologies, providing versatility in system design.

Packaged in a compact 14-pin SO-8 surface-mount configuration, it has physical dimensions optimized for efficient board space utilization, measuring 8.74mm in length, 3.99mm in width, and 1.45mm in height. The low supply current of 3 mA contributes to energy-saving applications and reduced heat generation.

Built to meet automotive grade AEC-Q100 qualification, the LM2901AQS14-13 is reliable for automotive and harsh environment applications, with operating temperature specifications ranging from -40°C to 125°C.

Common applications include signal conditioning, voltage monitoring, threshold detection, and in manufacturing or automotive control systems where high reliability and speed are critical. The comparator's design supports integration within embedded systems, control units, and industrial electronic devices.

The device supports multiple logic output types including TTL, CMOS, and MOS. It features a typical response time of 300 nanoseconds for fast switching. Operating temperature ranges from -40° to 125°C, ensuring reliability in varied environments.

Compact dimensions with 8.74mm length, 3.99mm width, and 1.45mm height are ideal for surface-mount technology. Complies with automotive standard AEC-Q100 for enhanced quality and durability. Supply current is low at 3 mA, enabling energy-efficient designs.

The product is delivered in an SO-8 surface mount package facilitating easy PCB integration. Designed for use in industrial, automotive, and electronic equipment requiring precise voltage comparison.

For those seeking dependable semiconductor comparators for industrial, automotive, or electronic component projects, this model offered by DiodesZetex combines performance and quality assurance. Explore more Semiconductor Comparators and electronic components at EnvMart.
