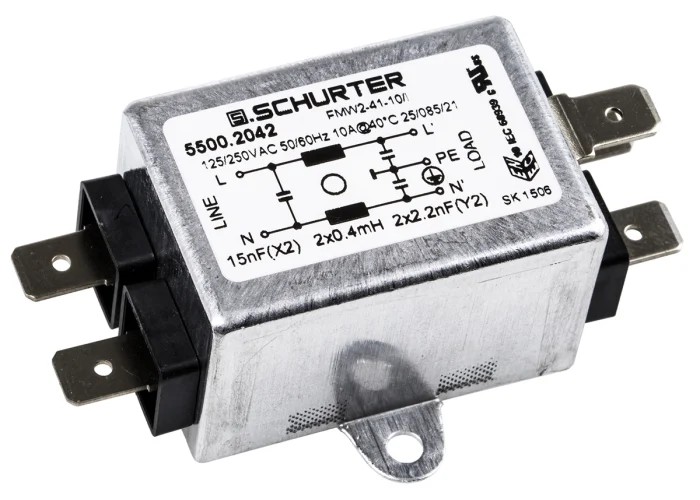

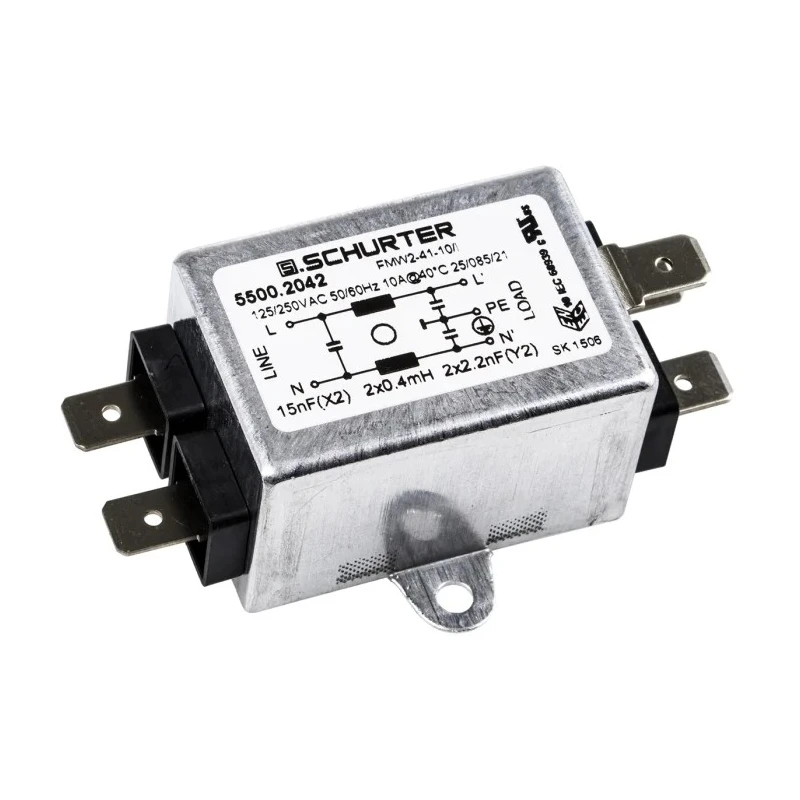

Schurter FMW2 Flange RFI Filter Solder Tab 1 Phase 10A 250V AC 60Hz Aluminium Case FMW2

Schurter FMW2 RFI Filter is a versatile filter engineered for noise suppression in single-phase electrical installations. This model is flange-mounted, optimized for robust integration into equipment requiring EMI/RFI protection. The filter's Solder Tab termination enables reliable connection for power lines, supporting up to 10 amps at 250 volts AC.

The core specifications include a 60Hz operating frequency, making it suitable for various environments in industrial, laboratory, and commercial equipment. Its aluminium enclosure not only contributes to mechanical durability but also improves electromagnetic shielding performance.

Electrical characteristics are carefully balanced: the filter offers low leakage current of 250 microamperes, with a capacitance of 15 nanofarads and inductance of 2 millihenries. This helps ensure effective attenuation of unwanted interference across your application’s power line.

With its compact footprint - 67mm in length, 46mm in depth, and 25mm in height - the FMW2 filter can be conveniently installed in tight spaces. It operates reliably across a temperature range from -25°C to 85°C, suitable for demanding technical installations.

Flange mounting ensures stability and ease of assembly. This model is certified to EN 133200, UL 1283, and IEC 60950 standards, and is approved to UL1283 and CSA22.2 No.8 1986, guaranteeing conformance to reputable quality and safety benchmarks.

Typical use cases include industrial machines, laboratory test equipment, HVAC systems, commercial electronics, and manufacturing plants, where EMI suppression in single-phase power lines is critical.
