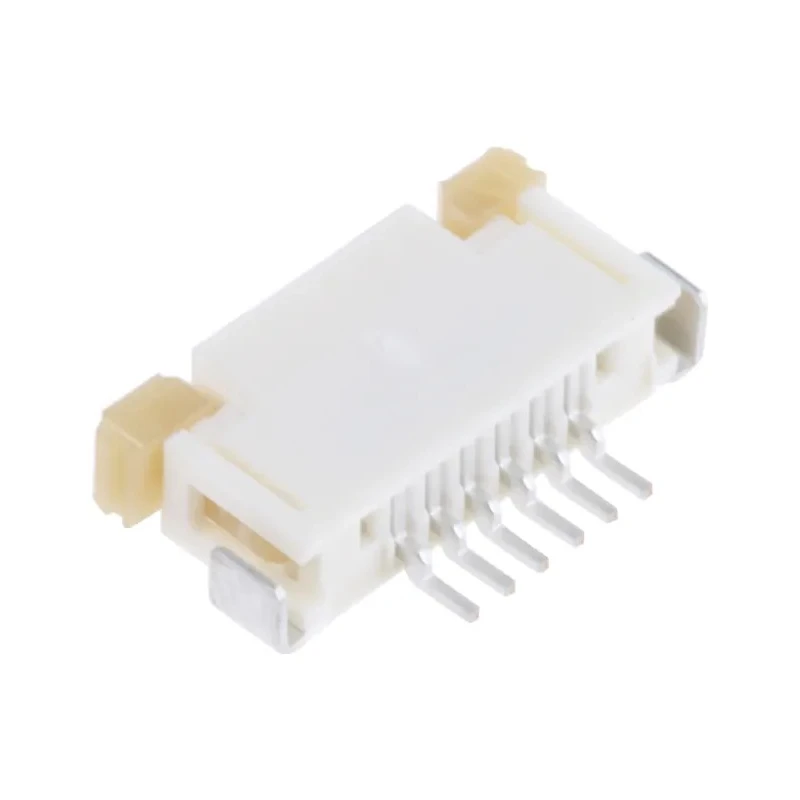

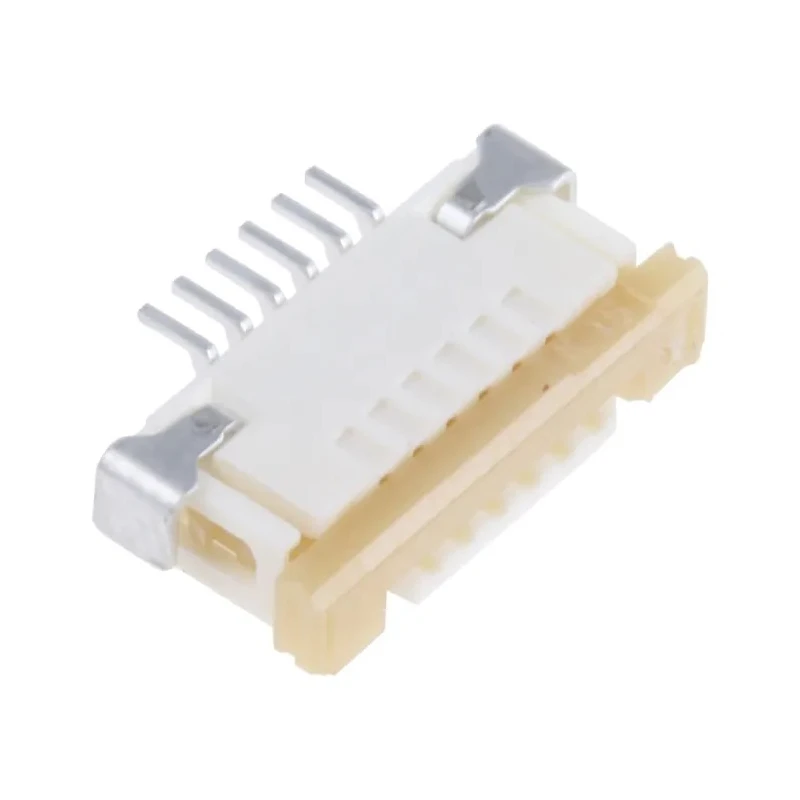

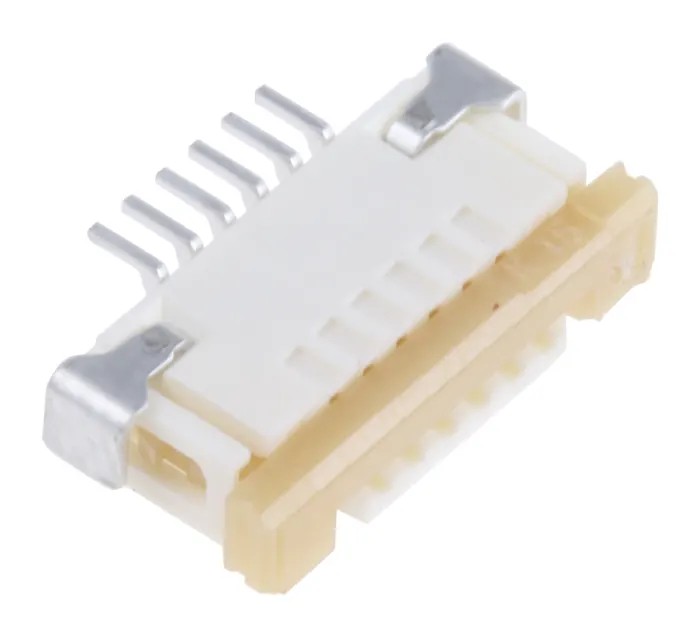

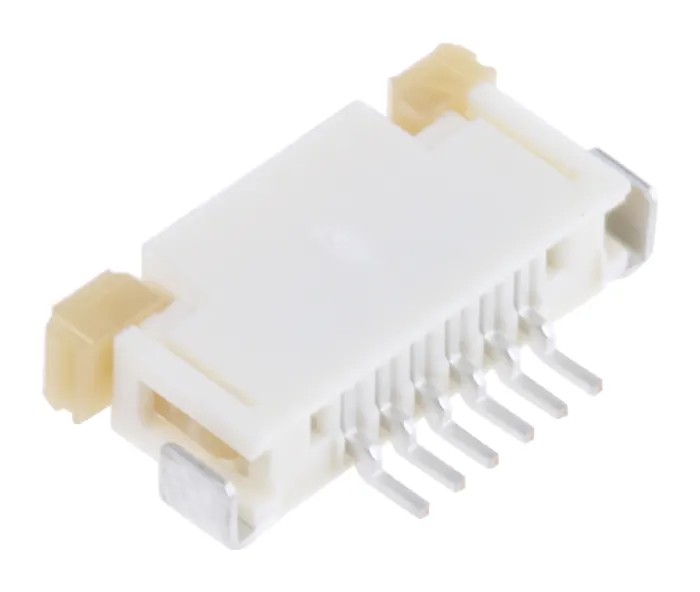

Molex 1 mm Pitch 6 Way Right Angle Female FPC Connector Solder 52207-0660

Molex 52207-0660 is a 6-way right angle female FPC (Flexible Printed Circuit) connector with a pitch of 1 mm designed for surface mount technology (SMT) applications. It features a solder termination and a slide type actuator to facilitate easy insertion of FPC cables while ensuring a secure and reliable connection. The connector is part of the 52207 series, known for space-saving and robust design.

The contacts are made of phosphor bronze with a gold over nickel plating, providing excellent conductivity and resistance to corrosion. The nylon housing ensures durability and electrical insulation. This connector supports a current rating of 1 amp and voltage up to 30 volts, suitable for various low-power electronic applications.

Its operating temperature ranges from -30°C to 85°C, making it suitable for harsh operating environments. The right angle orientation with top contact position allows efficient PCB mounting with solder tabs that secure the connector physically and provide strain relief. A locking mechanism ensures that the connection remains stable over repeated cycles. This Zero Insertion Force (ZIF) connector is reliable for applications in automotive navigation, consumer electronics, digital cameras, medical devices, and mobile phones.

Space-saving design accommodates tight packaging needs. Slide actuator with zero insertion force protects cable and contacts from wear. Guides in housing align FPC accurately for secure contact retention. Locking mechanism prevents accidental disconnection.

Solder tabs provide mechanical stability and strain relief on PCB. Robust phosphor bronze contacts ensure longevity and electrical performance. Versatile use in automotive, consumer electronics, datacom, medical, and mobile industries.

Reliable electrical characteristics with 1 A current and 30 V voltage ratings. Explore the full range of Molex FPC Connectors for your advanced electronics manufacturing needs at EnvMart.
