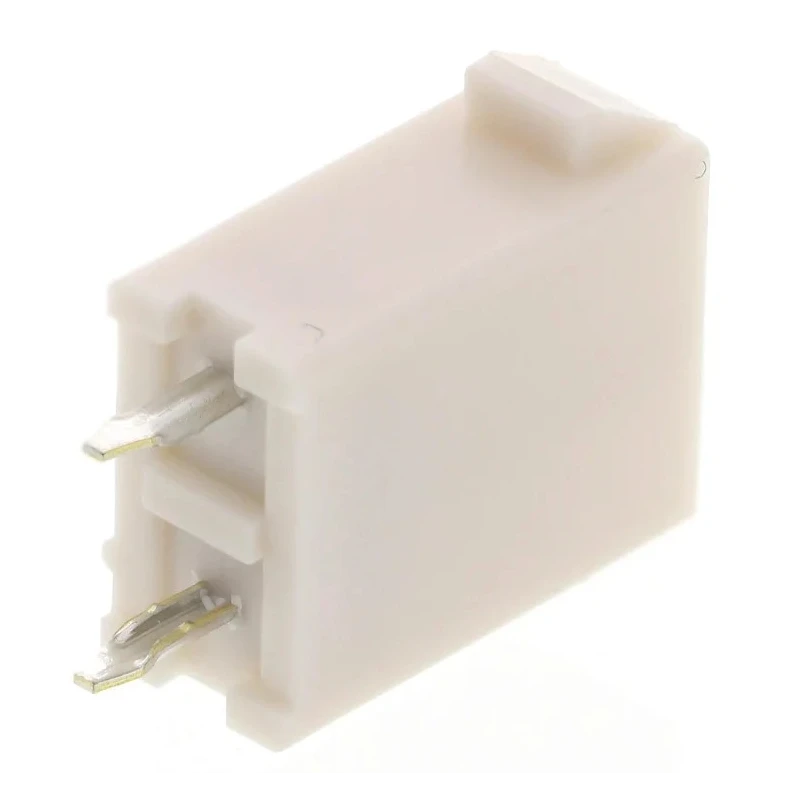

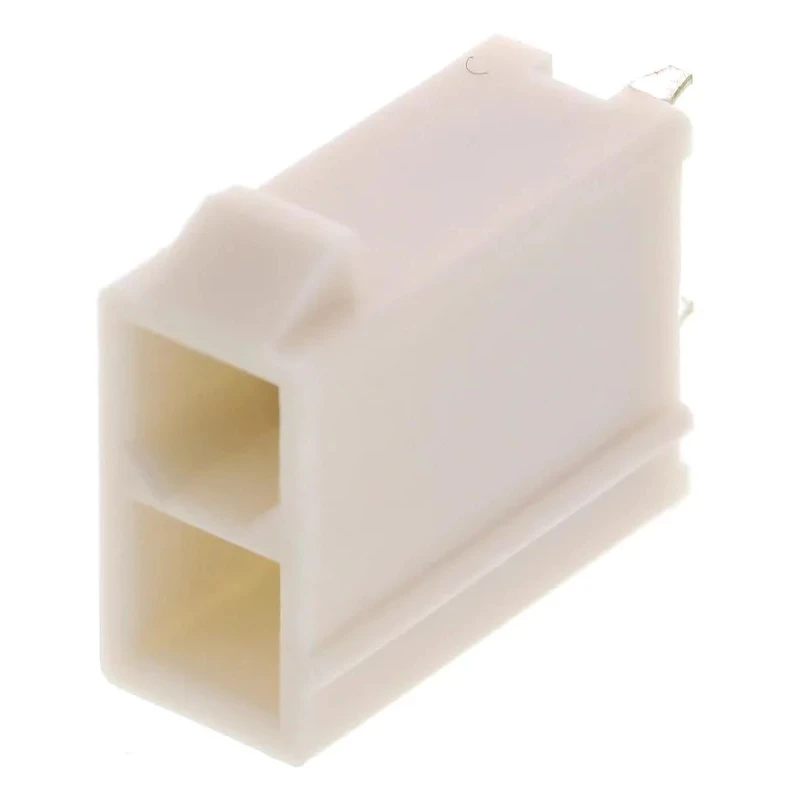

Molex Mini-Fit Jr. Series Straight Through Hole Shrouded PCB Header 2 Contacts 4.2mm Pitch 2 Row 600V 9A 39-28-8020

Free Delivery in India | Lowest Global Shipping Charges

Molex Mini-Fit Jr. Series Straight Through Hole Shrouded PCB Header 2 Contacts 4.2mm Pitch 2 Row 600V 9A 39-28-8020

Name: Molex Mini-Fit Jr. Series Straight Through Hole Shrouded PCB Header 2 Contacts 4.2mm Pitch 2 Row 600V 9A 39-28-8020
Brand: Molex
SKU: 207070
Price: 0.57 USD
Availability: InStock



Category PCB Headers Brand Molex Condition New

Specifications

Country of Origin	China
Voltage	600V
Brand	Molex
Orientation	Straight
Current	9A
Mount Type	Through Hole
Housing Material	Nylon
Contact Material	Brass
Series	Mini-Fit Jr
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Number of Rows	2
Pitch	4.2mm
Contact Plating	Tin
Number of Contacts	2
Contact Gender	Female
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Tail Pin Length	3.5mm

Key Features

Constructed with durable nylon housing ensuring reliable insulation.
Two rows of female contacts made of brass with tin plating for optimum conductivity.
Designed for through-hole mounting on PCBs with 4.2mm pitch spacing.
Solder termination type provides robust electrical and mechanical connection.
Operates reliably within temperature range of -40°C to 105°C.
Shrouded design enhances safety and prevents accidental contact.
Suitable for power applications in electronic and industrial systems.
Compatible with standard Mini-Fit female terminals for secure wire-to-board connections.

Product Description

Molex 39-28-8020 Mini-Fit Jr. Series Straight Through Hole PCB Header offers a high-quality, shrouded connector solution ideal for power distribution and wire-to-board applications in various industries. This product features a robust nylon housing with brass contacts plated in tin to ensure excellent electrical conductivity and mechanical durability.

The connector comprises two rows and two female contacts, spaced at a pitch of 4.2 mm, suitable for through-hole mounting on printed circuit boards. It supports a voltage rating of 600 volts and a current rating of 9 amperes, which makes it well-suited for handling power-intensive circuits.

The solder termination method provides a secure attachment to the PCB, while the shrouded design adds an extra layer of protection for safer operation. Operating temperature range from -40°C up to 105°C enables this header to function reliably in demanding environmental conditions.

This header is widely used in electronics manufacturing, industrial power management, and mechanical systems requiring dependable wire-to-board connections. It complies with general industry standards although it carries no specific approvals.

Durable nylon housing for insulation. Brass female contacts with tin plating ensure reliable connectivity. 4.2 mm pitch and two-row configuration for compact design. Through-hole mounting for secure PCB integration. Solder termination guarantees solid connection.

Shrouded form factor increases operational safety. Voltage rating of 600V and current rating of 9A. Reliable operation between -40°C and 105°C.

This Molex Mini-Fit Jr. PCB header is manufactured in China and is designed to meet the needs of electronic and power distribution markets. Suitable for laboratory, manufacturing, industrial, and commercial electronic applications.
