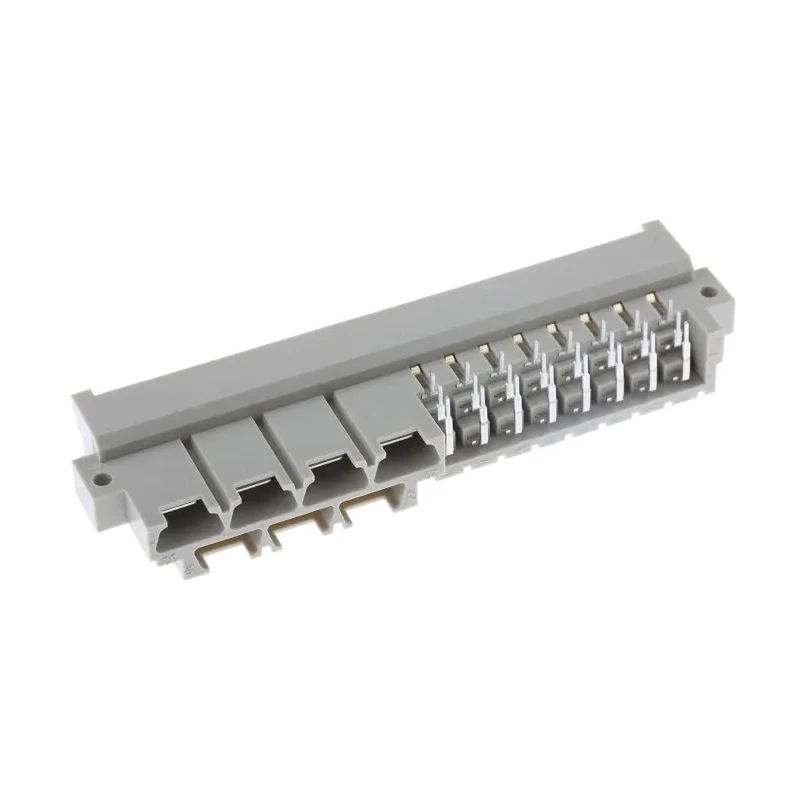

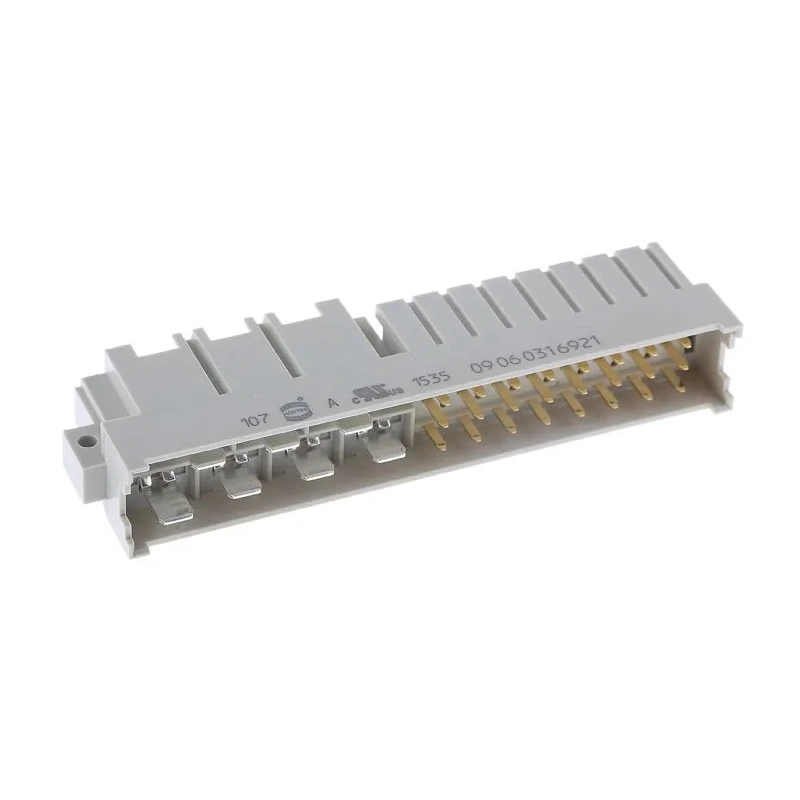

HARTING DIN 41612 64 Way 10.16 mm Pitch Through Hole Type C/2 Faston Class C2 3 Row Male Right 09060316921

Free Delivery in India | Lowest Global Shipping Charges

HARTING DIN 41612 64 Way 10.16 mm Pitch Through Hole Type C/2 Faston Class C2 3 Row Male Right 09060316921

Name: HARTING DIN 41612 64 Way 10.16 mm Pitch Through Hole Type C/2 Faston Class C2 3 Row Male Right 09060316921
Brand: HARTING
SKU: 162036



Category DIN 41612 Connectors Brand HARTING Condition New

Specifications

Country of Origin	Germany
Brand	HARTING
Orientation	Right Angle
Current	15A
Mount Type	Through Hole
Housing Material	Fibreglass Reinforced Thermoplastic
Contact Material	Copper Alloy
Series	DIN 41612
Termination Type	Faston
Maximum Operating Temperature	125°C
Sub Type	C/2
Minimum Operating Temperature	-55°C
Number of Rows	3
Pitch	10.16mm
Contact Plating	Gold over Nickel
Number of Contacts	64
Contact Gender	Male
Connector Gender	Male
Maximum Contact Resistance	8mΩ
Row Loading	B, Z, D

Key Features

This connector supports a maximum current of 15A providing reliable high current transmission.
Its gold over nickel contact plating ensures excellent electrical conductivity and corrosion resistance.
The housing is made from fibreglass reinforced thermoplastic, offering durability and insulation.
Operating temperature ranges from -55°C to 125°C, suitable for harsh environments.
The connector has a 3 row layout with type C/2 sub type and right angle orientation for versatile mounting.
Termination is via Faston blades compatible with size 250 receptacles for secure connections.
Low maximum contact resistance of 8mΩ guarantees minimal power loss.

Product Description

HARTING 09060316921 DIN 41612 connector is a robust and precise electronic component designed for power and signal connections in demanding industrial applications. This variant offers 64 way contacts arranged in 3 rows with a pitch of 10.16 mm. It features a through hole mount and Faston Class C2 termination, making it ideal for secure wire-to-board connections.

The connector's male right angled orientation helps optimize PCB space and wiring layouts. It is engineered to handle currents up to 15A, with contacts plated in gold over nickel to enhance durability and conductivity. The construction uses a fibreglass reinforced thermoplastic housing for superior mechanical strength and insulating properties suitable for industrial environments.

Designed for reliability, it operates in extreme temperatures from -55°C to 125°C, ensuring performance in harsh settings such as manufacturing, railway transportation, control cards, and power supply units. The low maximum contact resistance of 8 milliohms minimizes signal loss and heat generation, which is essential for high current applications.

This connector complies with DIN 41612 standards and is tailored for complementary high current usage, including mixed contact configurations which provide flexibility in electrical load distribution. The Faston blade terminations accept 250 size receptacles, facilitating quick and reliable field connections.

64 way, 3 row, 10.16 mm pitch DIN 41612 connector. Through hole mount with right angle male orientation. Faston Class C2 termination compatible with 250 size receptacles. Gold over nickel plated copper alloy contacts. Operating temperature from -55°C up to 125°C.

Fibreglass reinforced thermoplastic housing for durability. Maximum contact resistance 8 milliohms for reliable conductivity.

This connector is suitable for industrial, electronic manufacturing, railway transportation, and use in power supply and control units. Its robust build and electrical properties ensure long operational life and reliability. Explore the full range of DIN 41612 Connectors for diverse applications at EnvMart.
