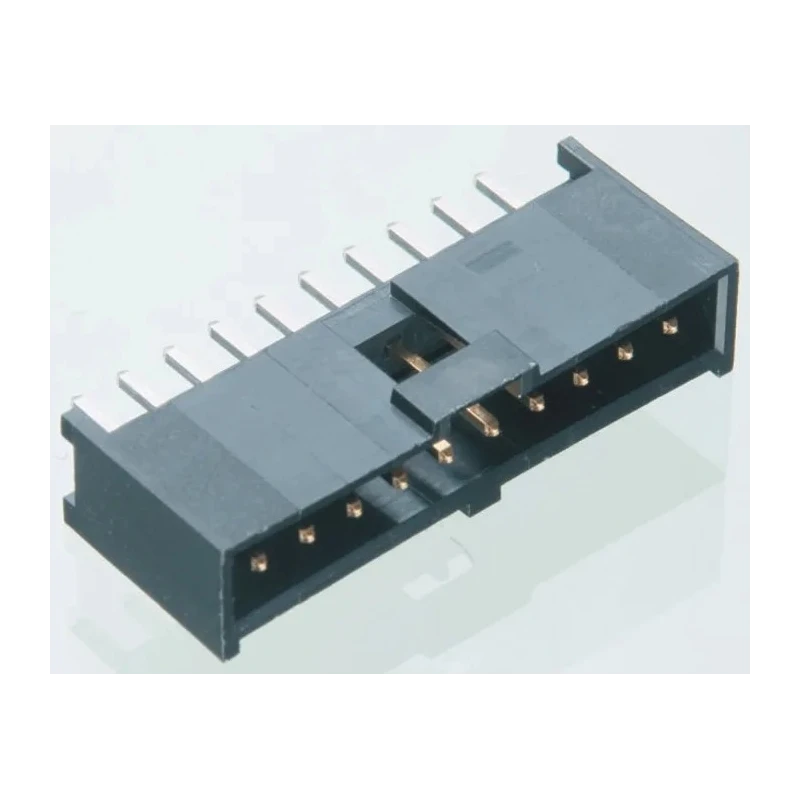

Molex C-Grid III Series Right Angle Through Hole PCB Header, 3 Contacts, 2.54 mm Pitch, 1 Row, Shrouded 90136-2203

Free Delivery in India | Lowest Global Shipping Charges

Molex C-Grid III Series Right Angle Through Hole PCB Header, 3 Contacts, 2.54 mm Pitch, 1 Row, Shrouded 90136-2203

Name: Molex C-Grid III Series Right Angle Through Hole PCB Header, 3 Contacts, 2.54 mm Pitch, 1 Row, Shrouded 90136-2203
Brand: Molex
SKU: 207067
Price: 2.13 USD
Availability: InStock



Category PCB Header Brand Molex Condition New

Specifications

Country of Origin	India
Voltage	350V
Brand	Molex
Orientation	Right Angle
Current	3A
Mount Type	Through Hole
Housing Material	Polyester
Contact Material	Brass
Series	C-Grid III
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	1
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	3
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Tail Pin Length	2.9mm
Mating Pin Length	6.75mm

Key Features

The connector features a polyester housing for durability and stability.
It supports a current rating of 3A and a voltage rating of 350V for reliable electrical performance.
The contacts are brass with gold plating ensuring excellent conductivity and corrosion resistance.
Right angle orientation facilitates compact PCB layouts and easier routing.
Tail pin length is 2.9 mm with a mating pin length of 6.75 mm customizing fit.
Designed for through hole mounting ensuring secure soldered connections.
Operation temperature range spans from -55°C to 125°C, suitable for demanding environments.
Termination type is solder, compatible with standard PCB assembly processes.

Product Description

Molex 90136-2203 C-Grid III Series Right Angle Through Hole PCB Header is a high-quality, shrouded male connector intended for wire-to-board connections in electronic systems. Operating at 3A current and 350V voltage, this PCB header features a robust polyester housing and gold-plated brass contacts to ensure durability and reliable electrical performance under industrial and commercial conditions.

This connector features a 2.54 mm pitch and is arranged in a single row with 3 contacts, making it suitable for compact and precise PCB designs. The right angle orientation supports space-saving board layouts and simplifies assembly pathways.

The tail pin length of 2.9 mm and mating pin length of 6.75 mm provide secure mechanical and electrical connection. Its through hole mount type ensures stable soldered placements on PCBs, tailored for rigorous mechanical strains.

With an operating temperature range from -55°C to 125°C, this piece is engineered to perform reliably across a wide thermal spectrum, meeting various industrial and manufacturing environments’ demands.

The shrouded feature enhances protection against electrical shorts and mechanical damage, ensuring accuracy and safety in connector placement. The solder termination method aligns with widely used PCB manufacturing standards for efficient assembly.

The connector housing material is high-grade polyester for excellent mechanical strength. All contacts are brass with gold plating to guarantee conductivity and anti-corrosion properties. Rated for wire-to-board connector systems allowing easy integration into electronic assemblies.

Meets design needs where right angle and shrouded protection are essential. Supports industrial, commercial, and manufacturing electronic applications.

Available in a secure packaging format ready for insertion into production machinery, this PCB Header from Molex enhances manufacturing efficiency and product reliability. Explore more PCB connectors and protective housings for specialized industrial electronics at EnvMart.
