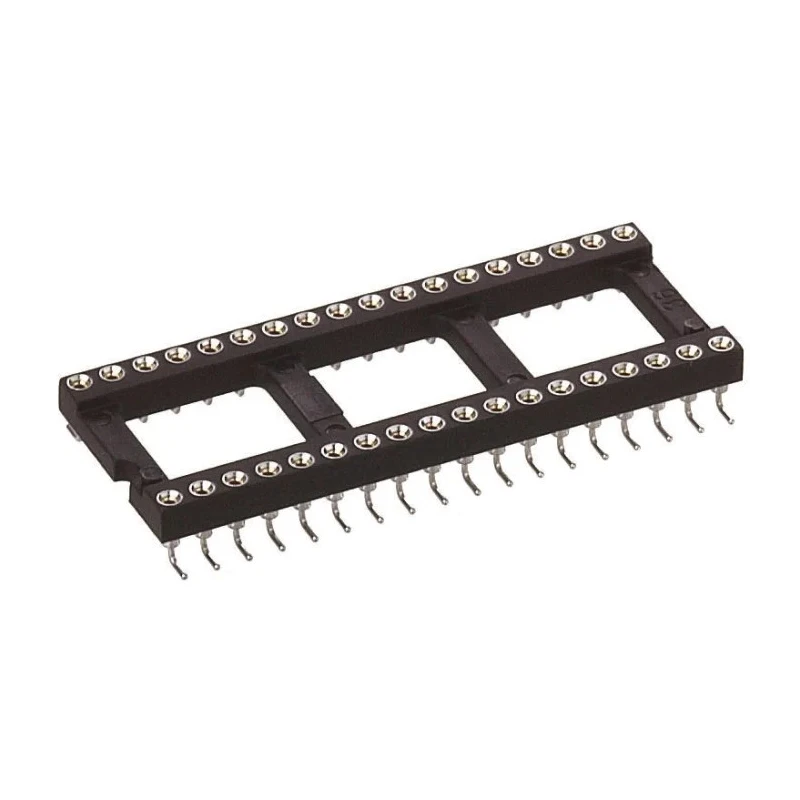

Preci-Dip 110 2.54 mm Pitch Vertical 28 Way Surface Turned Pin Open Frame DIL Socket 1A 110-87-328-41-105101

Preci-Dip 110-87-328-41-105101 is a vertical 28 way DIL socket designed with a 2.54 mm pitch suitable for surface mounting on printed circuit boards. This open frame socket features turned pins and is engineered for reliable, easy in-circuit testing and strong mechanical retention.

The contact clips are made from brass and beryllium copper alloy with gold flash plating over a tin-plated brass sleeve, providing excellent electrical conductivity and corrosion resistance. The housing is fabricated from fibreglass reinforced polyethylene terephthalate, offering durability and stability in demanding environments.

This DIL socket supports a current rating of 1 amp and a voltage rating of 100 to 150 volts AC. It operates effectively within a wide temperature range from -55°C to 125°C, making it suitable for various industrial and electronic applications.

Dimensionally, the socket measures 35.5 mm in length, 10.1 mm in width, and 2.8 mm in depth, fitting standard 28-pin configurations with a 7.62 mm row width. The surface mount termination type and vertical orientation facilitate efficient manufacturing and assembly processes.

Provides 28 contacts with a 2.54 mm pitch for precise connections. Features a surface mount design suitable for PCB reflow soldering. Constructed with brass and beryllium copper alloy contacts for durability. Open frame construction with fibreglass reinforced polyethylene terephthalate housing.

Gold and tin contact plating ensures low resistance and corrosion resistance. Operates reliably within temperature range of -55°C to 125°C. Supports a voltage rating of 100 to 150 V AC for standard applications. Designed with solder termination and vertical orientation for easy circuit placement.

Compact dimensions: length 35.5 mm, width 10.1 mm, depth 2.8 mm. Manufactured in Switzerland to high quality standards.

This DIL socket is ideal for industrial electronics manufacturing, laboratory equipment, communication systems, and other applications requiring durable, precise, and reliable IC socket connections.
