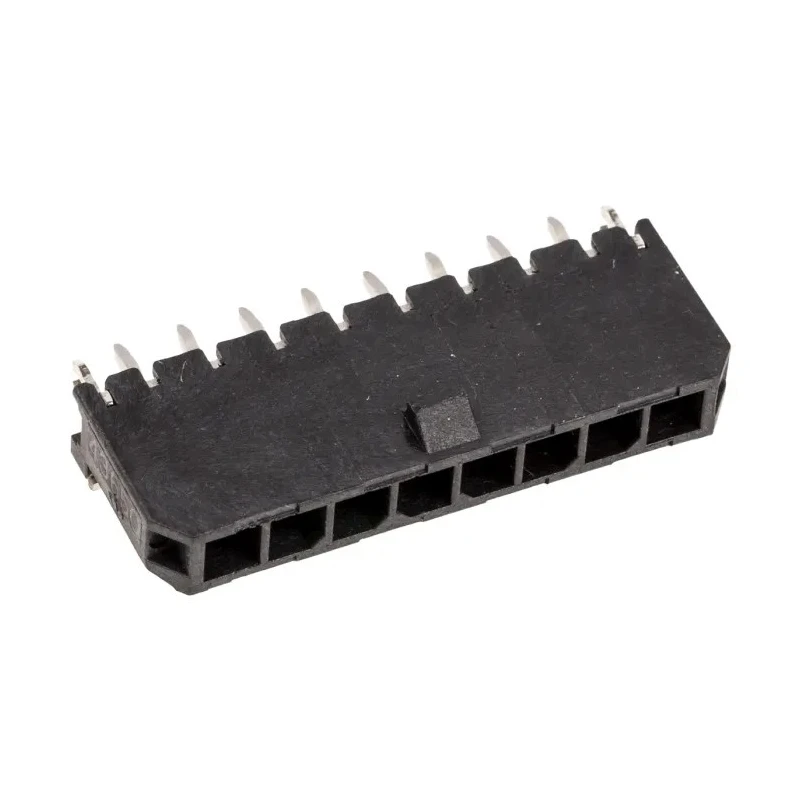

Molex Micro-Fit 3.0 Series Straight Through Hole PCB Header, 8 Contacts, 3 mm Pitch, 1 Row, Shrouded 43650-0819
Specifications
| Country of Origin | United States |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Straight |
| Current | 5A |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Brass |
| Series | Micro-Fit 3.0 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 3mm |
| Contact Plating | Gold |
| Number of Contacts | 8 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Compact power connector system with a high current carrying capacity of up to 5A.
- Housing made from high-temperature UL 94V-0 Liquid Crystal Polymer suitable for IR reflow soldering up to 265°C.
- Positive latching housing design ensures secure mating and prevents accidental disconnection.
- Solderable metal press-fit retention clips enhance PCB retention, with kinked solder legs for additional support.
- Fully isolated brass contacts with gold plating for reliable electrical performance and corrosion resistance.
- Compatible with a wide range of low to mid power applications including military, solar power, medical, and telecommunications.
- Through hole mount type with SMT compatibility reduces process requirements and costs.
- Operating temperature range from -40°C to 105°C ensures durability in various environments.
Product Description
Molex 43650-0819 Micro-Fit 3.0 Series Straight Through Hole PCB Header features 8 contacts in a single row with a 3 mm pitch and shrouded wire-to-board connector system.
The connector is designed for secure and reliable power distribution thanks to its high current carrying capability of 5A within a compact footprint. The housing material is thermoplastic UL 94V-0 Liquid Crystal Polymer, making it suitable for high-temperature infrared reflow soldering processes up to 265°C. The positive latching mechanism prevents accidental disconnection, enhancing connection reliability.
Its through hole mounting style includes solderable metal press-fit retention clips with kinked solder legs for improved PCB retention during assembly. The contacts are made of brass with gold plating to ensure excellent conductivity and corrosion resistance, and they are fully isolated within the housing to reduce electrical arcing.
These connectors are widely used in military commercial off-the-shelf (COTS) applications, solar power systems, consumer electronics, data communications, medical devices, telecommunications equipment, and gaming terminals, offering robust performance in low to mid-range power scenarios.
Compact power connector system with a high current carrying capacity of up to 5A. Housing made from high-temperature UL 94V-0 Liquid Crystal Polymer suitable for IR reflow soldering up to 265°C. Positive latching housing design ensures secure mating and prevents accidental disconnection.
Solderable metal press-fit retention clips enhance PCB retention, with kinked solder legs for additional support. Fully isolated brass contacts with gold plating for reliable electrical performance and corrosion resistance.
Compatible with a wide range of low to mid power applications including military, solar power, medical, and telecommunications. Through hole mount type with SMT compatibility reduces process requirements and costs. Operating temperature range from -40°C to 105°C ensures durability in various environments.
Explore more PCB Headers and connectors for your industrial and commercial electronics applications on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a maximum current carrying capacity of 5A.
The contacts in this connector are spaced at a pitch of 3 mm.
It operates within a temperature range of -40°C to 105°C.
The housing is made from thermoplastic UL 94V-0 Liquid Crystal Polymer, while the contacts are made of brass with gold plating.
This connector uses a through hole mounting type.
Yes, it features SMT compatibility which reduces process requirements and costs.
This model features 8 contacts in a single row.
The voltage rating for this connector is 250V.
It is compatible with a wide range of low to mid power applications including military, solar power, medical, and telecommunications.
The termination type for this model is solder.
It has a positive latching housing design that ensures secure mating and prevents accidental disconnection.
The country of origin for this model is the United States.
