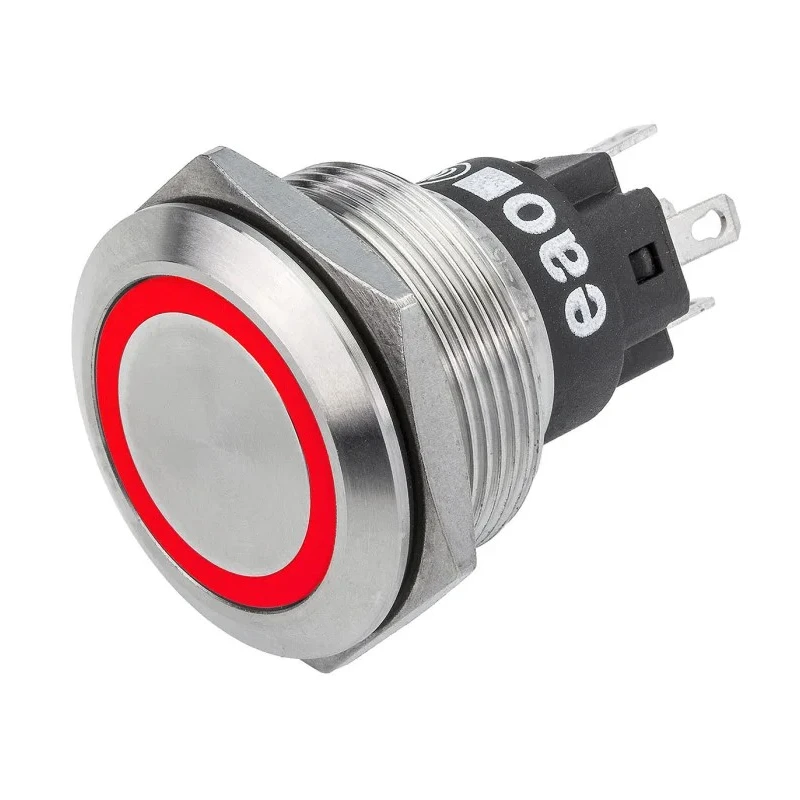

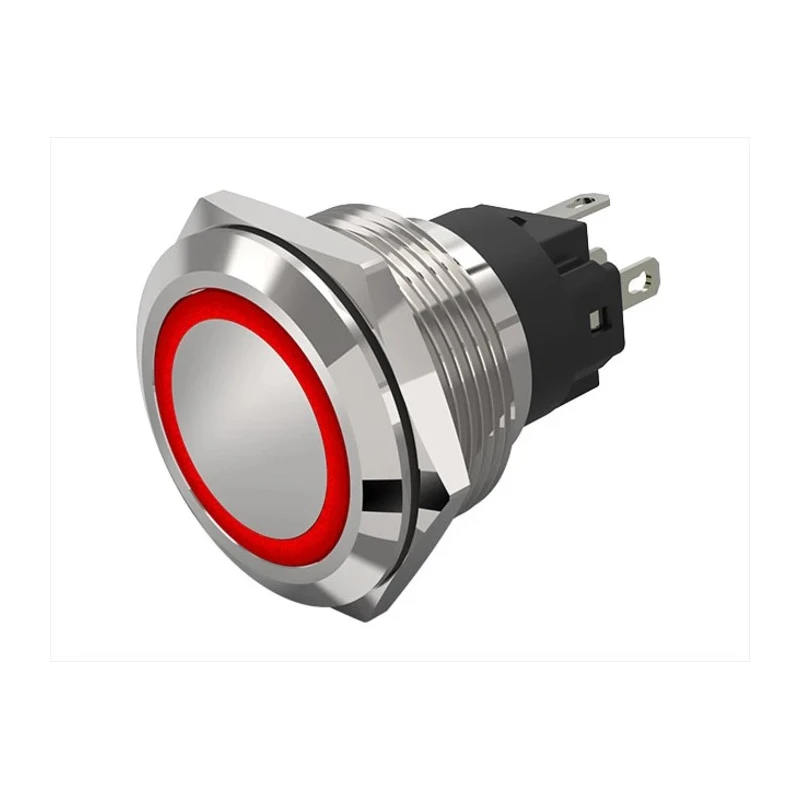

EAO Illuminated Push Button Switch Panel Mount Momentary SPDT Red LED 22.3 mm Cutout IP65 IP67 240 V 24 V AC 82-6153.1113



Category Push Button Switch Brand EAO Condition New

Specifications

Country of Origin	Switzerland
Brand	EAO
Length	34.5mm
IP Rating	IP65, IP67
Mount Type	Panel
Series	82
Maximum Operating Temperature	70°C
Contact Configuration	SPDT
Switch Configuration	Momentary, Maintained
Minimum Operating Temperature	-30°C
Panel Cutout Size	22.3 mm
Standards/Approvals	CB, CCC, cUL, UL
LED Colour	Red
Switch Operation	Momentary
Actuator Colour	Silver
Contact DC Voltage	240V
Actuator Style	Round
Switch Contact Current	3A
Contact AC Voltage	24V ac
Vandal resistant	IK10 impact resistance & frontal protection up to IP67

Key Features

The switch includes a 22.3 mm panel cutout size suitable for compact installations.
It operates with a contact DC voltage of 240 V and AC voltage of 24 V AC.
The unit has gold-plated silver contacts ensuring reliable conductivity and corrosion resistance.
The actuator is styled round and finished in silver color for clear visibility.
This push button switch supports a wide operating temperature range from -30°C to 70°C.
The switch offers IK10 vandal resistance and is highly durable with a mechanical lifespan exceeding one million operations.
It features solder terminals for secure, vibration-proof connections.
The product is IP65 and IP67 rated, providing frontal protection and sealing in demanding environments.

Product Description

EAO 82-6153.1113 Illuminated Push Button Switch is a robust panel-mounted momentary SPDT switch illuminated by a red LED for improved visibility in various lighting conditions. It is designed to fit a panel cutout size of 22.3 mm, making it ideal for compact equipment control panels.

The gold-plated silver contacts offer high conductivity and resistance to corrosion, supporting reliable electrical connection at contact voltages of 240 V DC and 24 V AC. The switch's round silver actuator provides a tactile and aesthetic interface for users.

This switch is IP65 and IP67 rated for water and dust ingress protection and carries IK10 impact resistance, ensuring suitability for harsh industrial, commercial, and public installations requiring vandal resistance.

Its wide operational temperature range from -30°C to 70°C enables use in demanding environments, including factories, offices, medical and pharmaceutical industries, and building management systems. The robust mechanical design grants a lifespan of over one million cycles, ensuring long-lasting performance.

Installation is simplified with solder terminals that secure the connection and resist vibration impacts. The slim 34.5 mm length further supports installation in space-constrained panels where compact design is essential.

The switch is suitable for industrial automation, machine control, and safety shutdown applications. Robust stainless-steel housing and illumination enhance durability and operator awareness. Vandal resistance with IK10 certification makes it appropriate for exposed public areas.

Its compact size and panel mount design optimize space utilization in control panels. Electrical specification supports switching low voltage AC/DC loads effectively. Discover a wide range of high-performance Push Button Switches and components at EnvMart for industrial, commercial, and specialized applications.
