EAO 01 Series Maintained Emergency Stop Push Button, Panel Mount, 16mm Cutout, DPST, IP65 51-259.025

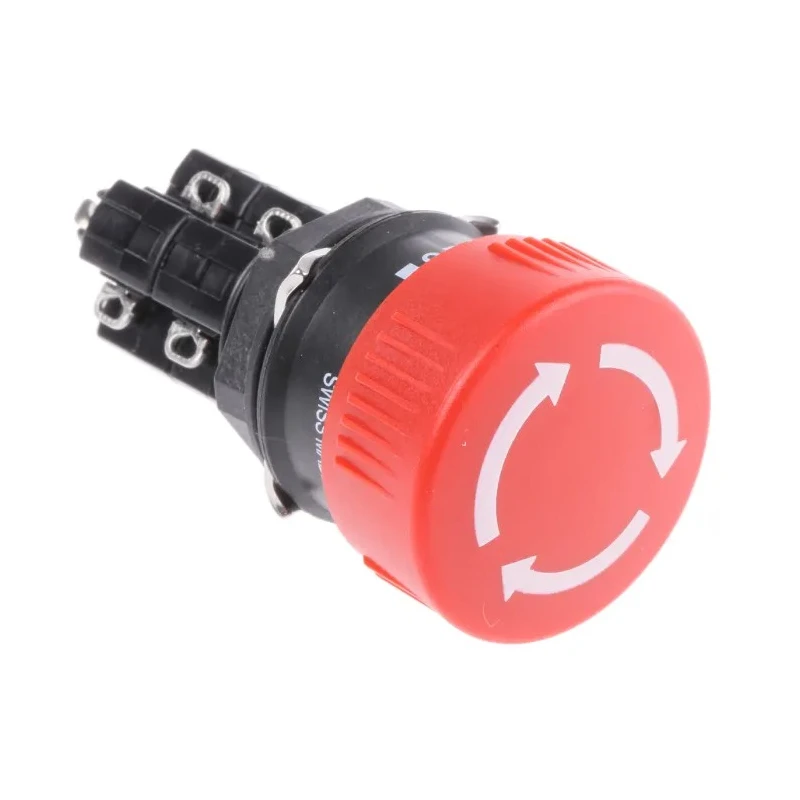

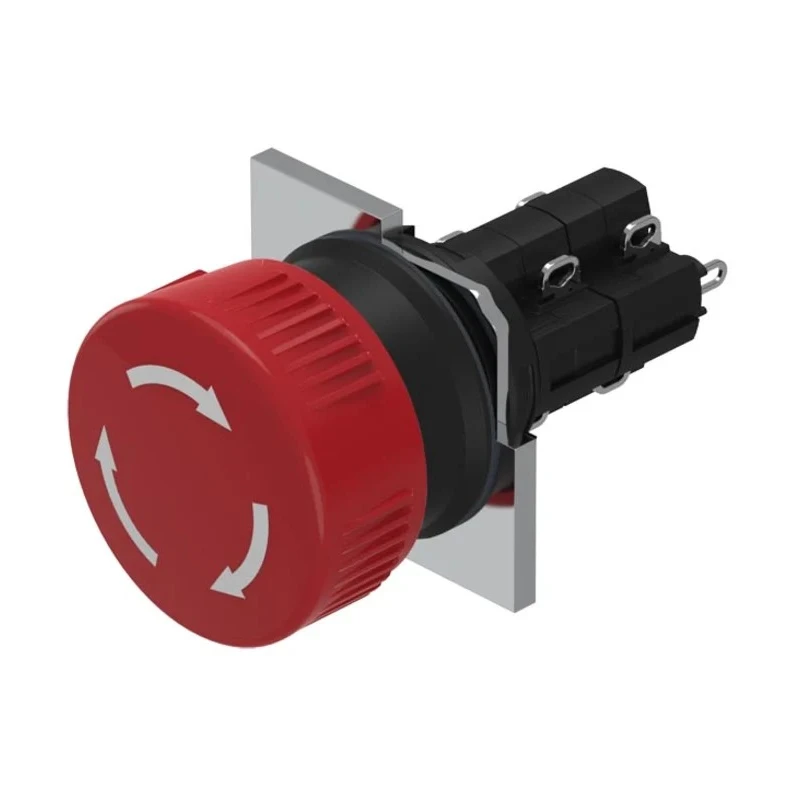

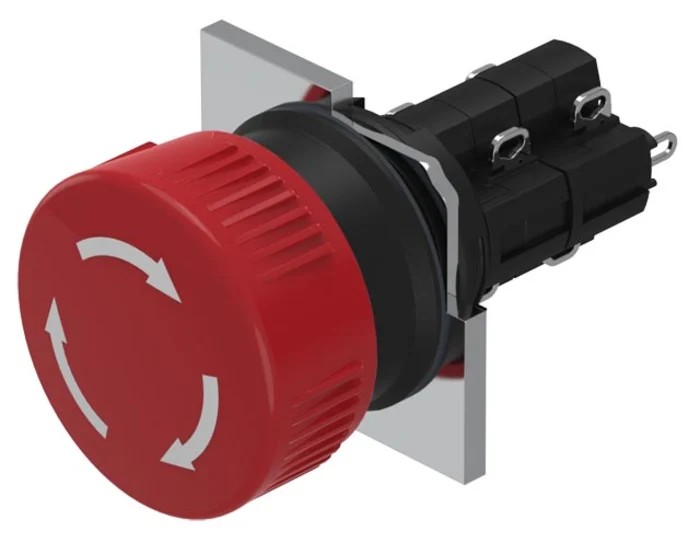

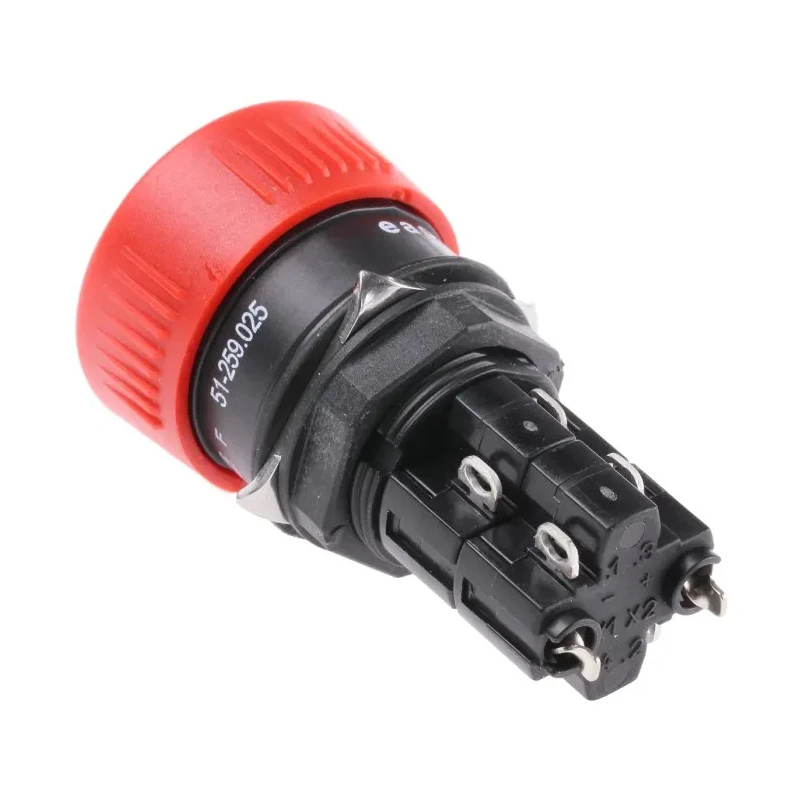

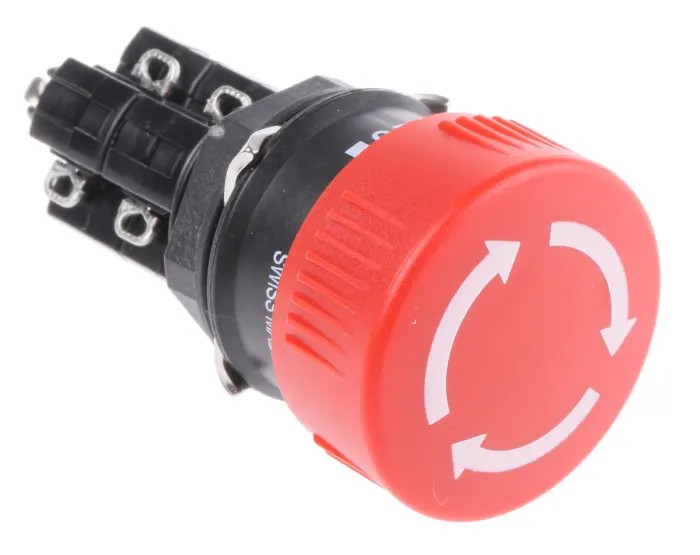

EAO 51-259.025 Maintained Emergency Stop Push Button from the 01 Series is designed for reliable industrial emergency shutdown functionality. It features a 16mm panel cutout and a 24.5mm diameter mushroom head that is easy to push during emergencies. The maintained latching actuator requires a twist to release, preventing unintended restarts after activation.

The switch offers a dual pole single throw (DPST) contact configuration, capable of switching currents up to 5A at 250V AC/DC, making it suitable for a wide range of medium-power applications. Its snap-action mechanism ensures rapid response to cut power promptly when triggered.

Constructed with a robust plastic housing and button, this push button switch is rated IP65, providing dust-tight sealing and protection against water jets. Gold-plated silver contacts enhance conductivity and resist corrosion for long-term reliable switching performance. The switch uses PCB terminals for secure and vibration-resistant wiring connections.

This compact switch has a shallow back panel depth of just 18.8 mm allowing use in tight panel enclosures without compromising safety or durability. Its bright red mushroom head is highly visible on control panels, facilitating quick identification during emergencies.

Typical industrial applications include chemical processing plants, metalworking machinery, agricultural equipment, and manufacturing industries where emergency stop functions are critical for operator safety and equipment protection.

The emergency stop push button features a 16mm panel cutout and a 24.5mm mushroom head for easy activation. It has a DPST contact configuration rated for 5A at 250V AC/DC, supporting medium-power electrical control. The push button actuation is maintained with a twist-to-release mechanism to prevent accidental restarts.

Constructed from durable plastic housing and push button material, it is resistant to dust and low-pressure water jets. The unit provides snap-action switching with gold-plated silver contacts for reliable performance and corrosion resistance.

Designed with PCB terminals for vibration-proof soldered connections in panel installation. The bright red color enhances visibility on busy control panels for safety compliance. Its compact, ergonomic design offers a shallow back panel depth of 18.8mm, optimizing installation space.

Manufactured to high standards with IP65 protection, it is suitable for industrial, manufacturing, and agricultural machinery use. Explore more high-quality EAO Emergency Stop Push Buttons and other switches on EnvMart for reliable industrial automation solutions.
