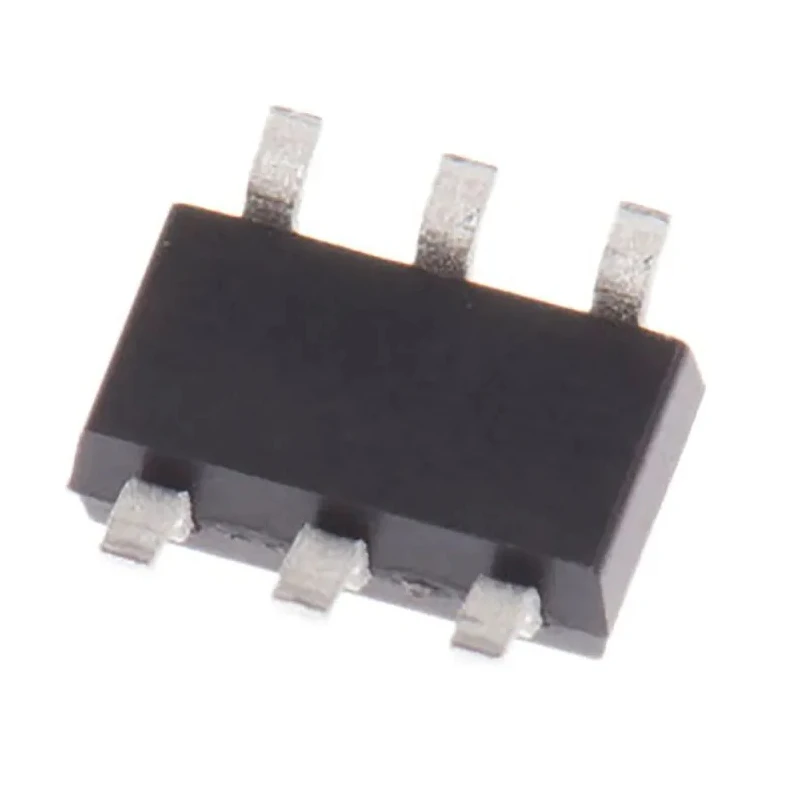

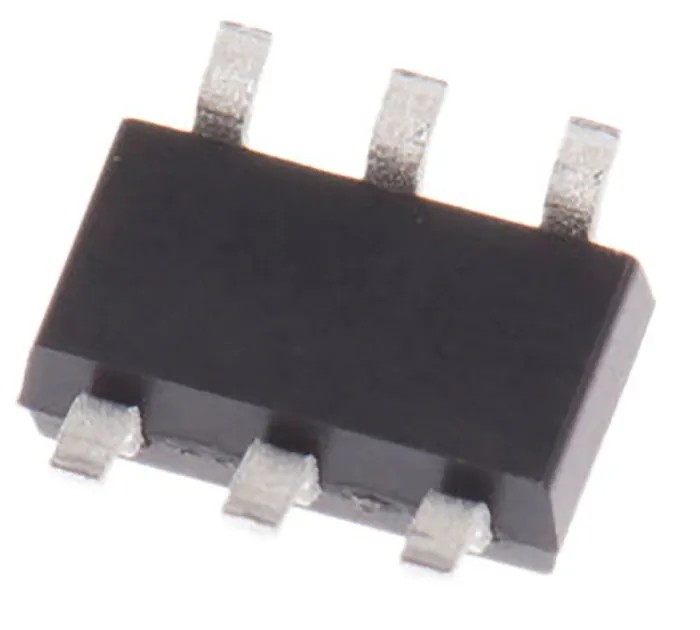

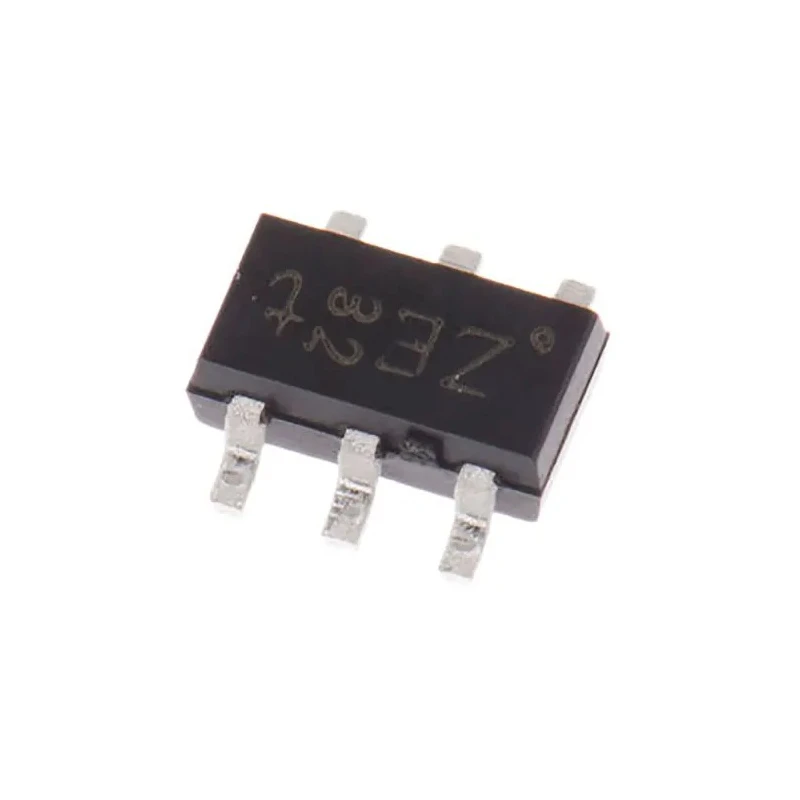

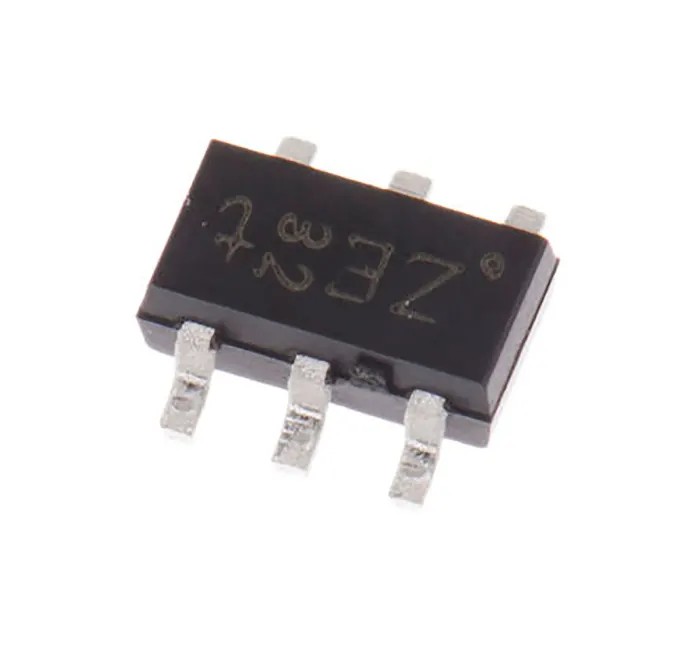

ROHM High Side Power Switch IC 6-Pin SSOP BD2242G-GTR, 0.67W Power Rating, 2.8V-5.5V Supply Voltage, Surface Mount

Name: ROHM High Side Power Switch IC 6-Pin SSOP BD2242G-GTR, 0.67W Power Rating, 2.8V-5.5V Supply Voltage, Surface Mount
Brand: ROHM
SKU: 195943
Price: 0.32 USD
Availability: InStock



Category Power Switch ICs Brand ROHM Condition New

Specifications

Country of Origin	India
Brand	ROHM
Length	2.9mm
Model	BD2242G-GTR
Width	2.8mm
Mount Type	Surface
Number of inputs	1
Series	BD2242G
Power Rating	0.67W
Maximum Operating Temperature	85°C
Package Type	SSOP
Minimum Operating Temperature	-40°C
Operating Current	168μA
Number of outputs	1
Pin Count	6
Maximum Supply Voltage	5.5V
Minimum Supply Voltage	2.8V
Switch On Resistance RdsOn	89mΩ

Key Features

The switch topology is high side, suitable for switching loads on the positive side.
It features a low switch on resistance of 89mΩ, ensuring efficient power delivery.
Designed for surface mount technology with a compact 6-pin SSOP package.
Operates over a wide temperature range from -40°C to 85°C for industrial applications.
Consists of 1 input and 1 output channel for simple control schemes.
Has an operating current of 168μA, optimized for low power consumption.
Small form factor with dimensions 2.9mm length by 2.8mm width.
Not compliant with automotive standards but suitable for general electronic power management.

Product Description

ROHM BD2242G-GTR High Side Power Switch IC 6-Pin SSOP is a surface mount device designed for efficient power management in electronic circuits. Operating with a power rating of 0.67W and a supply voltage range from 2.8V to 5.5V, it provides reliable switching of loads on the high side in various industrial and commercial applications.

The device features a low switch on resistance (RdsOn) of 89mΩ, which minimizes power losses and heat generation during operation. Its compact 6-pin SSOP package, measuring 2.9mm in length and 2.8mm in width, allows for easy integration into dense PCB layouts using surface mount technology.

This power switch IC supports 1 input and 1 output, enabling straightforward control configurations for power delivery circuits. With an operating current of 168μA and temperature range from -40°C to 85°C, it is suitable for reliable long-term use in varying environmental conditions.

Though it does not meet automotive standards, the BD2242G-GTR is optimized for general electronic power management requiring high side switching capability and compact design. The switch topology is high side, facilitating control of load power delivery.

The device operates efficiently with low RdsOn at 89mΩ. Compact 6-pin SSOP package supports surface mounting. Operates from -40°C to 85°C, suitable for industrial temperature range. Single input and output channel simplifies application circuitry.

Low operating current of 168μA conserves overall circuit power. Small dimensions allow flexible PCB integration. Ideal for high side power switching in electronic component designs.

This ROHM High Side Power Switch IC is widely used in power management IC modules, electronic component assemblies, and semiconductor applications requiring efficient and reliable on/off switching of power circuits.
