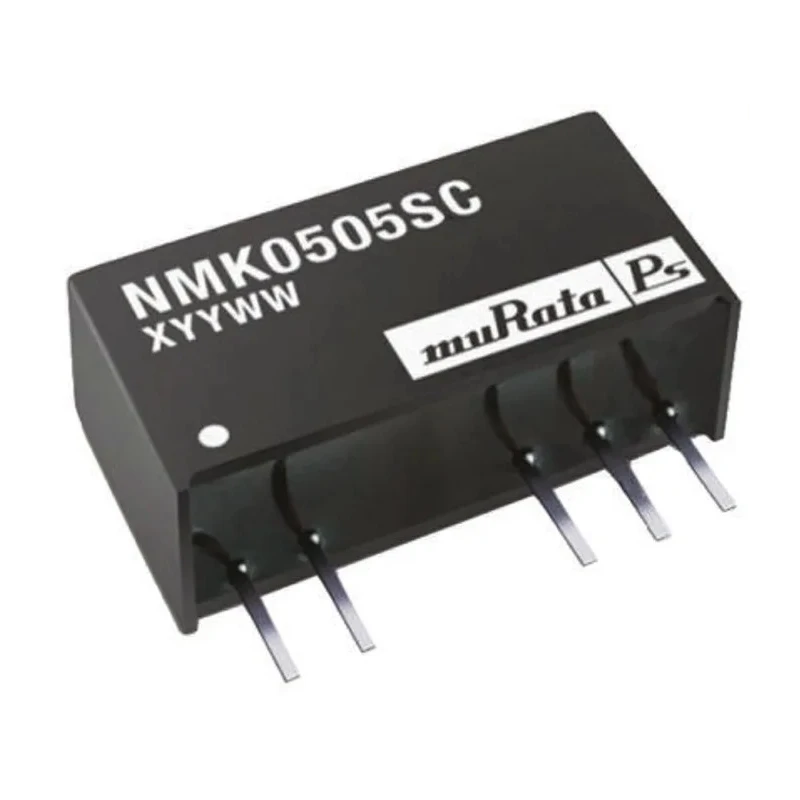

Murata Power Solutions NMK Industrial Temperature Range Unregulated Isolated DC/DC Converter 5V DC 200mA Output NMK0505SC

Murata Power Solutions NMK0505SC is an industrial temperature range, unregulated and isolated DC/DC converter engineered for reliable power conversion in demanding environments. Featuring a single or dual output in a SIP through hole package, it provides a stable 5V DC output at 200 mA with a maximum input voltage of 5.5V DC and a minimum input voltage of 4.5V DC.

This converter delivers 2 watts of power with an efficiency of up to 83%, minimizing energy loss. Its compact size with dimensions 19.6mm width, 19.5mm length, and 10mm depth allows easy integration into electronic designs, with a standard industry pinout of 7 pins.

The NMK series benefits from a wide operating temperature range from -40°C up to 85°C and an isolation voltage rating of 3kV DC, providing superior electrical isolation, reduced noise, and enhanced safety in industrial and laboratory settings.

The device employs fully encapsulated toroidal magnetics without electrolytic or tantalum capacitors, thereby enhancing durability and reliability. Its 40mV peak-to-peak ripple and noise performance guarantees clean power supply, critical for sensitive electronics.

Compliant with RoHS standards and enclosed in UL 94V-0 approved flame-retardant packaging, the NMK0505SC meets stringent industrial safety and environmental requirements. With a robust MTBF rating of 2,324,000 hours, this converter ensures extended service life.

Murata Power Solutions NMK0505SC is ideal for industrial power management, electronic components, laboratories, manufacturing equipment, and any application requiring efficient and reliable DC/DC conversion. Its through-hole SIP form factor supports easy assembly on printed circuit boards.

The converter is unregulated and isolated, providing reliable power supply solutions. Maximum input voltage of 5.5V DC and minimum input voltage of 4.5V DC ensure stable operation. Robust performance in industrial temperature range from -40°C to 85°C.

Compact SIP package with 7 pins and dimensions approx. 19.6mm width, 19.5mm length, and 10mm depth. Efficiency rating of 83% with low ripple and noise of 40mV peak-to-peak. 3kV DC isolation voltage offers high electrical isolation for safety and noise reduction.

Fully encapsulated with toroidal magnetics, no electrolytic or tantalum capacitors used. Compliance with RoHS standards and UL 94V-0 flame retardant package material. MTBF (Mean Time Between Failures) of 2,324,000 hours ensuring long-term reliability.

Suitable for industrial, laboratory, and power management applications requiring DC/DC conversion. Explore our wide selection of DC/DC Converters and power supply components at EnvMart to find suitable products for your technical and industrial applications.
