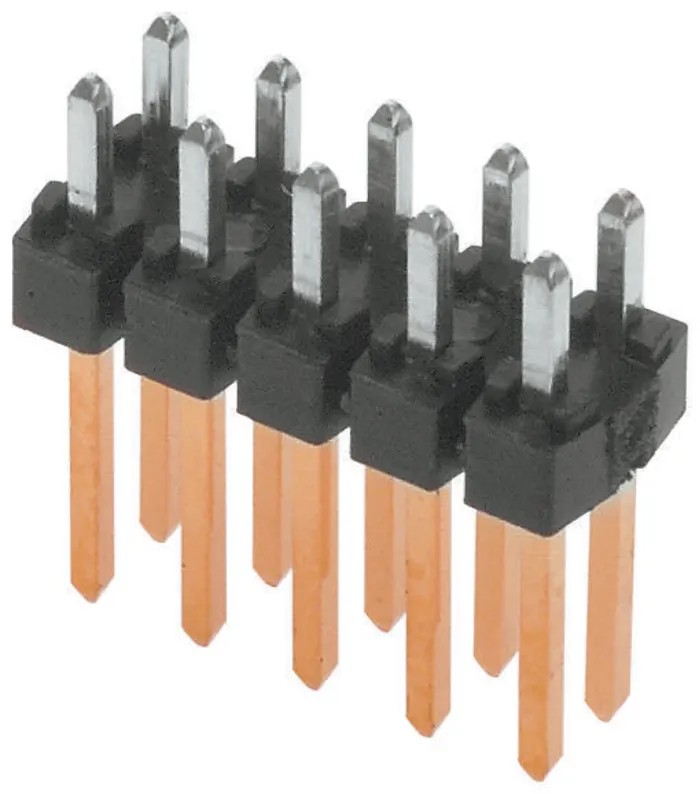

Molex C-Grid III Series Straight Through Hole Pin Header 6 Contact, 2 Row, 2.54 mm Pitch, Unshrouded 90131-0923

Molex 90131-0923 C-Grid III Series Straight Through Hole Pin Header is a precision connector designed for industrial, computer, medical, consumer, telecommunications, and transportation electronics sectors. It provides a reliable connection interface with 6 contacts arranged in 2 rows at 2.54 mm pitch, facilitating robust wire-to-board and board-to-board applications. Its unshrouded, straight orientation and through hole mount type provide mechanical strength and ease of PCB assembly.

The pin header is constructed with brass contacts and gold plating to ensure durable, high-quality electrical performance suitable for demanding environments. It supports a current rating of 3A and a voltage rating of 350V, with a wide operating temperature range from -55°C to 125°C, making it versatile for harsh industrial applications.

The header features a breakaway design, which allows customization by cutting to size, enhancing design flexibility during PCB layout and manufacturing processes. The high pin retention force guarantees a secure mating connection, maintaining mechanical stability after soldering. This product is ideal for applications in desktop PCs, servers, monitors, medical devices, white goods, industrial machinery, telecommunications infrastructure, automotive safety systems, and other precision electronics.

Designed for wire-to-board and board-to-board connectivity with robust mechanical stability. Breakaway feature to tailor connector length to design requirements. Gold-plated brass contacts for high conductivity and corrosion resistance.

Suitable for high current (3A) and voltage (350V) applications. Wide temperature operating range from -55°C to 125°C ensures reliability in extreme conditions. Male gender contacts with solder termination provide secure PCB connections.

Two-row configuration with 2.54 mm pitch for standard PCB layouts. Compatible with Molex C-Grid III series sockets and crimp housings.

This Molex pin header is a dependable choice to enhance PCB interconnections in diverse industrial, electronic, and telecommunications environments. Browse the full range of PCB Headers and connectors at EnvMart to find compatible components for your engineering projects and manufacturing needs.
