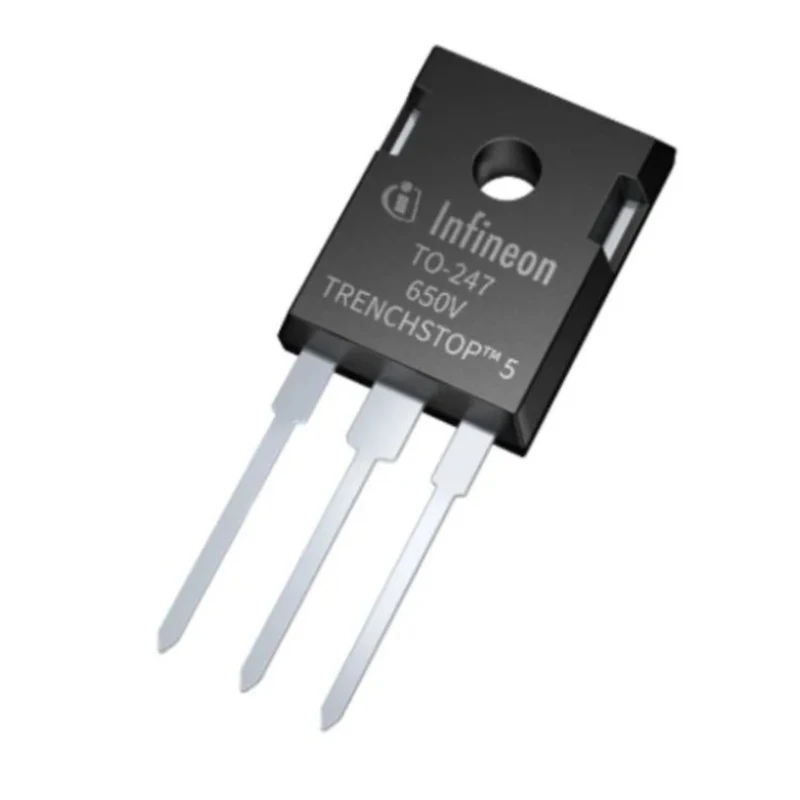

Infineon Rapid Switching Emitter Controlled Diode Single 60 A Through Hole TO-247 Package 3-Pin 650 V 142 W IDW60C65D1XKSA1

The Infineon IDW60C65D1XKSA1 is a rapid switching emitter controlled diode designed for efficient power handling and compact integration in industrial and commercial semiconductor applications. It features a 60 ampere maximum forward current and a peak reverse voltage rating of 650 volts, housed in a robust TO-247 through hole package with a 3-pin configuration.

This diode stands out with its low forward voltage drop of 1.35 V which is temperature stable, enhancing performance under thermal stress. Its swift peak reverse recovery time of 66 nanoseconds minimizes switching losses and reduces electromagnetic interference, making it ideal for power conversion and switching circuits operating between 18 kHz and 40 kHz frequencies.

With a maximum power dissipation of 142 W and a high transient surge current tolerance of 240 amperes, it is reliable for critical applications including telecom infrastructure, uninterruptible power supplies (UPS), welding equipment, adapters, household appliances, and HVAC air conditioning systems. The diode can operate in a wide temperature range from -40°C to 175°C, ensuring durability in harsh conditions.

The package measures approximately 41.42 mm in height, 16.13 mm in length, and 5.21 mm in width, allowing for optimized PCB layout and thermal management. The product complies with RoHS standards, ensuring environmental and safety compliance in manufacturing and deployment.

Designed for high efficiency with a temperature-stable forward voltage of 1.35 V. Features low reverse recovery charge and current for reduced electromagnetic interference. Peak reverse recovery time is just 66 nanoseconds for rapid switching applications.

Supports a maximum power dissipation of 142 W, suitable for demanding environments. Suitable for through hole mounting with 3-pin configuration for easy assembly. Operates reliably between -40°C to 175°C ambient temperature.

Peak non-repetitive forward surge current rating of 240 A for transient robustness. Commonly used in telecom, UPS, welding, adapter, home appliance, and air conditioning systems.

This Infineon diode is ideal for engineers and designers seeking reliable, high-performance switching semiconductors in power electronics. Browse the comprehensive selection of semiconductor components available at EnvMart for your industrial and commercial technology projects.
