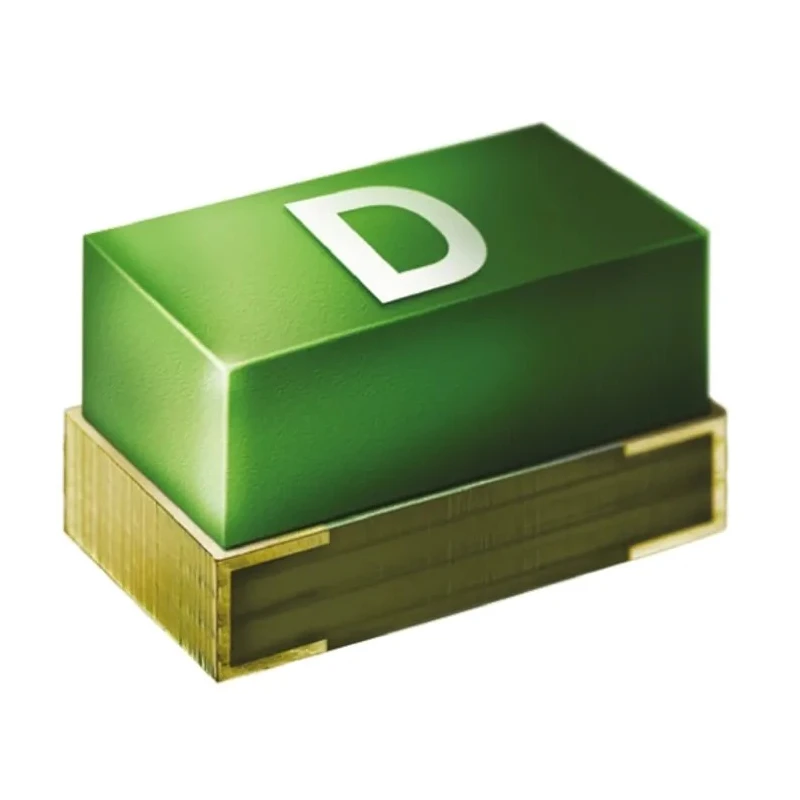

Schurter Non-Resettable Super Quick Acting Fuse 250mA, 125V AC, Epoxy Glass Body, Model 3413.0010.22
Specifications
| Country of Origin | Switzerland |
|---|---|
| Brand | Schurter |
| Body Material | Epoxy Glass |
| Height | 1.6mm |
| Depth | 3.2mm |
| Series | USFF 1206 |
| Maximum Operating Temperature | 90°C |
| Resistance | 255mΩ |
| Package Type | Reel |
| Minimum Operating Temperature | -55°C |
| Package Size | 1206 |
| Breaking Capacity | 100A |
| Terminal Material | Gold Plated Copper |
| Standards/Approvals | CE, REACH, RoHS, CSA, UL 248-14 |
| Fuse Characteristics | Super Quick Acting |
Key Features
- Compact surface mount 1206 package with epoxy glass body provides durability.
- Fuse offers a breaking capacity of 100A suitable for high-value silicon IC protection.
- Gold plated copper terminals ensure reliable connectivity and corrosion resistance.
- Wide operating temperature range from -55°C to 90°C supports diverse applications.
- Low resistance of 255mΩ minimizes power loss and heat generation during operation.
- Compliance with CE, REACH, RoHS, CSA, and UL 248-14 standards for quality assurance.
- Designed for use in computer peripherals, communication equipment, alarm systems, and medical apparatus.
Product Description
Schurter 3413.0010.22 non-resettable fuse is a surface mount device designed to provide fast-acting circuit protection with a highly compact 1206 size package. Constructed using an epoxy glass body and gold plated copper terminals, it ensures both durability and reliable electrical performance.
This fuse operates at 250mA current and 125V AC voltage, offering a breaking capacity of 100A that is ideal for protecting sensitive and high-value components such as silicon ICs. Its super quick acting fuse characteristic makes it suitable for applications requiring rapid interruption to prevent damage.
The product supports a wide operating temperature spectrum from -55°C up to 90°C, making it adaptable for varied industrial and commercial environments. Additionally, it offers very low resistance of 255mΩ, contributing to efficient power handling with minimal heat generation.
Certified for compliance with multiple international standards including CE, REACH, RoHS, CSA, and UL 248-14, this fuse meets stringent safety and environmental regulations. The 1206 package type facilitates space-saving surface mount technology, enhancing design flexibility in compact electronic assemblies.
Typical applications include circuit protection in computer peripherals, communication equipment, alarm and security systems, audio/visual hardware, power supplies, and medical devices. The fuse is supplied on a reel which improves production efficiency by supporting automated insertion into manufacturing processes.
Compact and durable epoxy glass body. Super quick acting fuse type for rapid circuit protection. Gold plated copper terminals ensure stable connection. Wide operating temperature range from -55°C to 90°C. Low resistance rating of 255mΩ for efficient operation.
Breaking capacity of 100A handles high fault currents. Complies with CE, REACH, RoHS, CSA, and UL standards. Suitable for computer, communication, medical, and security applications. Surface mount technology with 1206 package size.
Supplied on reel for easy automated assembly. Explore more high-quality circuit protection devices and Fuses at EnvMart to support your industrial and electronic applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Schurter non-resettable fuse has a breaking capacity of 100A, making it suitable for protecting high-value silicon ICs.
It operates within a wide temperature range from -55°C to 90°C, allowing it to be used in diverse environments.
The dimensions of the 1206 package are 1.6mm in height and 3.2mm in depth.
This fuse features an epoxy glass body and gold plated copper terminals, ensuring durability and reliable connectivity.
It complies with multiple standards including CE, REACH, RoHS, CSA, and UL 248-14, ensuring quality and safety.
The resistance of this model is 255mΩ, which helps minimize power loss and heat generation during operation.
It is suitable for applications in computer peripherals, communication equipment, alarm systems, and medical devices.
The fuse is supplied on a reel, which facilitates automated assembly in manufacturing processes.
This model is classified as a super quick acting fuse, designed for rapid circuit protection.
The gold plated copper terminals ensure reliable connectivity and corrosion resistance, enhancing the fuse's performance.
This fuse belongs to the USFF 1206 series, which is designed for surface mount applications.
The voltage rating of this fuse is 125V AC, making it suitable for various electronic applications.
