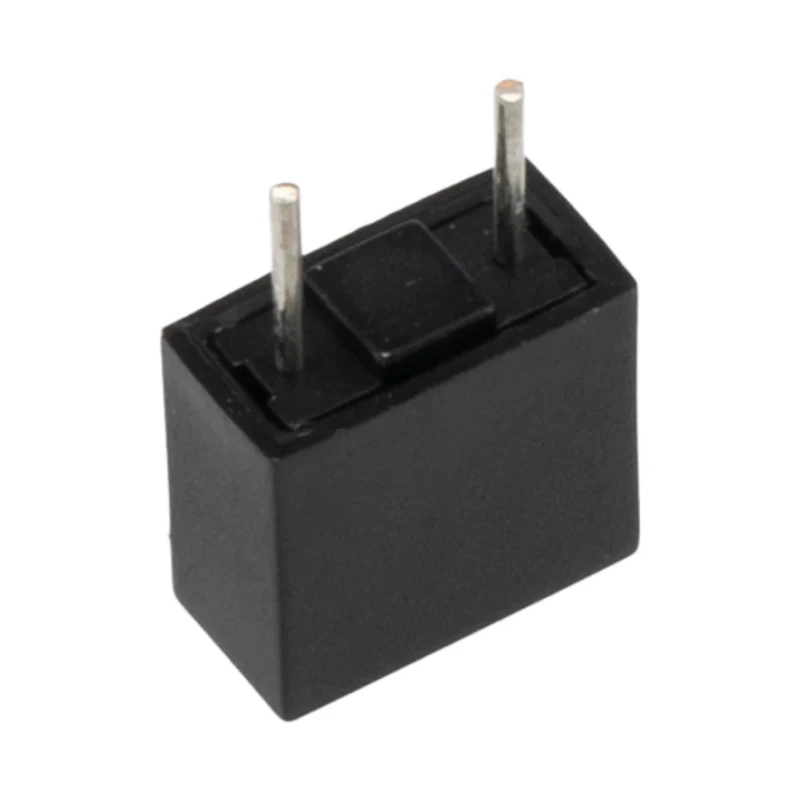

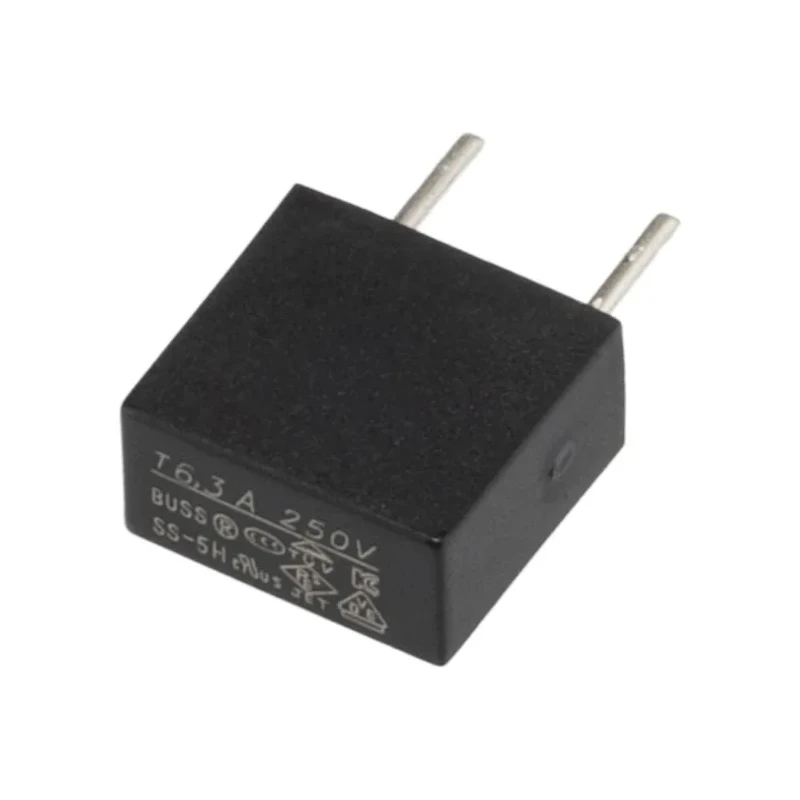

Eaton Radial Lead Time Delay Fuse 6.3A 250V AC Plastic Body SS-5H-6-3A-BK

Eaton SS-5H-6-3A-BK fuse is a radial lead, time delay device designed for overcurrent protection in electrical and electronic circuits operating up to 250V AC. Its 6.3 ampere rating supports continuous operation, allowing temporary surge currents without nuisance interruptions, making it ideal for circuits with high inrush currents.

The fuse features a robust plastic body that insulates and protects the fuse element, with precise radial leads of 0.6mm diameter and 4.3mm length, simplified for accurate printed circuit board (PCB) mounting and soldering.

With compact dimensions measuring 8.5mm in length, 4.3mm in width, and 8.35mm in height, this fuse integrates seamlessly into compact electronic assemblies. Its time delay T-speed characteristic enhances its ability to avoid false tripping during temporary surges while safely interrupting sustained faults with a rated breaking capacity of 100A.

Designed to function reliably in harsh environments, the fuse operates across a wide temperature range from -40°C to +125°C. Eaton’s SS-5H series fuse complies with critical international safety and quality standards such as TUV, IEC 6017, IEC60174, VDE, RoHS, MIL Standard 0F, UL 94V0 flammability rating, PSE, and KC mark, ensuring it meets demanding industrial and commercial requirements.

This fuse is ideally suited for protecting power supplies and control panels with high inrush currents, automation modules, and consumer electronic devices requiring slow-blow protection. It is also effective for safeguarding motor-driver circuits on PCBs.

The 6.3A continuous rating supports normal circuit operation without nuisance trips. Time delay characteristic tolerates temporary inrush currents effectively. Rated to interrupt fault currents up to 100A, limiting damage during high-fault conditions.

Radial 0.6mm diameter leads with 4.3mm length enable easy PCB mounting and soldering. Plastic body material ensures insulation and durability in electrical assemblies. Operates reliably in temperature range from -40°C to +125°C for wide thermal resilience.

Complies with multiple international standards including TUV, IEC 6017, VDE, RoHS, and UL 94V0 flammability rating. Compact dimensions (8.5mm length, 4.3mm width, 8.35mm height) for efficient PCB integration. Suitable for power supplies, control panels, automation modules, and motor-driver circuit protection.

Choose Eaton SS-5H-6-3A-BK for reliable circuit protection meeting stringent industrial and commercial standards. Explore more high-quality Fuses and electrical components on EnvMart for your application needs.
