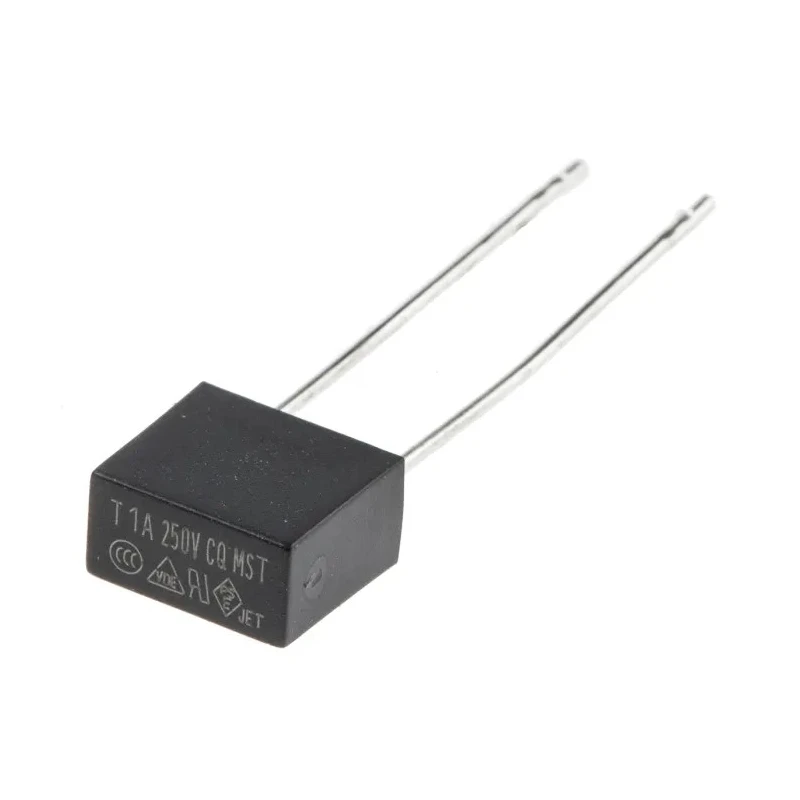

RS PRO Non-Resettable Radial Fuse 1A 250V AC Time Delay Thermoplastic TE5 Series 767-5049
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | 250V ac |
| Diameter | 0.62mm |
| Brand | RS PRO |
| Body Material | Thermoplastic |
| Height | 7.7mm |
| Length | 8.35mm |
| Model | 767-5049 |
| Width | 4.3mm |
| Current Rating | 1A |
| Series | TE5 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Lead Length | 22mm |
| Breaking Capacity | 35A |
| Standards/Approvals | CSA, RoHS |
| Fuse Characteristics | Time Delay |
| Lead Orientation | Radial |
Key Features
- Constructed with thermoplastic body material for durability.
- Radial lead orientation allows easy PCB mounting.
- Capable of breaking current up to 35A safely.
- Operates reliably between -55°C and 125°C temperature range.
- Complies with CSA and RoHS standards for safety and environmental compliance.
- Compact size with dimensions 8.35mm length, 4.3mm width, 7.7mm height.
- Designed with tin-plated copper round pins for excellent conductivity.
- Series TE5 fuse suitable for slow blow applications.
Product Description
RS PRO 767-5049 is a non-resettable radial fuse designed for reliable circuit protection with a 1A current rating and 250V AC operating voltage. Featuring time delay fuse characteristics, it is well-suited to protect sensitive electronics against transient current surges while permitting short duration current spikes without blowing prematurely.
This fuse features a black thermoplastic body constructed from UL 94-V0 rated material, ensuring flame retardancy and durability. Its radial lead orientation with tin-plated copper pins simplifies mounting on printed circuit boards. The fuse dimensions are 8.35mm in length, 4.3mm in width, and 7.7mm in height, with a lead length of 22mm and lead diameter of 0.62mm, making it compact and versatile for various applications.
Certified to CSA and RoHS standards, the RS PRO 767-5049 fuse assures compliance with stringent safety and environmental requirements. It withstands operating temperatures from -55°C up to 125°C, making it adaptable for harsh industrial and commercial environments. The fuse's breaking capacity is rated at 35A, providing reliable interruption in case of overload or short circuit conditions.
Additional robustness is evident with tests for vibration per MIL-STD-202G Method 201 and salt spray resistance to ensure dependable performance in demanding conditions. Resistance to solder heat and thermal shock testing further enhance its reliability during manufacturing and operation.
Constructed with a thermoplastic polyamide body providing flame resistance. Radial lead fuse simplifies PCB mounting and installation. Rated current of 1A with standard AC voltage of 250V. Slow blow time delay characteristic allows brief current surges without fuse blowout.
Endures operating temperatures ranging from -55°C to 125°C. Breaks current safely up to 35A. Compliant with CSA and RoHS standards. Tested for mechanical and environmental durability using MIL-STD standards. Compact size ideal for electronic, electrical, industrial, and automation applications.
Manufactured in Taiwan, Province Of China.
This RS PRO non-resettable fuse is ideal for circuit protection in industrial automation, electrical panels, electronic equipment, HVAC systems, and manufacturing controls where high reliability and compliance are critical. It represents a low-maintenance protection solution against circuit overcurrents.
Explore the broad selection of Fuses and circuit protection devices from RS PRO at EnvMart for trusted performance in demanding industrial and electronics applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The fuse has a current rating of 1A.
It can operate at a maximum temperature of 125°C.
The breaking capacity is rated at 35A.
The dimensions are 8.35mm in length, 4.3mm in width, and 7.7mm in height.
It features a thermoplastic body material that provides durability and flame resistance.
The fuse has a radial lead orientation, which simplifies PCB mounting.
It complies with CSA and RoHS standards for safety and environmental compliance.
The minimum operating temperature is -55°C.
The lead length is 22mm and the lead diameter is 0.62mm.
This fuse is designed for circuit protection in industrial automation, electrical panels, and electronic equipment.
It features a time delay characteristic, allowing it to handle short duration current surges without blowing.
It is manufactured in Taiwan, Province Of China.
