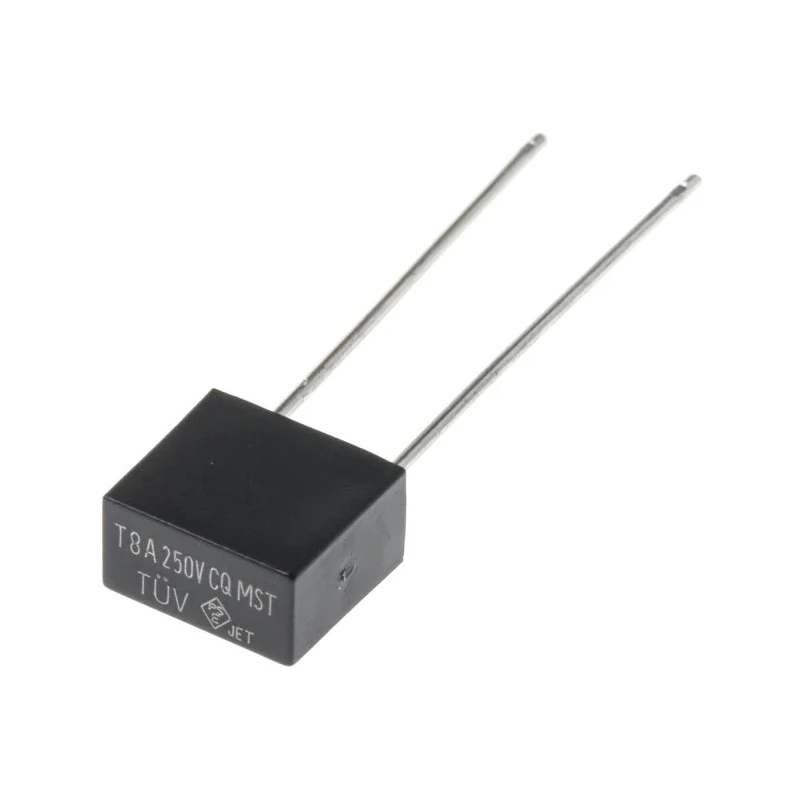

RS PRO Non-Resettable Fuse, Radial Lead, 8A Current Rating, 250V AC, Time Delay TE5 Series 767-5077

RS PRO 767-5077 Non-Resettable Fuse is a radial lead, time delay fuse rated at 8A current and 250V AC voltage, designed for protecting electrical circuits from overload and short circuits. This fuse is built with high-quality black thermoplastic Polyamide bodies that comply with UL 94-V0 for excellent flame resistance, providing safe and durable electrical protection.

The fuse features a compact form factor with dimensions of 8.35mm length, 4.3mm width, and 7.7mm height, making it suitable for dense PCB layouts. The 22mm lead length and 0.62mm diameter tin-plated copper round pins ensure reliable and secure electrical connections.

It operates reliably within a wide temperature range from -55°C minimum to 125°C maximum, demonstrating robust thermal stability. The breaking capacity of 35A guarantees that the fuse can safely interrupt fault currents without damage to the circuit.

This product conforms to internationally recognized standards including CSA and RoHS, ensuring environmental compliance and safety. The TE5 series fuse offers slow blow characteristics, ideal for applications that experience surges or temporary overloads without nuisance fuse operation.

Additional ruggedness is provided by verified vibration and thermal shock resistance according to MIL-STD-202G test methods, making this fuse appropriate for industrial, electrical automation, HVAC, manufacturing, and general-purpose electrical use cases where durability and reliability are critical.

Rated current of 8 amperes designed for time delay applications. Radial lead orientation facilitates easy and secure PCB mounting. Constructed with black thermoplastic body material for excellent insulation. Compact dimensions: 8.35mm length, 4.3mm width, and 7.7mm height.

Operating temperature range from -55°C to 125°C ensures reliable performance. Breaking capacity of 35 amperes prevents circuit damage during faults. Complies with CSA and RoHS standards for quality assurance. Series designation TE5 for slow blow fuse characteristics.

Lead length of 22mm with tin-plated copper round pins for good conductivity. Certified vibration and thermal shock resistance per MIL-STD-202G standards.

This RS PRO fuse is suitable for use in industrial electrical panels, automation controls, HVAC systems, instrumentation, and manufacturing equipment that require dependable fuse protection to maintain operational safety and prevent equipment damage. Explore the range of RS PRO Fuses at EnvMart to find suitable protection solutions for your electrical design needs.
