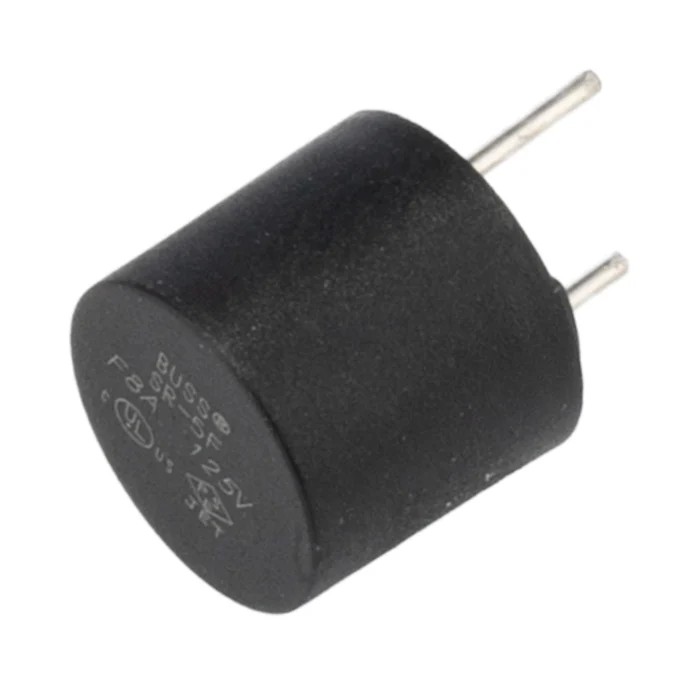

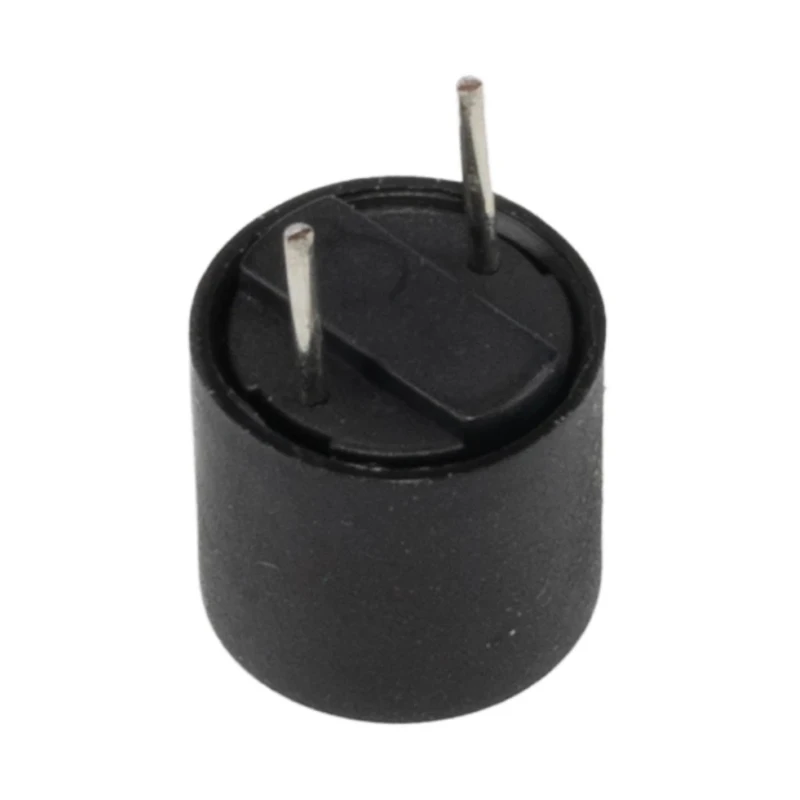

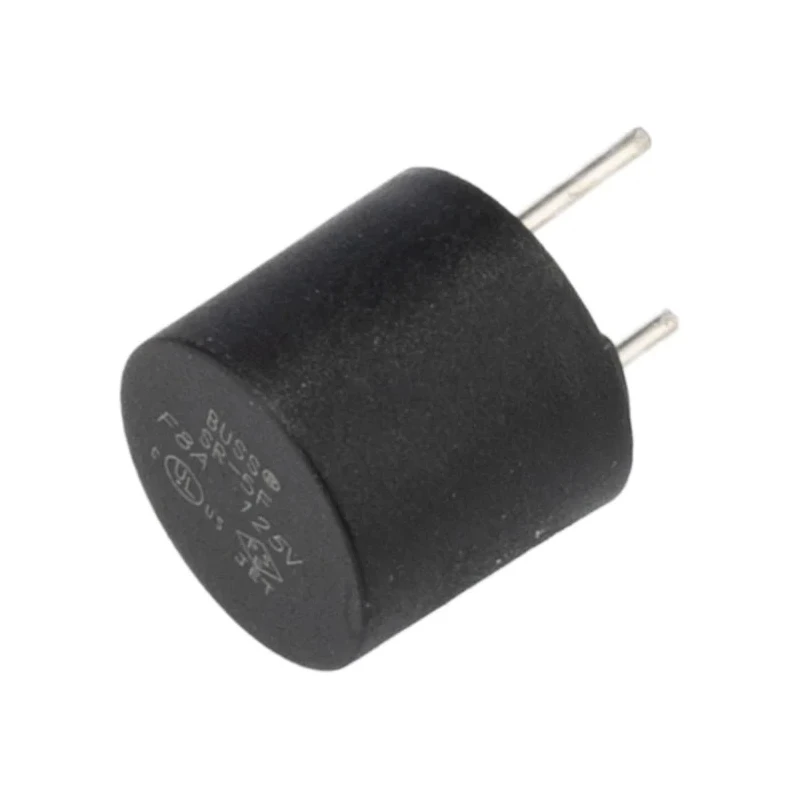

Eaton Electrical Fuse Radial Mount 8A Current Rating 125V AC Fast Acting SR-5F-8A-BK
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 125V ac |
| Diameter | 8.5mm |
| Brand | Eaton |
| Body Material | Plastic |
| Height | 8.7mm |
| Length | 12.9mm |
| Model | SR-5F-8A-BK |
| Width | 8.7mm |
| Current Rating | 8A |
| Series | SR-5F |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Lead Length | 21mm |
| Breaking Capacity | 50A |
| Standards/Approvals | UL |
| Lead Diameter | 0.6mm |
| Fuse Characteristics | Fast Acting |
| Lead Orientation | Radial |
Key Features
- Fast acting fuse characteristic ensures rapid fault interruption.
- Rated for 125V AC suitable for control voltage networks.
- Radial lead orientation supports through-hole mounting on PCBs.
- Plastic body offers lightweight construction and visible inspection.
- Operates between -40°C and 125°C for wide temperature applications.
- Breaking capacity of 50A protects against high fault currents.
- Lead diameter of 0.6mm and length of 21mm for soldering compatibility.
- Compact dimensions with diameter 8.5mm and width 8.7mm for enclosure clearance.
Product Description
The Eaton SR-5F-8A-BK fuse is a high-quality radial mount electrical fuse designed for industrial and electronic assemblies. It provides a reliable 8A current rating and operates at 125V AC, making it suitable for a variety of low-voltage control and signal circuits.
Featuring a fast acting fuse characteristic, it delivers swift fault interruption to protect sensitive components and prevent damage. The fuse’s breaking capacity of 50A allows it to handle high fault current scenarios effectively.
This fuse is constructed with a plastic body for lightweight handling and easy visual inspection during assembly. Its radial lead orientation with 0.6mm diameter leads and 21mm length enables straightforward through-hole mounting and soldering compatibility on printed circuit boards.
Designed to function across a broad temperature range from -40°C to 125°C, it is well suited for diverse environmental conditions typically encountered in automation, electrical systems, and industrial machinery.
Compact in size, with dimensions approximately 8.5mm diameter and 8.7mm width, the fuse fits well within constrained enclosure spaces while maintaining effective current protection.
This Eaton SR-5F series fuse finds applications in PCB-mounted protection for automation controllers, power supply module input protection, relay board safeguard, and protection for motor control electronics, as well as service panels in test and measurement rigs.
Fast acting fuse characteristic delivers quick fault interruption to protect electronics. Rated for 125V AC, suited for common control voltage environments. Radial lead orientation allows easy through-hole board mounting.
Plastic body reduces weight and facilitates visual inspection during assembly. Wide operating temperature from -40°C to 125°C supports diverse applications. 50A breaking capacity protects against high fault currents. Lead dimensions of 0.6mm diameter and 21mm length ensure soldering compatibility.
Compact size with 8.5mm diameter and 8.7mm width for easy integration.
Explore more Fuses and circuit protection devices in the Electronics & Electricals category on EnvMart to find components that meet your industrial automation and electrical design requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Eaton SR-5F-8A-BK fuse has a current rating of 8A.
This fuse is rated for 125V AC, making it suitable for low-voltage control and signal circuits.
The breaking capacity of this fuse is 50A, allowing it to handle high fault current scenarios effectively.
The fuse has a diameter of 8.5mm and a width of 8.7mm, with a length of 12.9mm.
The lead length is 21mm with a diameter of 0.6mm, ensuring compatibility for soldering.
It operates effectively between -40°C and 125°C, suitable for diverse environmental conditions.
This model features a fast acting fuse characteristic, ensuring rapid fault interruption.
The body of this fuse is constructed from plastic, which facilitates lightweight handling and visual inspection.
The fuse has a radial lead orientation, which supports through-hole mounting on printed circuit boards (PCBs).
This fuse is compliant with UL standards, ensuring it meets specific safety and performance criteria.
It is suitable for PCB-mounted protection in automation controllers, power supply modules, and motor control electronics.
The fuse is manufactured in China.
