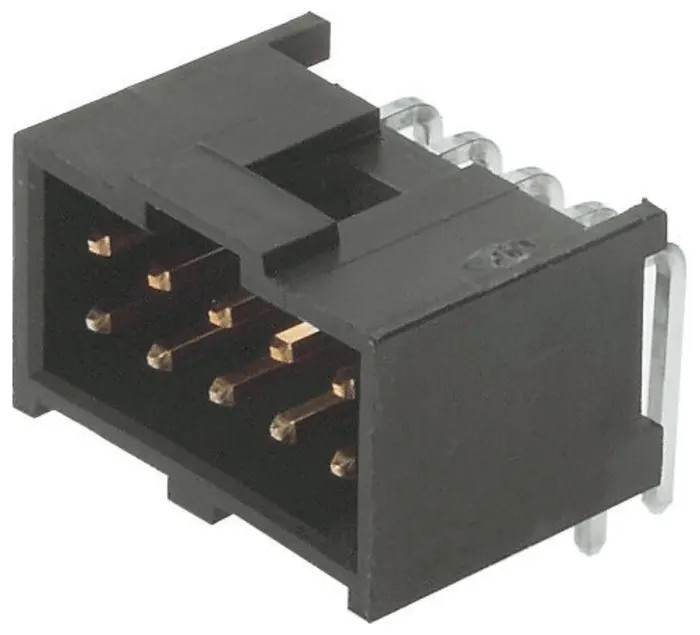

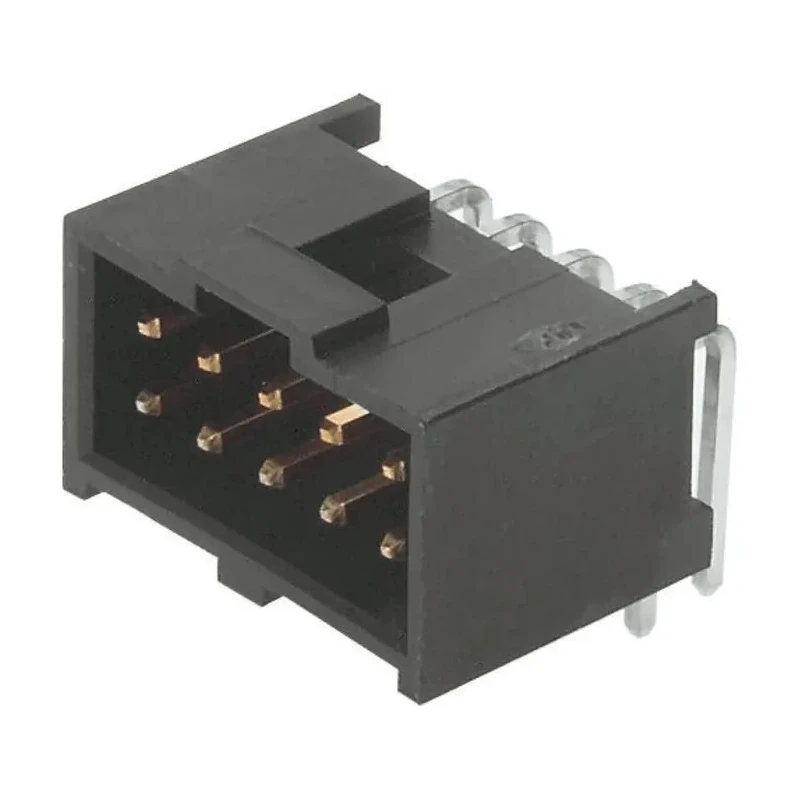

Molex C-Grid III Series Right Angle Through Hole PCB Header 10 Contacts 2.54 mm Pitch Shrouded 90130-3110

Free Delivery in India | Lowest Global Shipping Charges

Molex C-Grid III Series Right Angle Through Hole PCB Header 10 Contacts 2.54 mm Pitch Shrouded 90130-3110

Name: Molex C-Grid III Series Right Angle Through Hole PCB Header 10 Contacts 2.54 mm Pitch Shrouded 90130-3110
Brand: Molex
SKU: 206720
Price: 2.15 USD
Availability: InStock



Category PCB Headers Brand Molex Condition New

Specifications

Country of Origin	India
Voltage	350V
Brand	Molex
Orientation	Right Angle
Current	3A
Mount Type	Through Hole
Contact Material	Brass
Series	C-Grid III
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Tin
Number of Contacts	10
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Tail Pin Length	2.9mm

Key Features

Operates at a current rating of 3A for reliable performance.
Features shrouded contacts with brass material and tin plating for durability.
Through hole mount type ensures strong mechanical and electrical connection.
Designed for operation over a temperature range of -55°C to 125°C.
Solder termination with 2.9 mm tail pin length for secure PCB assembly.
Supports voltage up to 350V for varied electronic applications.
Right angle orientation facilitates compact PCB layouts and locking housing compatibility.
Suitable for industrial, electronics manufacturing, and assembly applications.

Product Description

Molex 90130-3110 C-Grid III Series is a shrouded right angle through hole PCB header designed for secure wire-to-board connections and enhanced mechanical retention. It features 10 male contacts arranged in 2 rows with a 2.54 mm pitch and a tail pin length of 2.9 mm. The brass contacts plated with tin provide excellent conductivity and corrosion resistance.

This connector operates at currents up to 3A and voltages up to 350V, supporting electronics operating under demanding conditions. It is designed to operate within a temperature range from -55°C to 125°C, making it suitable for industrial electronics environments.

The through hole mounting style offers robust physical connection to printed circuit boards, while the right angle orientation allows for efficient PCB layout and tight component placement. This series is compatible with locking housings for increased retention and reliability in assemblies.

Applications of the Molex C-Grid III Series include industrial equipment, electronic manufacturing, embedded systems, and other electronic assemblies requiring dependable wire-to-board connectors.

Operates with a current rating of 3A. Uses brass contact material with tin plating. Mount type is through hole with solder termination. Temperature range from -55°C to 125°C. Rated voltage up to 350V. Right angle orientation with 2 rows and 10 contacts.

Pitch spacing of 2.54 mm compatible with standard PCB footprints. Explore more PCB Headers and electronic connectors at EnvMart for your industrial and manufacturing needs.
