MEAN WELL 1 Output Dimmable LED Driver, 225 V Output Voltage, 150 W Max Power, 900 mA Constant Current, Potentiometer IP67

Free Delivery in India | Lowest Global Shipping Charges

MEAN WELL 1 Output Dimmable LED Driver, 225 V Output Voltage, 150 W Max Power, 900 mA Constant Current, Potentiometer IP67

Name: MEAN WELL 1 Output Dimmable LED Driver, 225 V Output Voltage, 150 W Max Power, 900 mA Constant Current, Potentiometer IP67
Brand: MEAN WELL
SKU: 182550



Category LED Driver Brand MEAN WELL Condition New

Specifications

Country of Origin	India
Brand	MEAN WELL
Model	IP67
IP Rating	IP67
Mount Type	Screw
Series	ELG-150-C
Configuration	Encapsulated
Sub Type	LED Driver
Operating Modes	Constant Current
Number of outputs	1
Terminal type	Wire
Maximum Output Power	150W
Input Voltage	180, 295, 255, 417V ac
Output Voltage	225V
Power Dissipation	149.8W
Standards/Approvals	CB, CE:CCC, cULus Recognized, EN61347-1, EN61347-2-13, ENEC, PFC, UL8750
Dimming Operation	Potentiometer
Primary Type	AC-DC, DC-DC
Driver Current	900mA
Standards/ApprovalsCB, CE	CCC, cULus Recognized, EN61347-1, EN61347-2-13, ENEC, PFC, UL8750
CB, CE	CCC, cULus Recognized, EN61347-1, EN61347-2-13, ENEC, PFC, UL8750

Key Features

Fan-less design offers high efficiency and quiet operation.
Encapsulated construction with IP67 rating ensures robust protection against dust and water.
Operates over a wide input voltage range between 180V and 417V AC.
Supports potentiometer dimming for flexible brightness control.
Suitable for constant current mode LED lighting applications.
Compliance with international safety standards including CB, CE, CCC, UL, and EN61347 series.
Compact metal housing enables easy mounting with screw terminals.
Built-in active power factor correction (PFC) enhances electrical efficiency.

Product Description

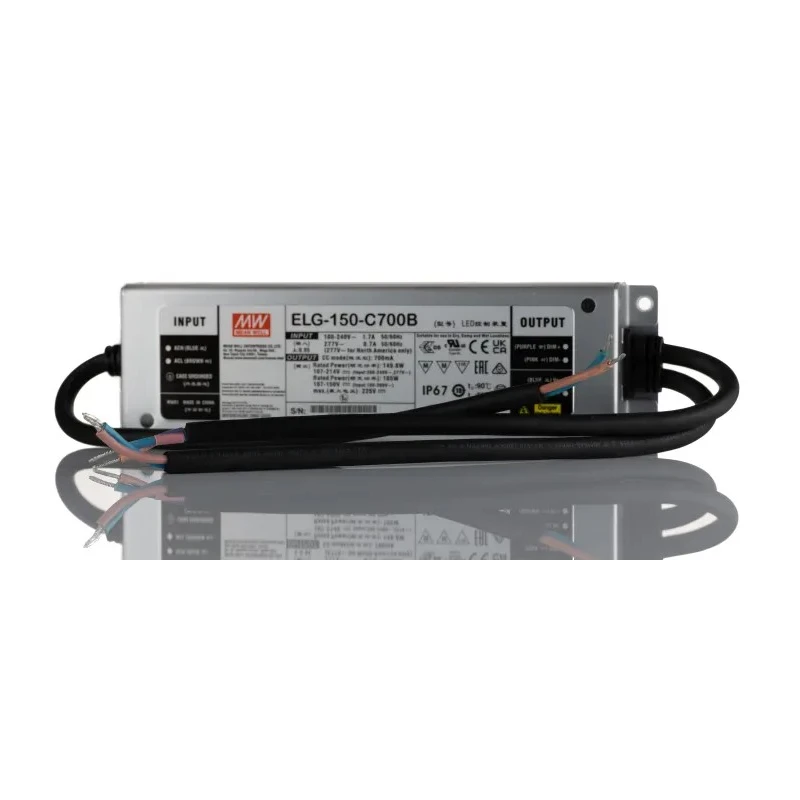

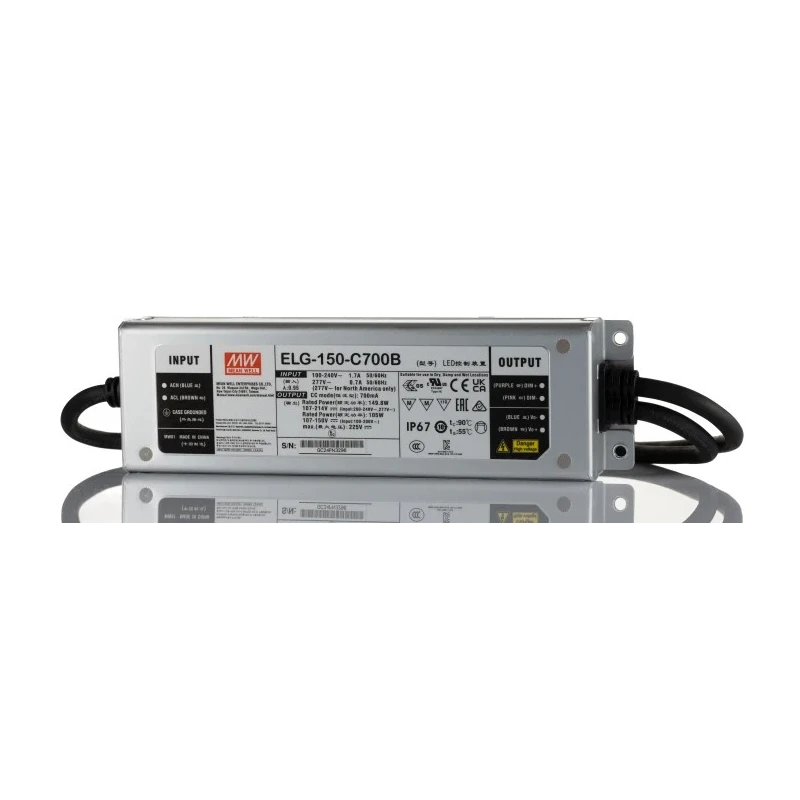

MEAN WELL ELG-150-C700B is a high-performance IP67-rated 1 output LED driver designed to deliver a constant current of 900mA and maximum output power of 150W. With an output voltage of 225V, this LED driver is engineered for durability and high efficiency with a fan-less design ensuring silent operation and enhanced reliability.

The driver supports an input voltage range between 180V AC and 417V AC, making it suitable for diverse power supply conditions. Encapsulated in a robust full metal housing, it offers protection against dust and water ingress, rated to IP67, ensuring suitability for indoor and outdoor lighting applications.

This device includes potentiometer dimming operation, enabling users to adjust LED brightness conveniently. The product meets rigorous industry standards such as CB, CE, CCC, UL, and EN61347-1 and -2-13, confirming its safety and quality compliance.

With built-in active power factor correction, it promotes efficient power usage. The mounting method uses screws and wire terminals, facilitating straightforward installation.

Typical applications include LED street lighting, architectural lighting, bay lighting, and floodlighting in industrial, commercial, and outdoor environments where reliable and efficient LED power supply is critical.

Fan-less design provides high efficiency and silent operation. IP67 rated encapsulation protects against dust and water. Wide input voltage range from 180V to 417V AC. Potentiometer dimming enables flexible brightness adjustment.

Constant current driver output at 900mA. Meets CB, CE, CCC, UL, and EN61347 safety standards. Compact metal housing with screw mounting and wire terminals. Built-in active power factor correction for efficient energy use.

Suited for LED street, architectural, bay, and flood lighting applications. Explore more innovative LED Drivers from MEAN WELL available on EnvMart for your industrial and commercial lighting projects.
