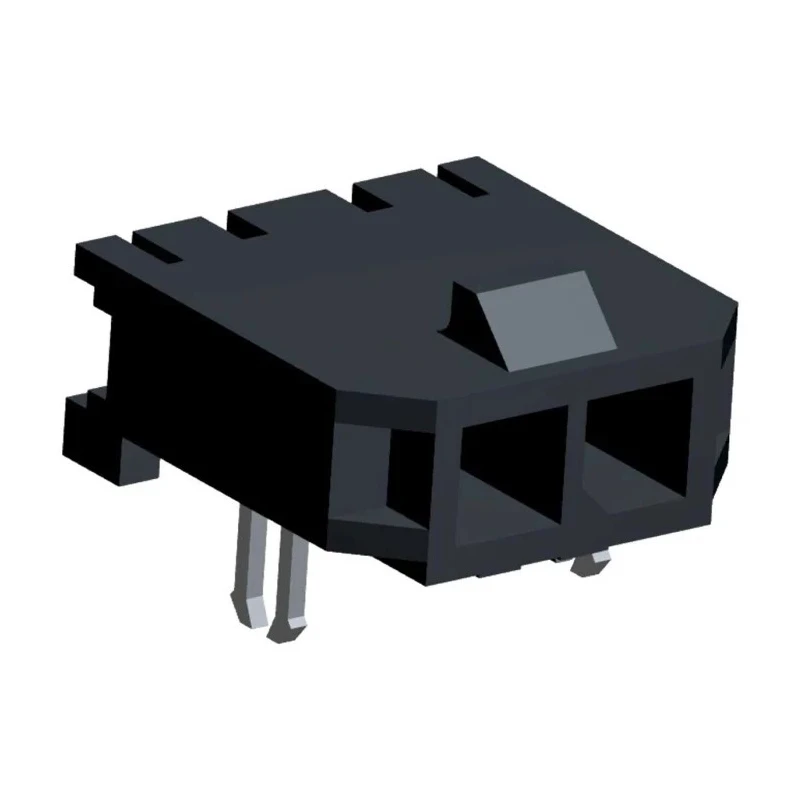

Molex Micro-Fit 3.0 Series Right Angle Surface PCB Header 2 Contact, 3 mm Pitch, 1 Row, Shrouded 43650-0209
Specifications
| Country of Origin | Mexico |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 5A |
| Mount Type | Surface |
| Housing Material | High Temperature Thermoplastic |
| Contact Material | Brass |
| Series | Micro-Fit 3.0 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 3mm |
| Contact Plating | Tin |
| Number of Contacts | 2 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- High current carrying capacity up to 5A in a compact 3 mm pitch spacing.
- Right angle orientation with shrouded housing for secure mating connection.
- Surface mount type suitable for PCB applications with solder termination.
- Constructed from high temperature thermoplastic housing for IR reflow soldering compatibility.
- Brass male contacts plated with tin for durability and conductivity.
- Operating temperature range from -40°C to 105°C ensuring stable performance.
- Features positive latching and solderable metal press-fit retention clips.
- Designed for wire-to-board connector system in low to mid power applications.
Product Description
Molex 43650-0209 Micro-Fit 3.0 Series Right Angle Surface PCB Header is a compact, high-performance wire-to-board connector designed for reliable power distribution in electronic applications. Featuring a 3 mm pitch and 1 row with 2 male contacts, this shrouded header is ideal for low to mid power use cases requiring up to 5A current capacity.
The housing is made from high temperature thermoplastic material capable of withstanding IR reflow soldering temperatures up to 265°C. The right angle orientation facilitates flexible PCB assembly layouts, while the press-fit metal retention clips ensure secure retention on the PCB during soldering and operation.
Contacts are made of brass with tin plating, fully isolated within the housing to minimize arcing and provide dependable electrical performance. The connector system offers a positive latching mechanism using a locking ramp to prevent accidental disconnections in demanding environments.
This PCB header is suitable for use in military commercial off-the-shelf systems, solar power, telecommunications, data communications, medical equipment, consumer electronics, and gaming terminals. Its durable construction and operating temperature range of -40°C to 105°C ensure reliable function across diverse industrial, laboratory, and commercial applications.
High current carrying capacity up to 5A in a compact footprint. Right angle, surface mount design with shrouded housing for safety and secure connections. High temperature thermoplastic housing compatible with IR reflow soldering.
Press-fit metal retention clip and kinked solder legs for enhanced PCB retention. Fully isolated brass contacts plated with tin to ensure electrical integrity. Positive latching connection prevents accidental disconnection.
Wide operating temperature range from -40°C to 105°C. Compatible with SMT and through-hole PCB mounting reducing assembly costs. Manufactured in Mexico under strict quality standards. Explore the Electronics & Electricals category at EnvMart for more PCB connectors and headers optimized for power and signal applications across various industries.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current carrying capacity of up to 5A, making it suitable for low to mid power applications.
The pitch size of this PCB header is 3 mm, allowing for compact connections in electronic applications.
The housing is made from high temperature thermoplastic, while the contacts are brass plated with tin for enhanced durability and conductivity.
It operates within a temperature range of -40°C to 105°C, ensuring stable performance across various environments.
This unit is designed for surface mount applications, featuring solder termination for secure attachment to PCBs.
It provides a wire-to-board connection system, which is ideal for reliable power distribution in electronic applications.
Yes, it includes press-fit metal retention clips and kinked solder legs to ensure secure retention on the PCB during operation.
The header features a right angle orientation, facilitating flexible PCB assembly layouts.
This model has 2 male contacts, allowing for effective electrical connections in applications.
Yes, it is compatible with IR reflow soldering temperatures up to 265°C due to its high temperature thermoplastic housing.
It is suitable for various applications including military systems, solar power, telecommunications, medical equipment, and consumer electronics.
This PCB header is manufactured in Mexico under strict quality standards.
