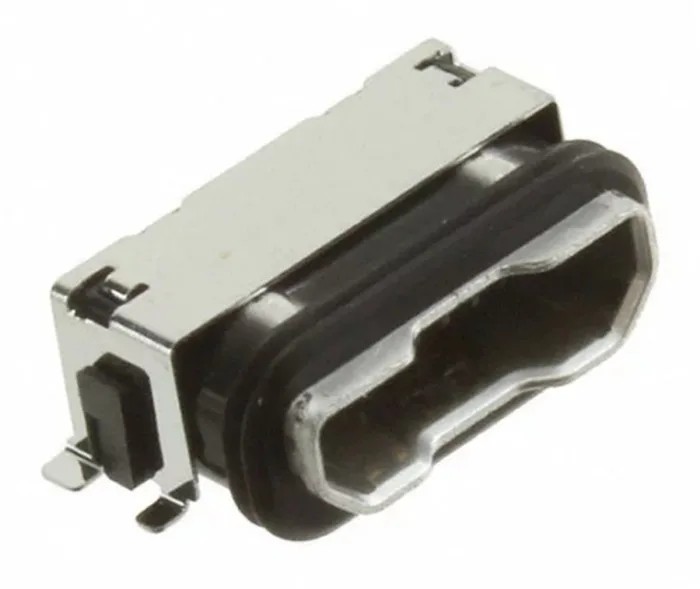

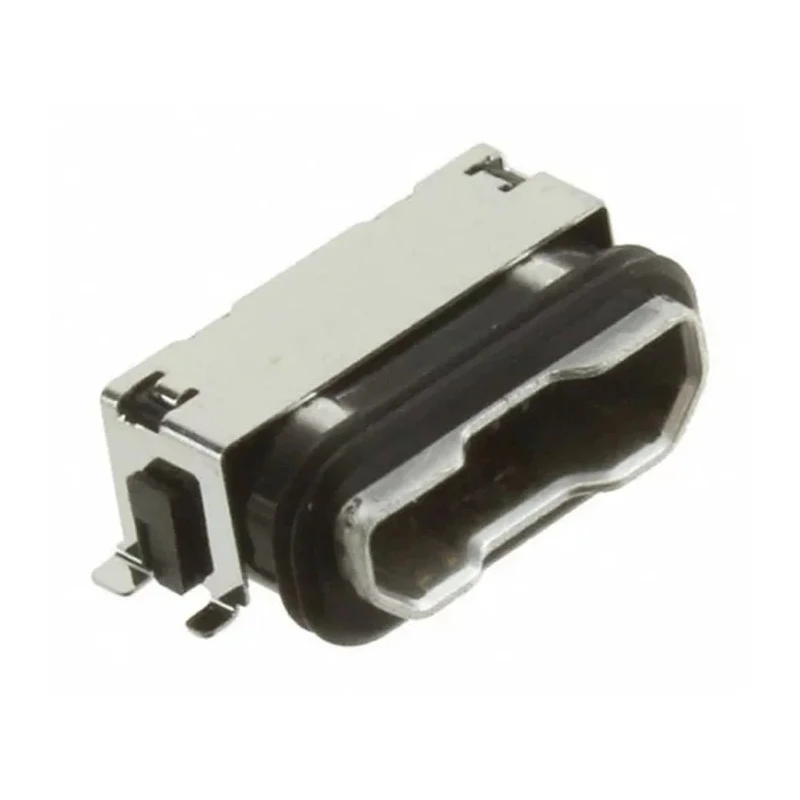

JST Right Angle Panel Female 1 Port USB Type B Connector IPX7 Waterproof USB 3.1 UB-MC5BR3-SDWP604-4S-TF

JST UB-MC5BR3-SDWP604-4S-TF is a right angle panel female USB Type B connector, rated for USB 3.1 applications and designed to withstand harsh environmental conditions with IPX7 waterproof protection. This waterproof micro USB connector from the UB series incorporates a robust structure featuring a laser welded joint on the shell to prevent damage from wrenching and mechanical stress. The contact material is copper alloy ensuring reliable electrical conductivity and performance.

The connector supports a current rating of 1.8 A and voltage up to 30 V, making it suitable for use in demanding electronic devices. With a minimum operating temperature of −30°C and maximum operating temperature of 85°C, it performs reliably in a wide range of industrial and mobile environments. The solder termination and board guides allow accurate alignment and secure mounting on printed circuit boards.

This USB connector is rated for 10000 insertion and extraction cycles, offering long-term durability and operational reliability. Its right angle orientation and panel mount type allow for efficient space utilization and ease of integration into electronic assemblies.

Typical applications include mobile phones, portable devices, and various mobile equipment requiring secure and waterproof USB connectivity with high data transfer rates in compliance with USB 3.1 standards.

Waterproof to IPX7 rating for protection against water ingress. Supports USB 3.1 specification ensuring high-speed data transfer. Right angle orientation facilitates panel mounting and cable management. Durable construction with copper alloy contacts and 10000 insertion cycles.

Rated for 1.8 A current and 30 V voltage for robust connectivity. Suitable for solder termination providing secure mounting on PCBs. Operates reliably between −30°C and 85°C temperature range. Ideal for mobile phones and other mobile electronic equipment.

Manufactured in Japan ensuring high quality standards. Explore our extensive collection of USB Connectors and electronic components for industrial, mobile, and commercial applications at EnvMart.
