JST Right Angle Panel Female USB Type B Connector IPX7 Waterproof USB 3.1 UB-MC5BR3-SDWP604-4S-TF

Free Delivery in India | Lowest Global Shipping Charges

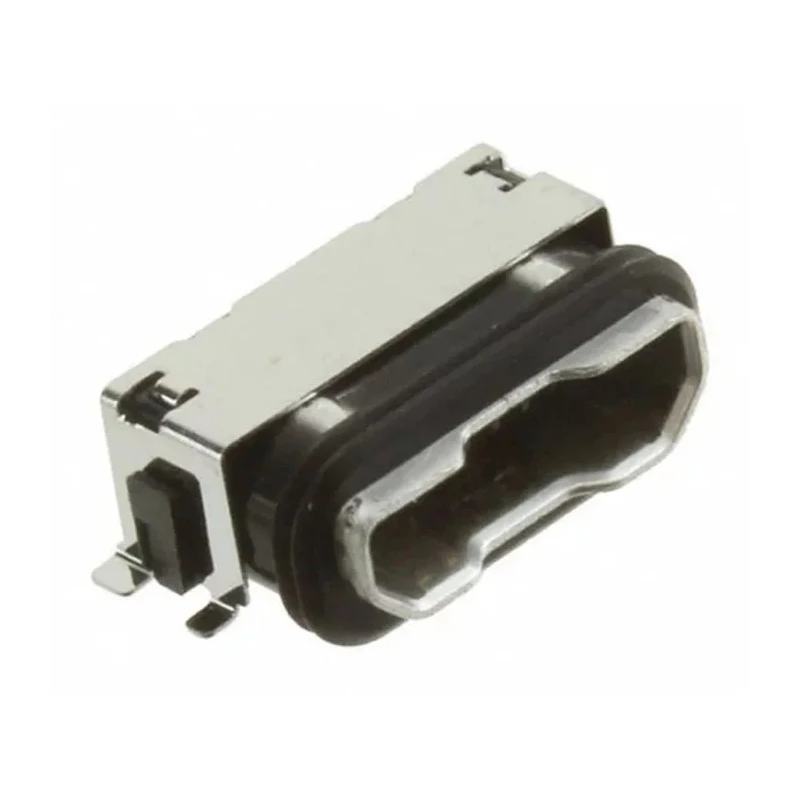

JST Right Angle Panel Female USB Type B Connector IPX7 Waterproof USB 3.1 UB-MC5BR3-SDWP604-4S-TF



Category USB Connector Brand JST Condition New

Specifications

Country of Origin	Japan
Voltage	30V
Brand	JST
Orientation	Right Angle
Current	1.8A
Model	UB-MC5BR3-SDWP604-4S-TF
IP Rating	IPX7
Mount Type	Panel
Contact Material	Copper Alloy
Series	UB
Number Of Ports	1
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-30°C
USB Type	USB Type B
Connector Gender	Female
USB Specification	USB 3.1

Key Features

The connector supports a current rating of 1.8A.
It offers waterproof protection to IPX7 standards according to IEC 60529.
Constructed with durable copper alloy contacts for reliable conductivity.
Rated for operation between -30°C to 85°C temperatures.
Designed for solder termination and robust PCB retention.
Provides a robust build with a laser welded shell joint for enhanced durability.
Supports 10,000 insertion and extraction cycles ensuring longevity.
Ideal for mobile phones and other mobile equipment applications.

Product Description

This USB 3.1 rated connector offers advanced waterproof sealing in compliance with IPX7 as per IEC 60529, making it highly suitable for demanding environments where moisture protection is critical.

The connector supports a maximum current of 1.8 Amps and is designed for operation in temperatures ranging from -30°C to 85°C. It comes with solder termination type and features board guides for precise PCB alignment and solder retention tabs for secure board mounting to improve overall mechanical stability.

Utilizing copper alloy contacts, this connector ensures robust electrical conductivity and durability. It incorporates a laser welded joint around the shell that significantly enhances mechanical strength and resistance to wrenching stress. The design also allows for up to 10,000 insertion and extraction cycles, ensuring extended service life for applications requiring frequent connection and disconnection.

The UB series from JST is widely favored for its waterproof micro USB connectors, specifically designed for compact mobile devices such as smartphones and various portable equipment. Its panel mount and right angle orientation facilitate versatile mounting options and space-saving configurations on electronic equipment.

The IPX7 waterproof rating ensures protection against immersion up to 1 meter depth for 30 minutes. Board guides enhance PCB alignment accuracy during assembly. Solder tabs provide extra stability and retention on PCB to withstand operational vibrations.

The robust construction with a welded shell resists mechanical damages and extends durability. Reliable electrical contact is assured by copper alloy contacts that reduce resistance and wear.

Manufactured in Japan, this connector upholds stringent quality and reliability standards, making it suitable for industrial, electronic mobile, and commercial electronic applications where secure USB connections are essential.

Explore more quality USB Connectors and electronics components from JST and other top brands on EnvMart, your industrial sourcing partner.
