Molex PCB Header Right Angle Surface Mount 10 Contacts 3 mm Pitch 2 Row Shrouded 43045-1010

Free Delivery in India | Lowest Global Shipping Charges

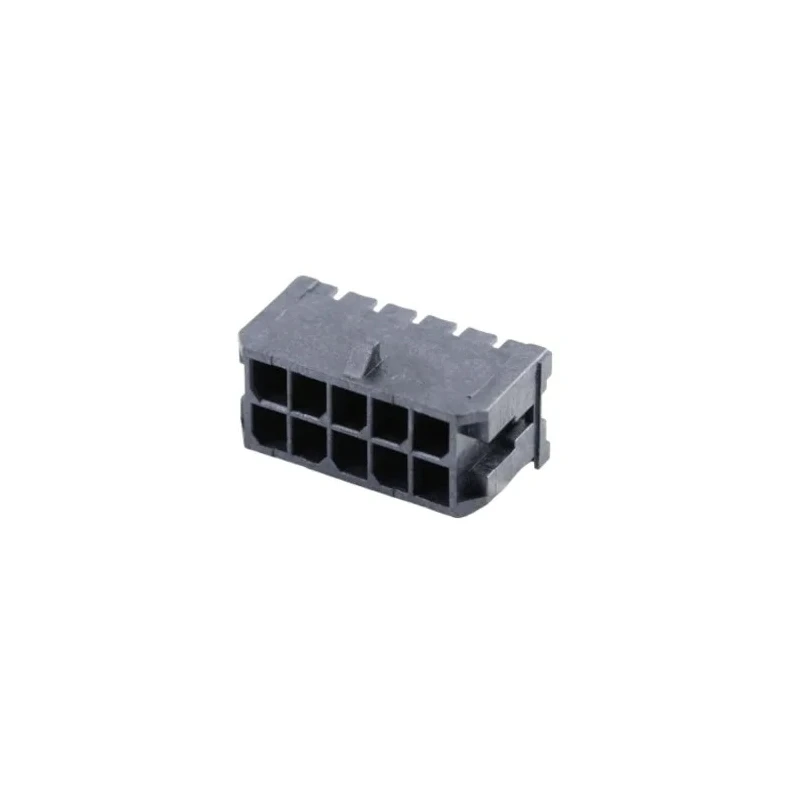

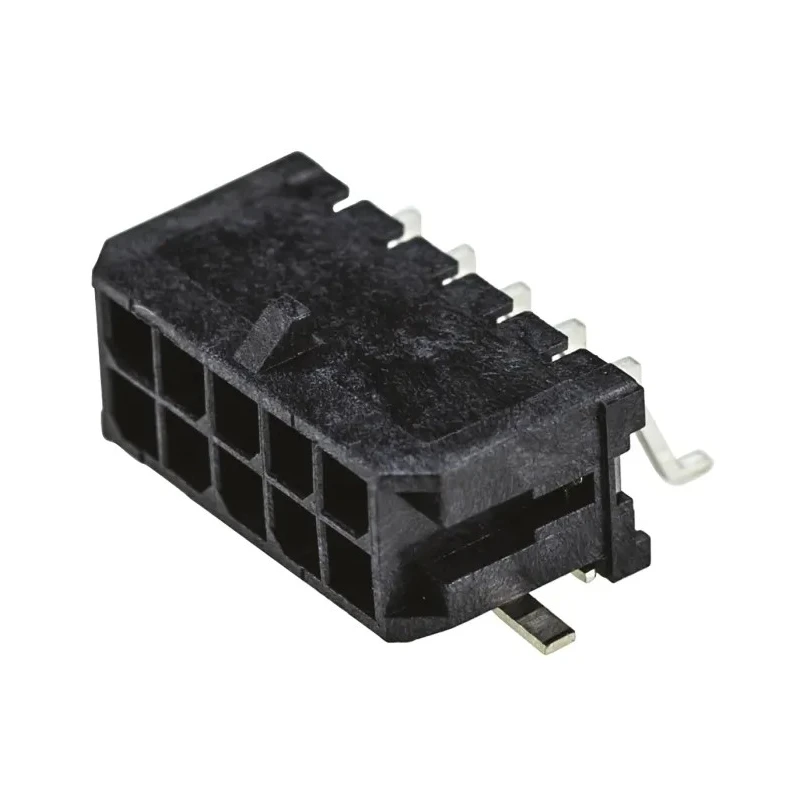

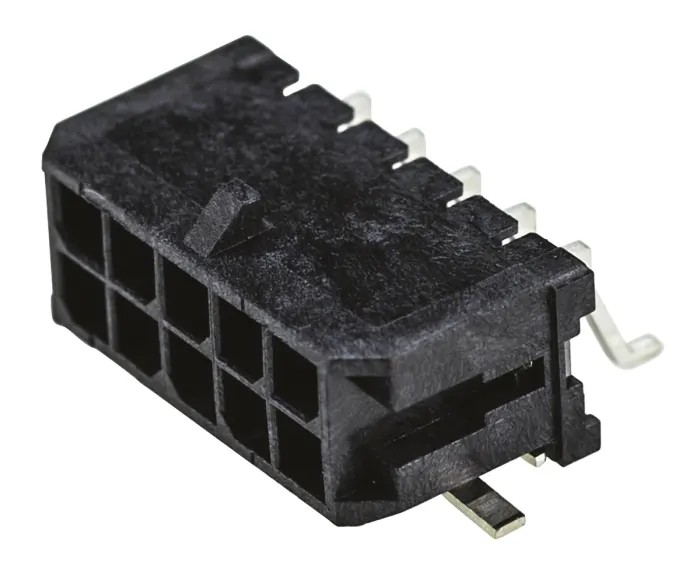

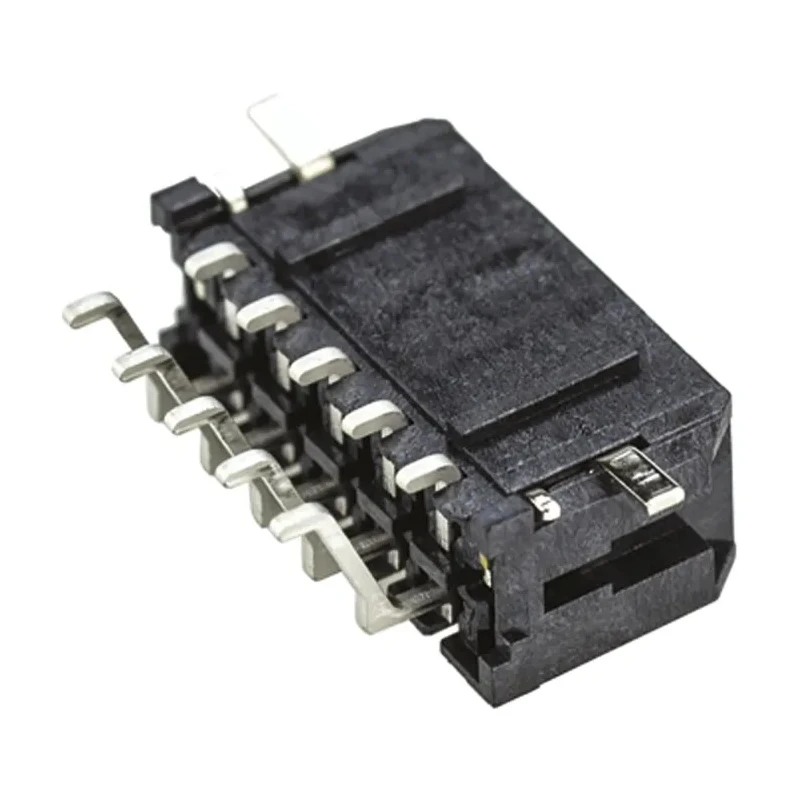

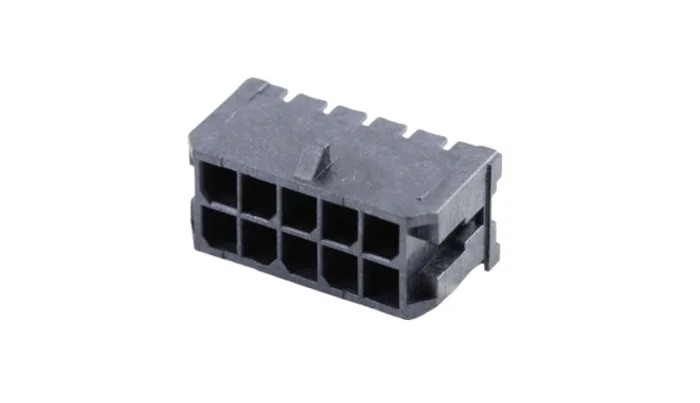

Molex PCB Header Right Angle Surface Mount 10 Contacts 3 mm Pitch 2 Row Shrouded 43045-1010

Name: Molex PCB Header Right Angle Surface Mount 10 Contacts 3 mm Pitch 2 Row Shrouded 43045-1010
Brand: Molex
SKU: 206567



Category PCB Headers Brand Molex Condition New

Specifications

Country of Origin	India
Voltage	600V
Brand	Molex
Orientation	Right Angle
Current	8.5
Mount Type	Surface
Housing Material	Thermoplastic
Contact Material	Brass
Series	43045
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-40°C
Number of Rows	2
Pitch	3mm
Contact Plating	Gold
Number of Contacts	10
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Mating Pin Length	3mm

Key Features

The shrouded design protects pins from damage during connection and insertion.
Gold plated brass contacts offer excellent conductivity and corrosion resistance.
Supports high current of 8.5A for robust power transmission.
Right angle orientation improves space efficiency on printed circuit boards.
Rated for 600V maximum voltage ensuring safety in high voltage applications.
Suitable for surface mount solder termination providing secure placement.
Operates safely between -40°C and 125°C temperature range.
Designed for up to 30 mating cycles for durability in frequent connect/disconnect situations.

Product Description

The Molex 43045-1010 PCB Header is a high-performance right angle connector designed for surface mount applications. This connector features a 3 mm pitch with 10 male contacts arranged in two rows and a shrouded housing made of thermoplastic for enhanced mechanical protection.

The brass contacts are gold plated to ensure reliable conductivity and corrosion resistance, supporting a current rating up to 8.5 Amps and a maximum voltage of 600 Volts. The design is optimized to resist glow wire effects and withstand operating temperatures from -40°C to 125°C making it suitable for demanding environments.

The right angle orientation allows efficient use of PCB space, making it excellent for applications in power management systems, automation devices, automotive electronic control units, and other electrical equipment requiring secure wire-to-board connections.

This connector utilizes surface mount solder termination ensuring a robust mechanical and electrical connection on printed circuit boards. Its shrouded design improves usability by preventing pin damage and misalignment during mating, contributing to consistent reliable performance for up to 30 mating cycles.

The shrouded design safeguards sensitive pins from mechanical damage. Gold plating on brass contacts provides excellent electrical conductivity and corrosion resistance. Supports 8.5 Amp current for power intensive electronic connections.

Right angle form factor optimizes PCB real estate usage. Rated for 600 Volts to ensure safe operation in high voltage environments. Thermoplastic housing offers durable mechanical protection. Surface mount solder termination facilitates reliable board connections.

Operating temperature range from -40°C to 125°C for versatile applications. Up to 30 mating cycles ensure longevity in frequent use scenarios.

This product is ideal for industrial, manufacturing, automotive, and electronic assembly applications where reliable, high-current, and high-voltage PCB connections are critical. Explore more connectors in this category at EnvMart for your specific electronic component needs.
