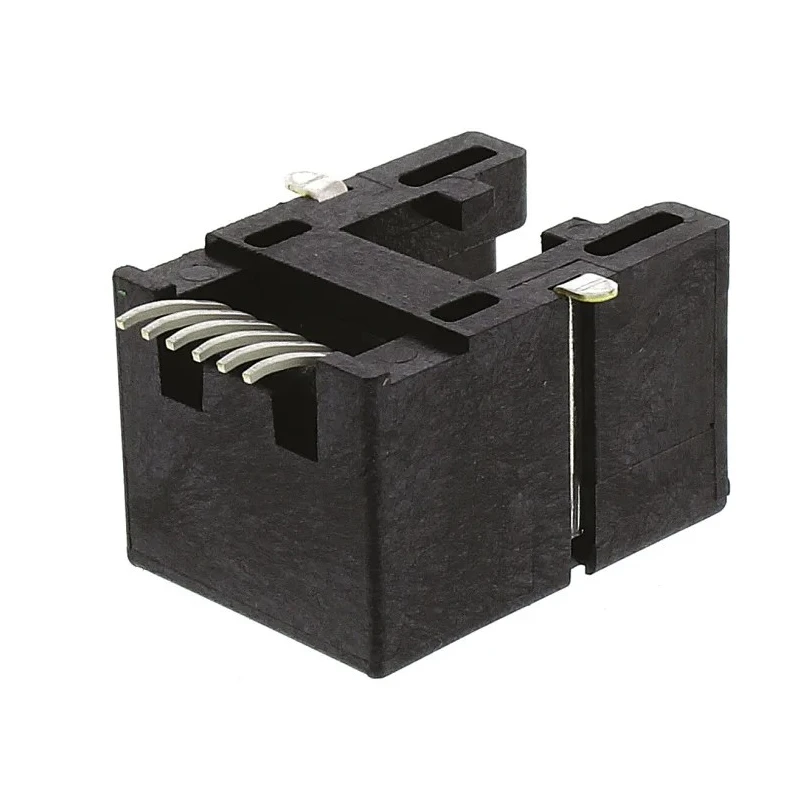

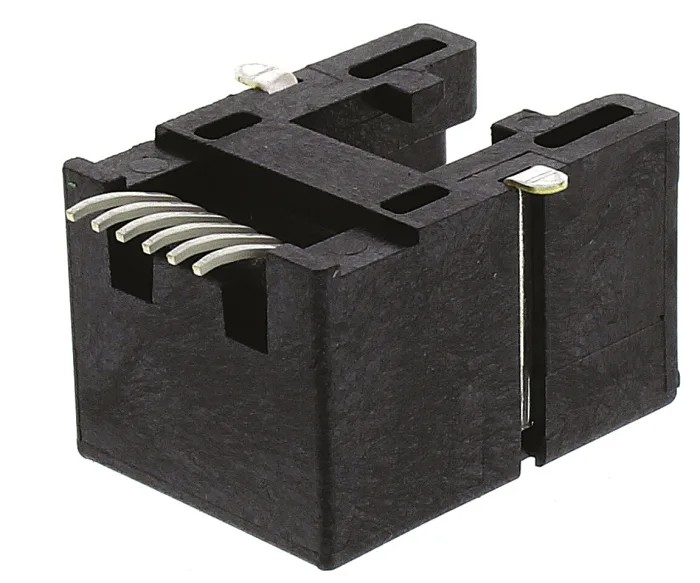

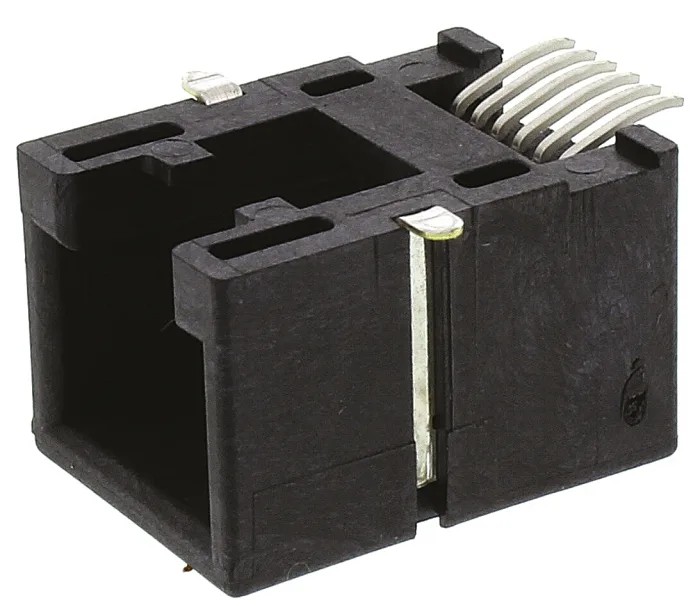

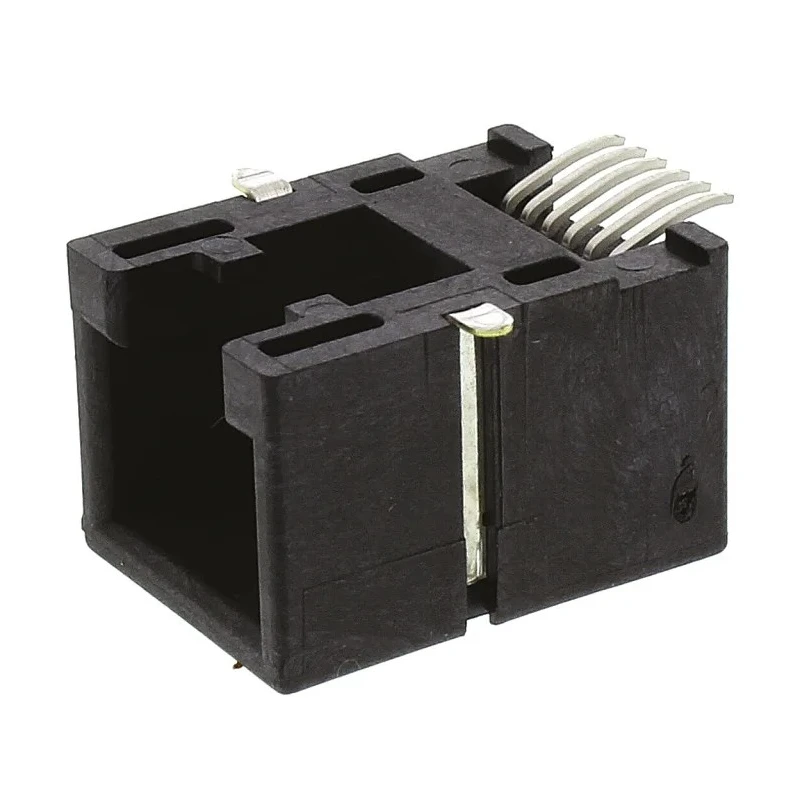

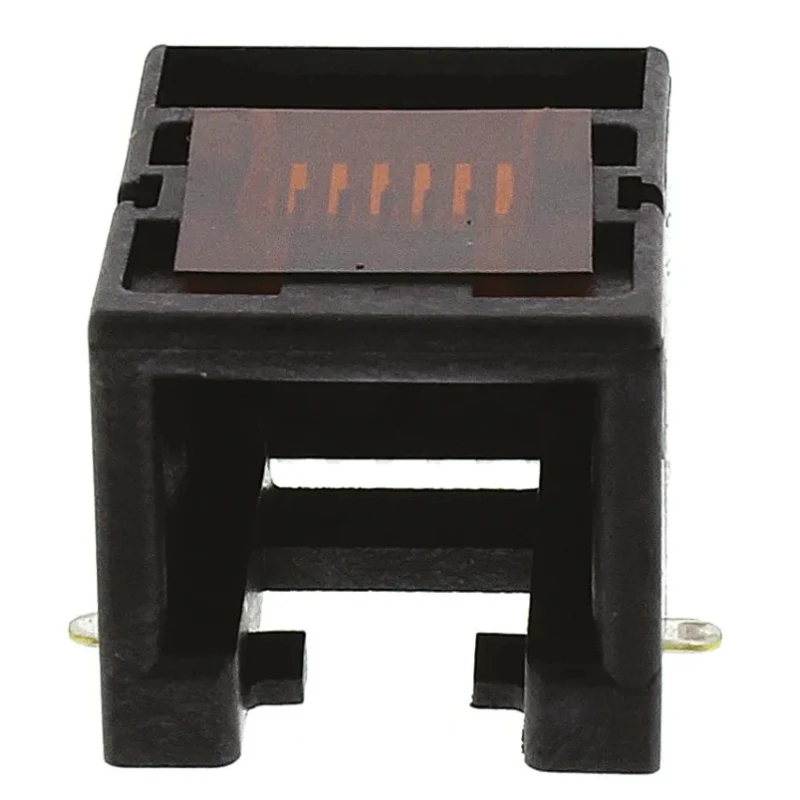

Molex RJ12 Modular Jack 6 Way Female Surface Mount Cat3 UTP Shielded Right Angle Connector

Free Delivery in India | Lowest Global Shipping Charges

Molex RJ12 Modular Jack 6 Way Female Surface Mount Cat3 UTP Shielded Right Angle Connector

Name: Molex RJ12 Modular Jack 6 Way Female Surface Mount Cat3 UTP Shielded Right Angle Connector
Brand: Molex
SKU: 184666
Price: 3.08 USD
Availability: InStock



Category Connector Brand Molex Condition New

Specifications

Country of Origin	India
Brand	Molex
Orientation	Right Angle
Length	13.21mm
Model	RJ12
Depth	18.1mm
Connector Type	Modular Jack
Number Of Ways	6
Width	11.5mm
Mount Type	Surface
Contact Material	Brass
Series	85502
Number Of Ports	1
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
Shield Type	UTP
Contact Plating	Gold over Nickel
Connector Gender	Female
LAN Category	Cat3
Ethernet Connector Type	RJ12

Key Features

Designed for Cat3 Ethernet applications with 1 port configuration.
Surface mount installation suitable for PCB mounting.
Constructed with brass contacts plated gold over nickel for durability.
Right angle modular jack design optimizes space on PCBs.
Operates reliably between -40°C and 85°C temperature range.
UTP shielding provides effective interference protection.
Compact dimensions with 18.1 mm depth, 13.21 mm length, and 11.5 mm width.
Termination via solder ensures stable connections.

Product Description

Molex RJ12 85502-5007 female modular jack connector is engineered for networking and telecom applications requiring Cat3 LAN category compatibility. The single port, 6 way contact design offers reliable connections with enhanced interference shielding due to its UTP construction and right angle orientation, enabling space-saving PCB layouts.

Manufactured with brass contacts plated in gold over nickel, this surface mount modular jack delivers superior contact reliability and corrosion resistance. The connector housing is a low profile black UL 94V-0 thermoplastic designed for durability and industrial use.

Operating temperature range from -40°C to 85°C makes it suitable for diverse industrial and commercial environments including telecommunications, data networking, and electronic component manufacturing. The solder termination type ensures strong mechanical and electrical stability on circuit boards.

Key physical dimensions are a compact 18.1 mm depth, 13.21 mm length, and 11.5 mm width, facilitating integration in dense PCB assemblies. This non-magnetic connector avoids electromagnetic interference, enhancing signal integrity across extended runs.

The Molex 85502 series connectors are trusted in industrial automation, telecommunications infrastructure, and electronics design due to their low profile and high durability standards. Their compliance with Category 3 Ethernet standards makes them ideal for legacy network and telecom systems.

Designed for Cat3 Ethernet applications with 1 port configuration. Surface mount installation suitable for PCB mounting. Constructed with brass contacts plated gold over nickel for durability. Right angle modular jack design optimizes space on PCBs.

Operates reliably between -40°C and 85°C temperature range. UTP shielding provides effective interference protection. Compact dimensions with 18.1 mm depth, 13.21 mm length, and 11.5 mm width. Termination via solder ensures stable connections.

Non-magnetic design eliminates electromagnetic disruptions. Part of the 85502 series featuring low profile black UL 94V-0 thermoplastic housing. Explore Molex connectors and similar Ethernet Connectors at EnvMart for a full range of industrial networking components and solutions.
